hand. The appliance will restart after 3 - 5 minutes. If neither of the above helps, the appliance must be inspected by a
technician.
- If the water control light lights up even though the water tank is full, the cause could be air in the system. To bleed the
system, unscrew the water drain plug at the back of the machine and let a few millilitres of water run out. Then screw
the screw back on.

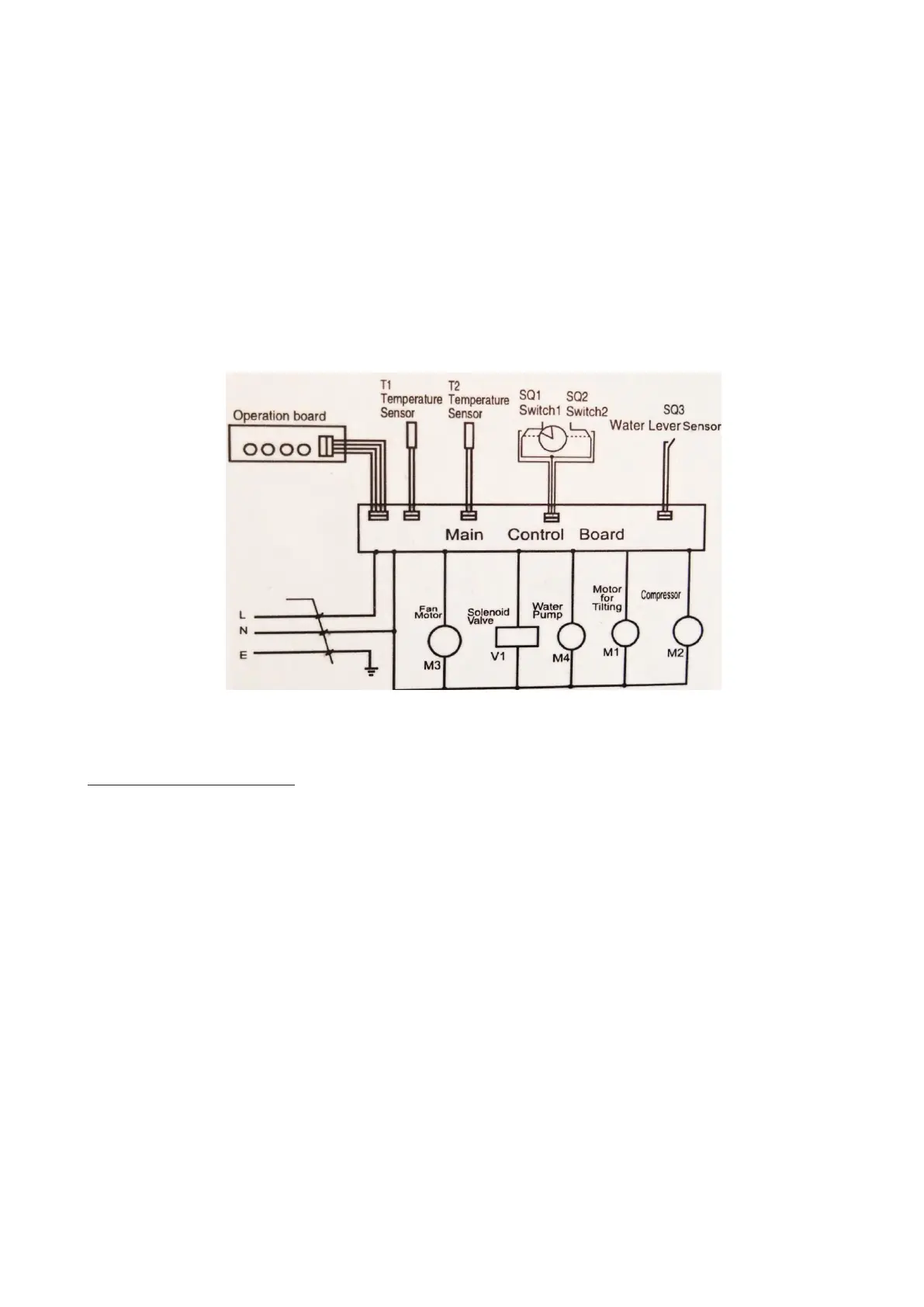

CIRCUIT DIAGRAM
Translation to the wiring diagram:
Operation board Control panel
T1 Temperature Sensor T1 Temperature Sensor
T2 Temperature Sensor T2 Temperature Sensor
SQ1 Switch 1 SQ1 Limit switch for water tray 1
SQ2 Switch 2 SQ2 Switch Limit switch f. water tray 2
SQ3 Water Level Sensor SQ3 Water Level Sensor
Fan Motor Fan motor
Solenoid Valve Hot gas valve
Water Pump Water pump
Motor for Tilting Motor for Tilting
Compressor Compressor
