10

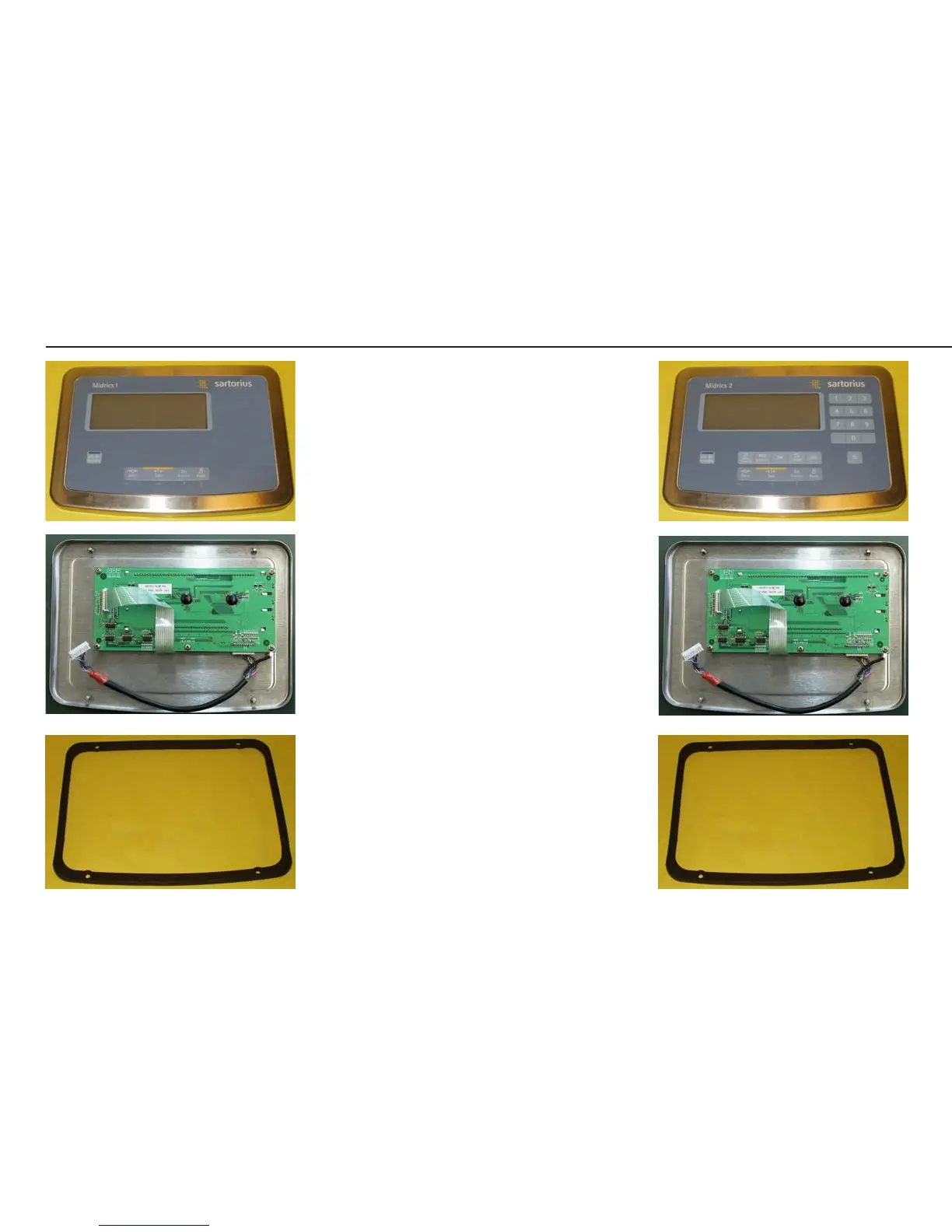

Replacing the Front Panel
In the case of a defective key, keypad
overlay, or display, the entire front panel
must be replaced.
There are two front panel variants, Midrics 1
and Midrics 2. The only difference between
the two is the range of operating keys.
If the indicator housing seal is defective, it
must be replaced. When installing a new
seal, make sure it rests entirely within the
housing and is not caught between the
upper and lower housing parts when you
close the indicator.
Repairing the Midrics Indicator
