18

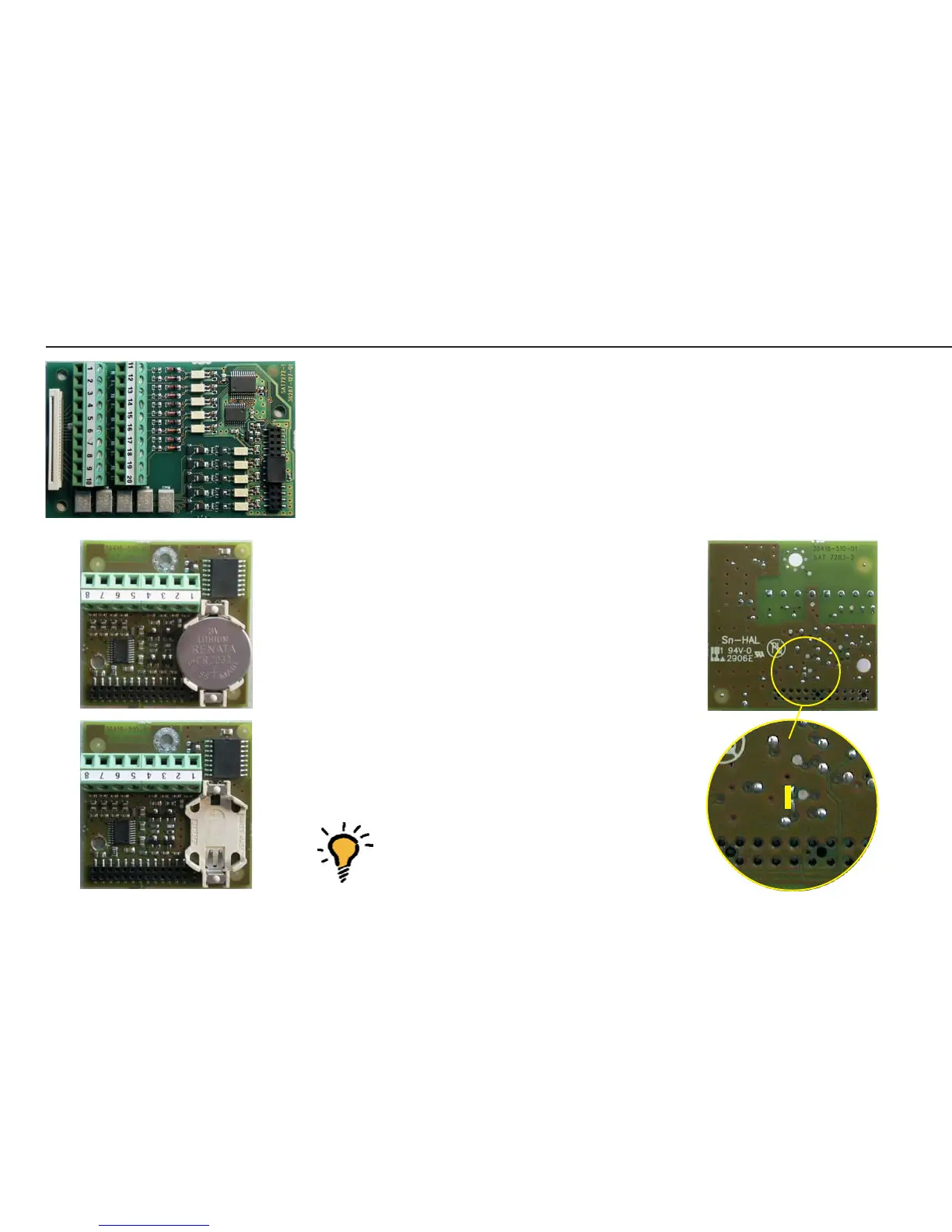

Digital I/O Interface
For digital I/O interface pin assignments,
see page 16.
COM1 Interface With and Without
Clock Chip
For COM1 variant pin assignments, see
page 16.
The COM1 interface is required for
loading software.
To enable loading of software, a solder
bridge must be closed on the back of the
COM1 interface (see illustration on the
right).
Note: Before commissioning the COM
ports, the PCBs (and any required
DIP switches) must be checked for
correct installation and settings.
