20

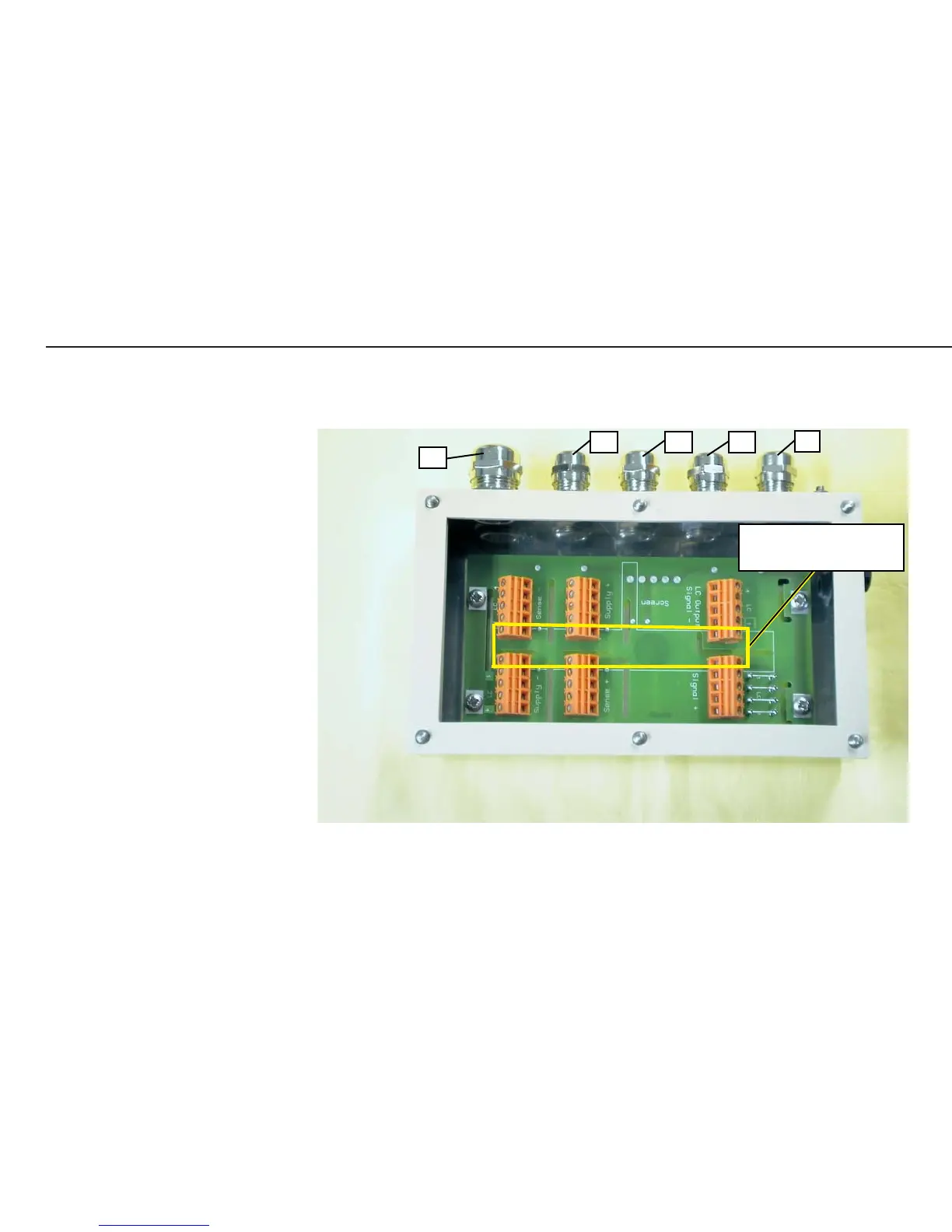

Junction Box 1
Junction box; open.
1.1
Cable to load cell 1
2.1
Cable to load cell 2
3.1
Cable to load cell 3
4.1
Cable to load cell 4
5.1
Connecting cable for A/D
converter / indicator
Adjusting the Weighing Platform
5.1
4.1
3.1
2.1
1.1
Contacts to connect
the cable 5.1
19
21
Table of Contents
Default Chapter
2
Table of Contents
2
Junction Box
2
General Information
4
Service Concept
4
Information
4
Overview of the Models
5
Auxiliary Service Tools and Equipment
5
Accompanying Literature
6
Overview
4
Description of the Equipment
7
Indicators
7
Function of the Switches
8
Menu Access Switch
8
Repairing the Midrics Indicator
9
Repairing the Indicator
9
Replacing the Front Panel
10
Blank Display
11
Replacing the Power Cable
11
Replacing the Power PCB
12
Points of Measurement
13
Replacing the Main PCB
14
Quick-Test of the A/D Converter
14
Pin Assignment Chart
14
Replacing the Main PCB
15
Terminal Assignments in Midrics Indicators
16
Interface Description
17
Interface
17
Analog Interface
17
Digital I/O Interface
18
COM1 Interface with and Without Clock Chip
18
Adjusting the Weighing Platform
19
Junction Box
20
Pin Assignments in the Junction Box 1
21
Junction Box 2
22
Cable from the Load Cell to the Junction Box 2 (Terminals)
23
Cable from the Load Cell to the Junction Box (Terminals)
24
Adjusting the Off-Center Load
26
Setting the Overload Stops
27
Weighing Platforms with One Load Cell: Steel
27
Weighing Platforms with Four Load Cells: Steel
27
Weighing Platforms with One Load Cell: Stainless Steel
28
Weighing Platforms with Four Load Cells: Stainless Steel
28
Repairing the Weighing Platforms
29
Replacing the Connecting Cable
29
Replacing Load Cells
30
Torque Values
31
Replacing the Load Cell Foot
32
Color Codes of the Wiring for Weighing Platforms, Models MAPS
32
Wiring Diagram for the Load Cells (Junction Box 2)
33
Connections in the Junction Box for the Load Cells
33
Connections in the Junction Box for the A/D Converter
33
Service Specifications
34
Service Specifications MW
34
Load Cells
34
Service Specifications MW...-LCE / MAP
35
Service Specifications MW
36
Service Specifications MW
37
Adjusting the Weighing Platform
38
Load Cell Connection (Color Assignments)
38
Determining the Resistance for Adjustment of the Off-Center Load
39
Determining Resistance Values
39
Sample Calculation Based on Diagram 2
40
Resistors Available in the E24 Series (+/- 5%)
41
Selecting the Adjustment Resistor
42
Adjusting Off-Center Load with 1000 Ohms Initial Resistance
42
Selecting the Adjustment Resistor
43
Diagram 1
43
Adjusting Off-Center Load with 350 Ohms Initial Resistance
43
Diagram 2
44
Adjusting Off-Center Load with 1000 Ohms Initial Resistance
44
Error Codes
45
Inf 01
45
Description of the Equipment
48
Activating the Service Mode
48
Configuring the A/D Converter
50
