12 Operating Manual EVO1X | LAB1X

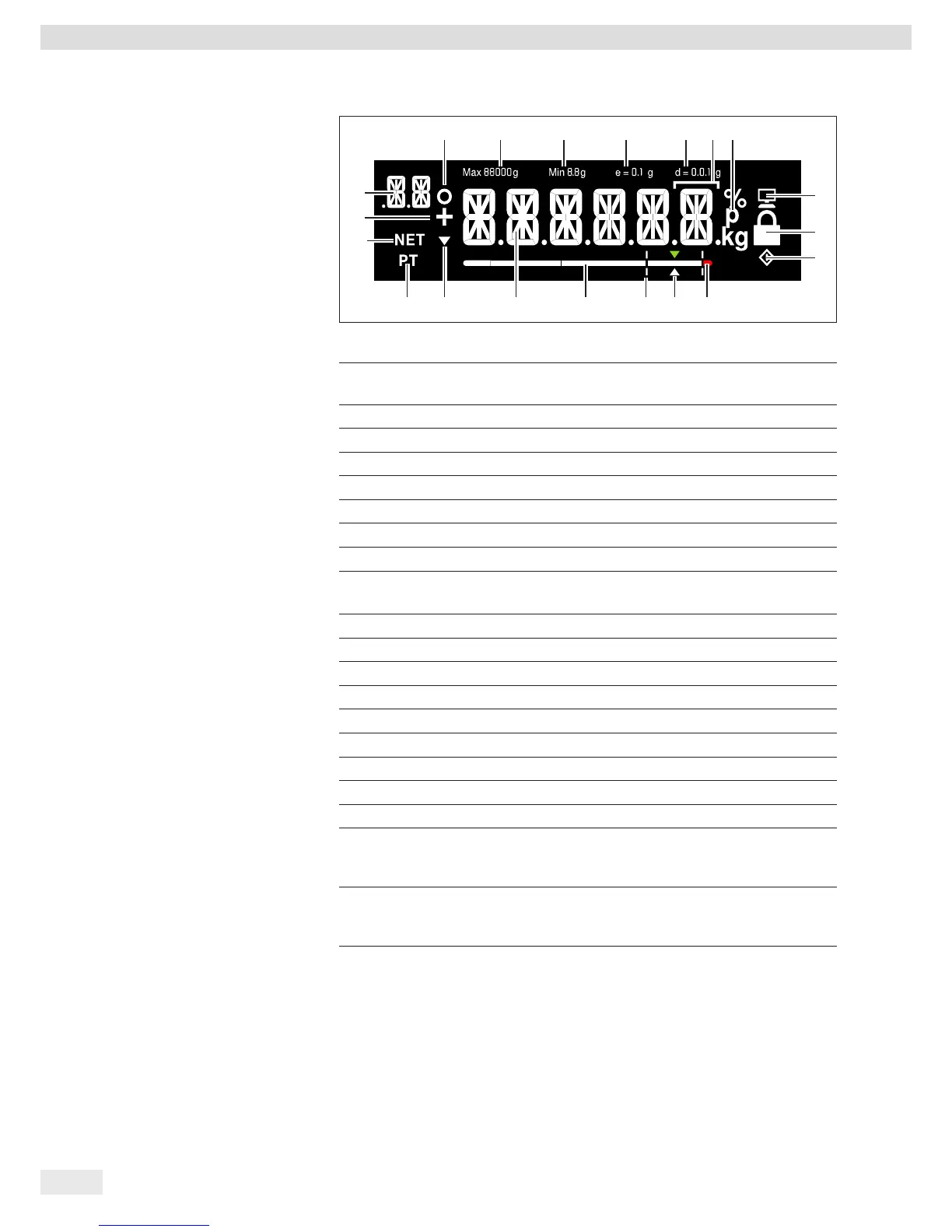

Device Overview
Item Function
1 Activated function in the menu list (see Chapter 3.5, page 13)
Symbols for zero range (verified models only)
2 Maximum weighing range
3 Minimum load Min (verified models only)
4 Verification scale intervals (verified models only)
5 Readability of the scale (scale interval d)
6 Weight unit and stability indicator
7 Communication with the PC
8 Activate “LOCK” function, or function activated
9
l symbol: Indicates that an internal process is in progress
For verified models: Indicates an invalid weight value
10 Tolerance range has been exceeded
11 Target value for bar graph
12 Tolerance range
13 Bar graph: Scaled display showing capacity usage (in percent)
14 Fourteen segment display
15 Trend display
16 Info on weight entry via application keypad (preset tare)
17 Net value
18 Plus (or minus) sign of the weight
19 Display:
− SETUP level
− Component/factor for paint-mixing applications
20
In verified mode for devices where e ≠ d: The frame indicates a scale
interval (standard scale interval d is smaller than verification scale
interval e)
19
18
17
16 15 14 13 12 10
7
8
9
11
1 2 3 4 5 20 6
