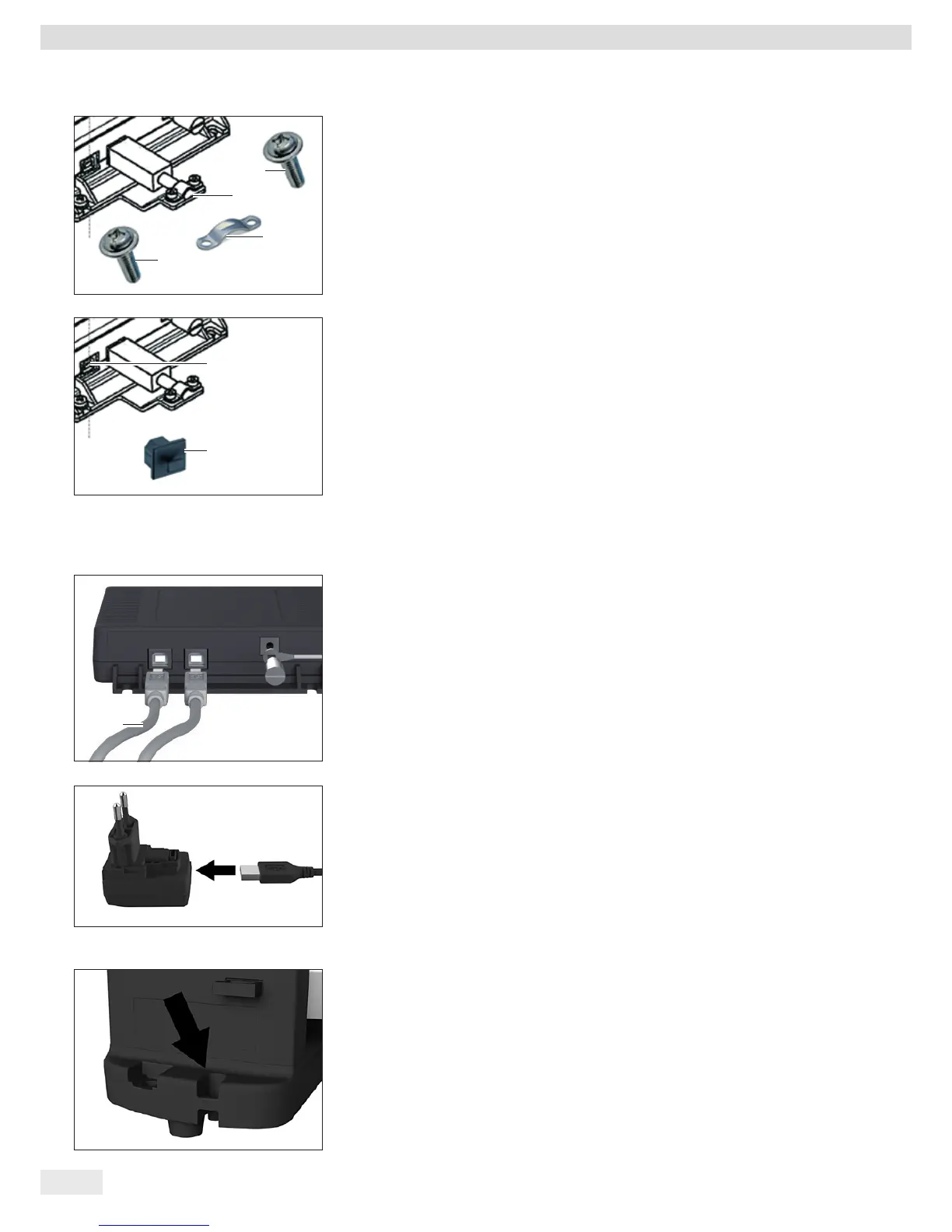

22 Operating Manual EVO1X | LAB1X
Installation
t Attach the USB cable to the strain relief (3) using the clamp (1) and the two
screws (2).
t Use the protective cap (2) to seal up the left-hand USB port (1).
Connecting the AC Adapter (Optional); not for YCO14-Y when Installed in
Zone 2 or Division 2 Potentially Explosive Areas
t Insert an additional USB cable (2) into the ex-link converter.
t Insert the USB cable into the YPS06-USB AC adapter.
t Plug the AC adapter into a wall outlet (supply voltage).
t Insert the USB cable into the YPS06-USB AC adapter.
t Plug the AC adapter into a wall outlet (supply voltage).
4.5 Anti-theft Locking Device
t If required, secure the scale at the back.
