• ORIENTATION: Current pointing angles.
• MAGNETIC FIELD: Measured magnetic field around the terminal. NOTE: High readings (above
100 µT) is an indication that pointing will be significantly affected and an alternative location
should be found.
• CALIBRATION: If this button is present it means that the terminal has not been calibrated
with the updated calibration sequence. Please click the button and follow the instructions.
• POSITION: Terminal’s current latitude/longitude.
• METHOD/GPS STATUS: Whether coordinates have been entered manually and built-in GPS is
disconnected.
• GPS SATELLITES: Number of visible GPS satellites.
• ACTIVE WARNINGS: Indicates whether system is experiencing any errors. GPS status
monitors the built-in GPS. BUC/LNB status monitors the uplink/downlink (Block
UpConverter/Low Noise Block downconverter).
• CALENDAR: displays current date and time

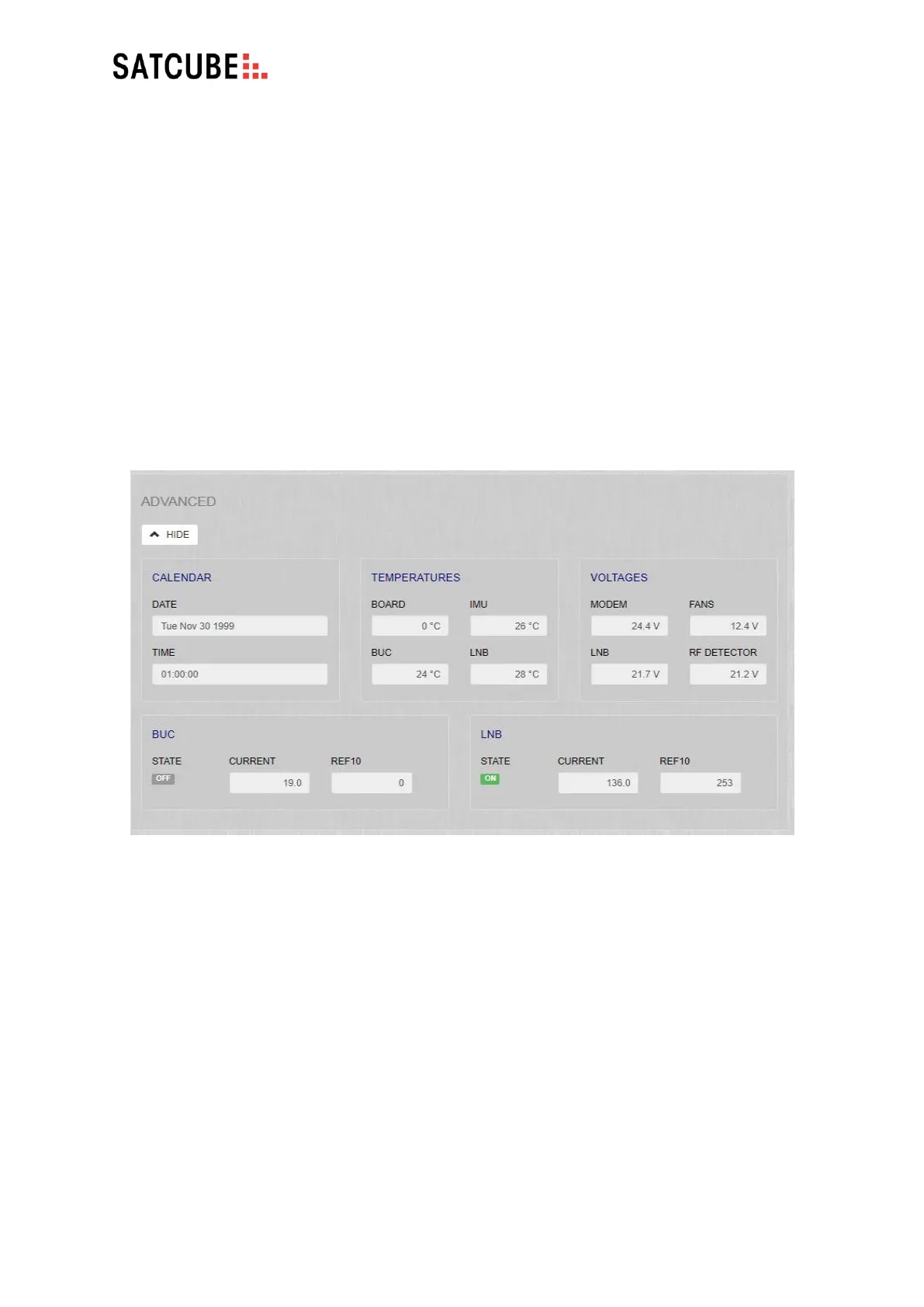

• TEMPERATURES: Current temperatures for system processor, Inertial Measurement Unit,
BUC and LNB.
• VOLTAGES: Current voltages for modem, cooling fans, LNB and RF detector.
• BUC and LNB: indicate whether uplink/downlink are active together with current values for
Current and REF10.
