Embedded Network Topology
The Satcube Ku terminal's on-board components communicate on the 8-address subnet
192.168.222.216/248. The allocation of the different addresses can be found in Table 3. A network
topology map can be found in Figure 38. All the switches are completely transparent to the network
and allows all traffic. VLAN traffic out from the modem must pass through ethernet port 2 as the
WIFI module blocks VLAN tagged traffic.

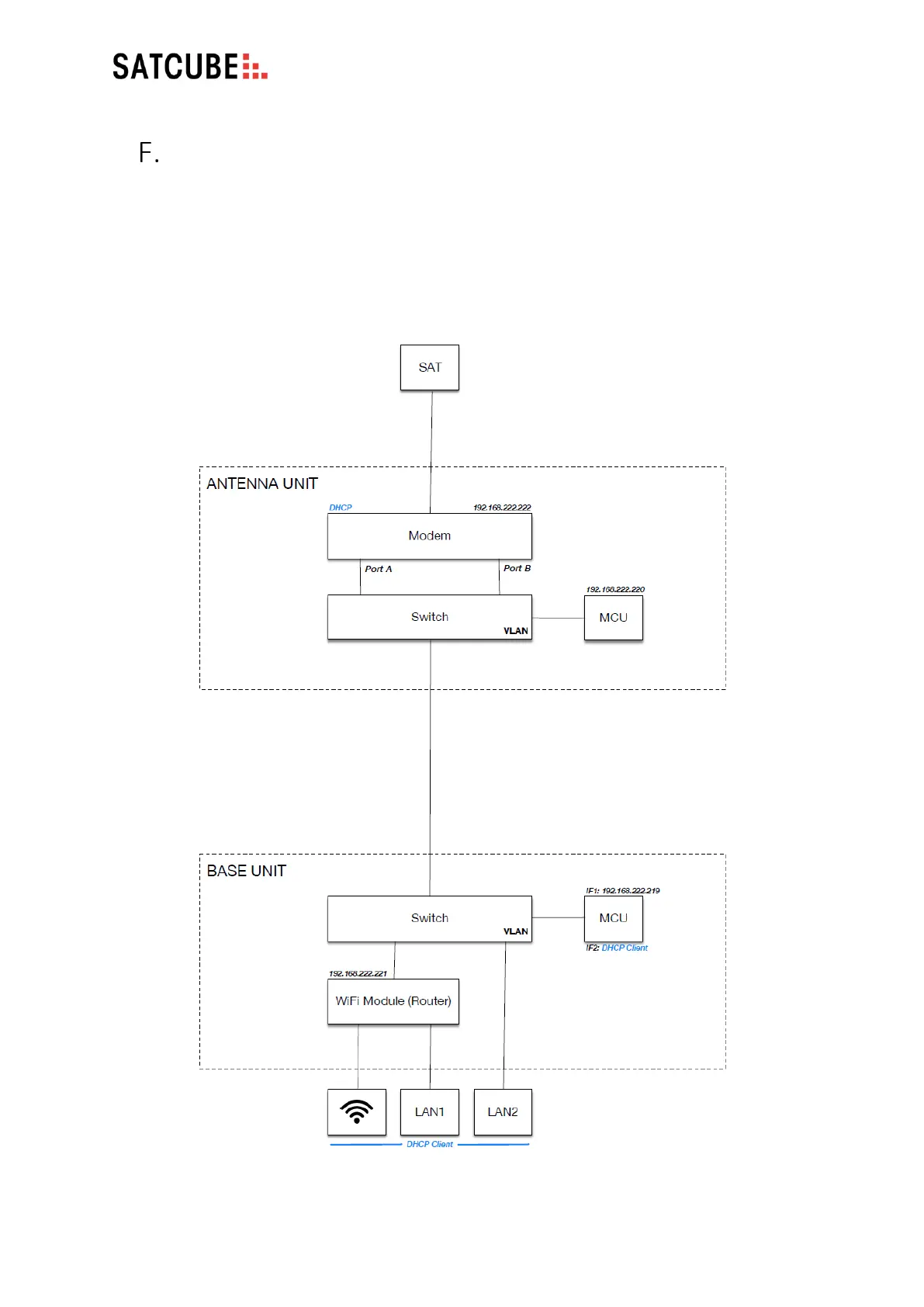

Figure 38 Network topology map showing the embedded system with switches and interface.
