Interface
• Power input
The power input is located at the front right side of the terminal, covered by a rubber
protection.
* Pins are rated for 7A each pin, 2+2 pins for DC power. Cable is equipped with a 16A fuse of
GBC type, according to DIN 72581, size 25x6mm.
Item
Specification
AC input range
100 to 240 VAC, 47 – 63 Hz
Power consumption
Up to 150 W
DC input voltage
24 VDC
DC connector type
Circular push pull connector
DC connector male type
Crimp contact
Current rating
7+7 A*
Pin count
4
Max. operating temperature
+ 120 °C
Min. operating temperature
- 20 °C
Connector IP grade
IP 68

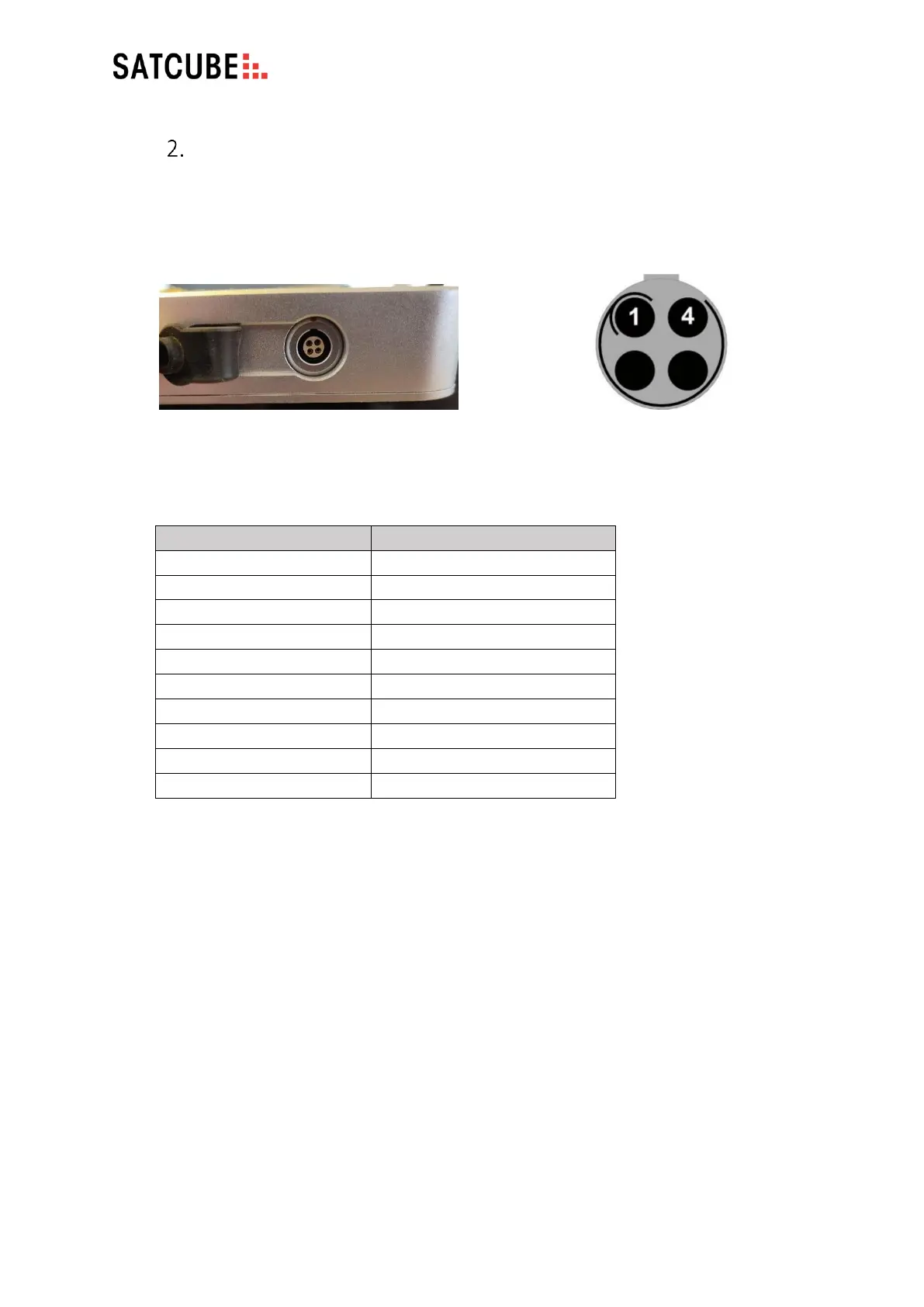

Figure C2 DC connector pin layout
(terminal view).
Figure C1 DC power input interface.
