SATEL SLIM-PIR-PRO 5

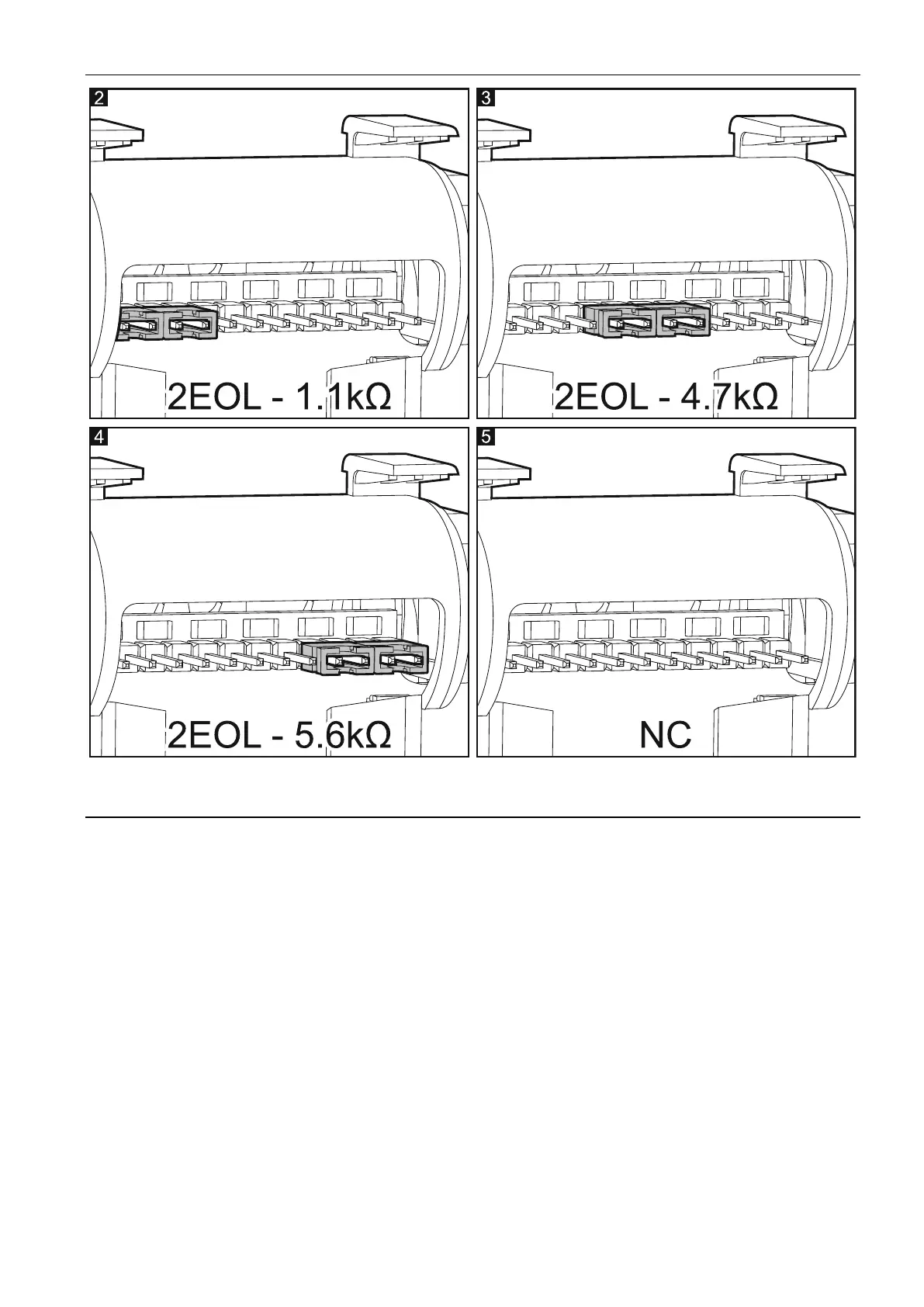

4. Terminal block
The terminal block is located on the enclosure base (Fig. 6). To get access to the terminals,
you must remove the electronics module (Fig. 8).
AM - anti-mask output (NC relay).
TMP - tamper output (NC relay).
NC - alarm output (NC relay).
COM - common ground.
+12V - power input.
LED - enable/disable the LED indicators.
SRVC - enable/disable the detector configuration mode.
