✓ Default screen → Toll = 0
The Toll = 0 screen is a special case. All fields are filled out as described above, but the basic price
per km or unit is set to 0.00 €. This screen is used if a toll object with an amount 0 € is defined.

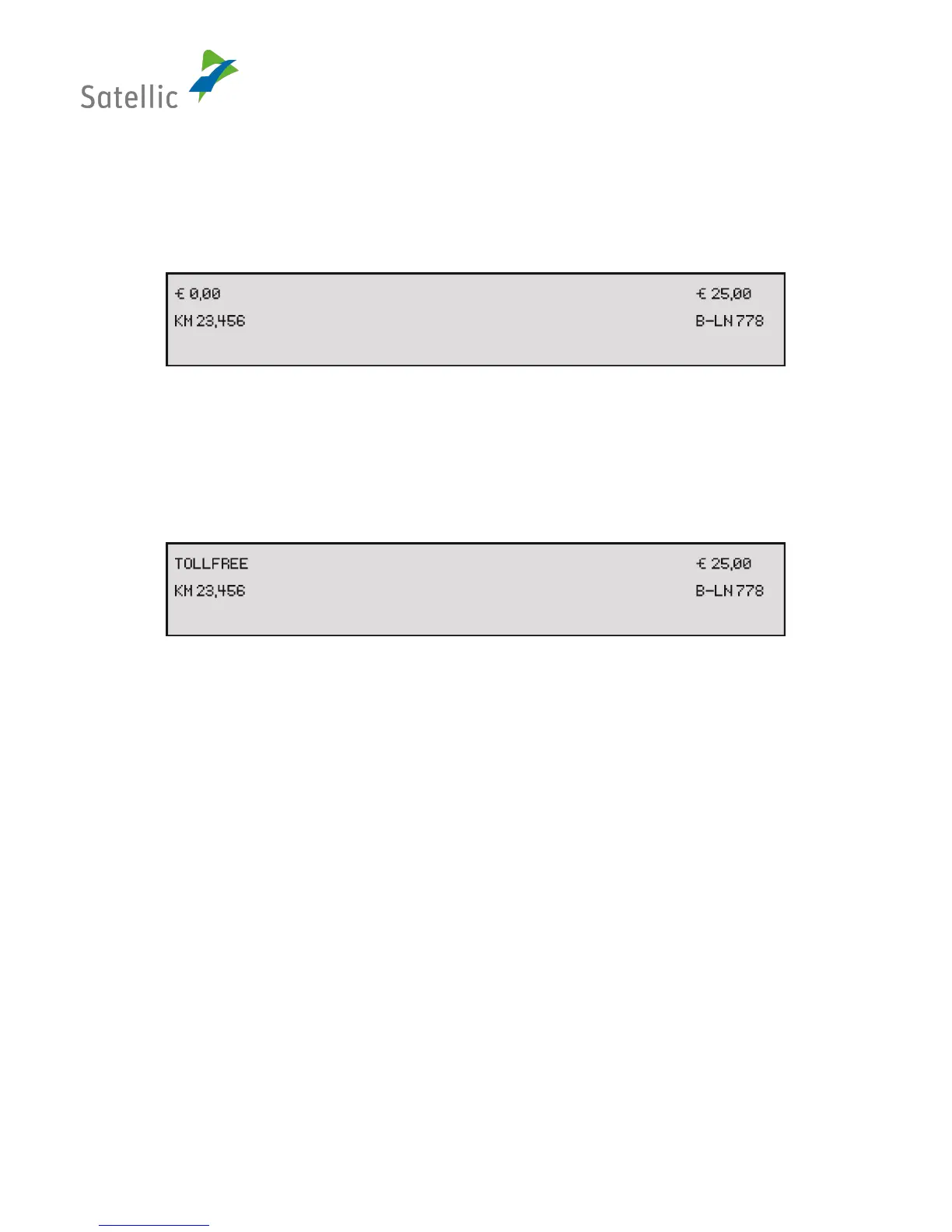

Figure 3: Default Screen Toll = 0
✓ Default screen → Toll-free
The tollfree screen is used for roads, which are not subject to toll. If the vehicle is driving in a
tollfree area, the fields “Toll since 00:00” and “Km since 00:00” show the last known value from
the toll network until daily break times.
Figure 4: Default Screen Toll-free
