EXT CONNECTOR
The EXT Port pin-out information for the RFID has changed to accommodate the addition of a “tag error” output.

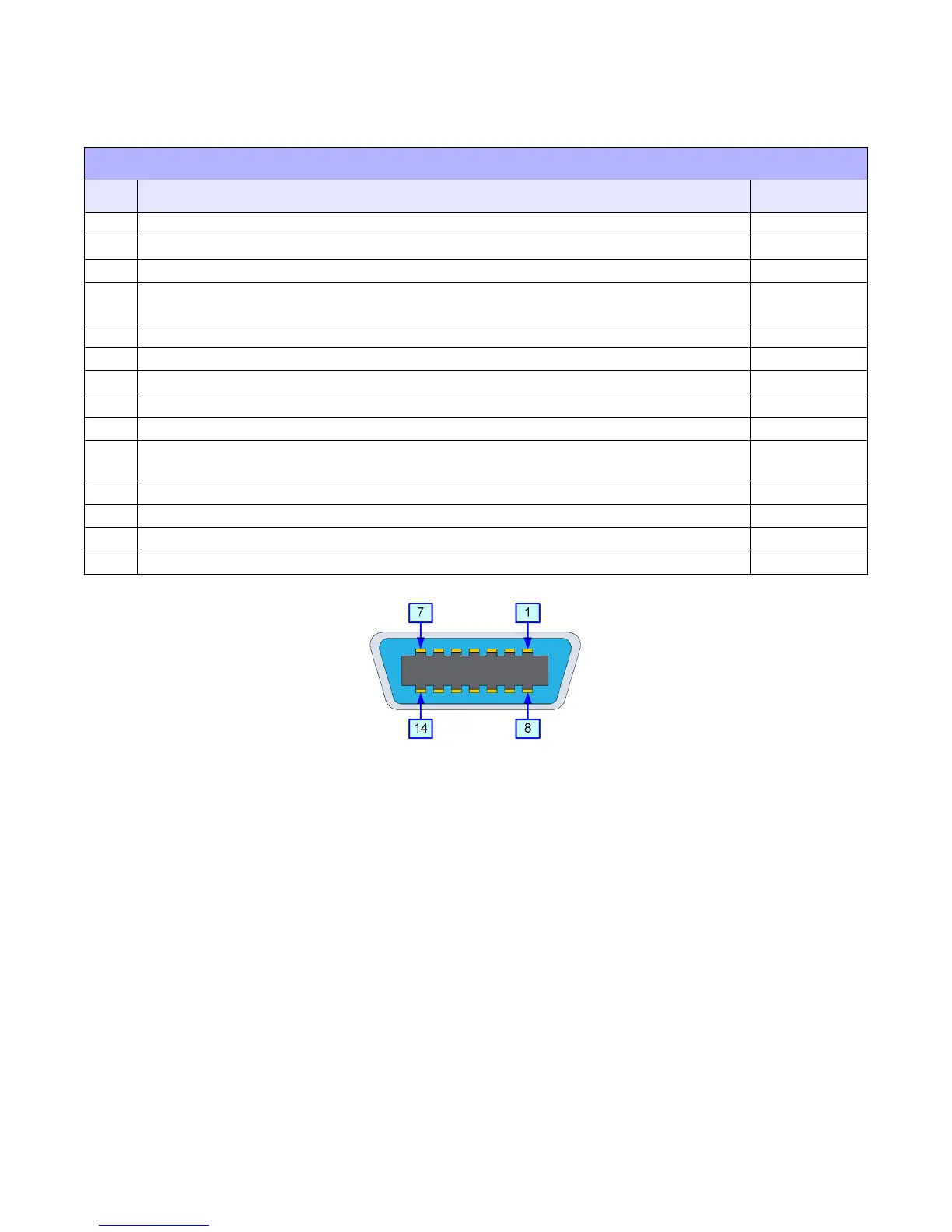

Figure 7, EXT Connector
PIN ASSIGNMENTS
PIN DESCRIPTION DIRECTION
1 Media Out - Pin goes low (0V) when label or ribbon is out. Output
2 Signal Ground Reference
3 RFID Tag Error - Pin goes low (0V) when a bad RFID tag is identified. Output
4 Printer Error - Pin goes low (0V) when the printer detects an error condition such as head open,
receiving buffer full or when the user specified number of RFID errors has been reached.
Output
5 Print Start - The printer will print one label when this pin is pulled to ground. Input
6 End Print - Used to drive external devices requiring synchronization with the print cycle. Output
7 Reprint - Prints a duplicate of the last label when this signal is received. Input
8 Reserved. Input
9 Offline - Pin goes low (0V) when the printer is offline. Output
10 Ribbon Near End - Pin goes high when the amount of ribbon on the unwind shaft is
approximately 46 feet (14 m). The output will be low when the ribbon is gone.
Output
11 Reserved Output
12 +24 +/- 10% @ 2A - Power for external devices. Output
13 Vcc - +5V Output
14 Frame Ground Reference
