ERROR & RESET TIMING
RFID tag and machine error signals are output concurrently when reaching the specified value of the reprint
counter. The machine error is a constantly level output. When an ignore command of the RFID tag error is
specified, reprint is automatically performed.

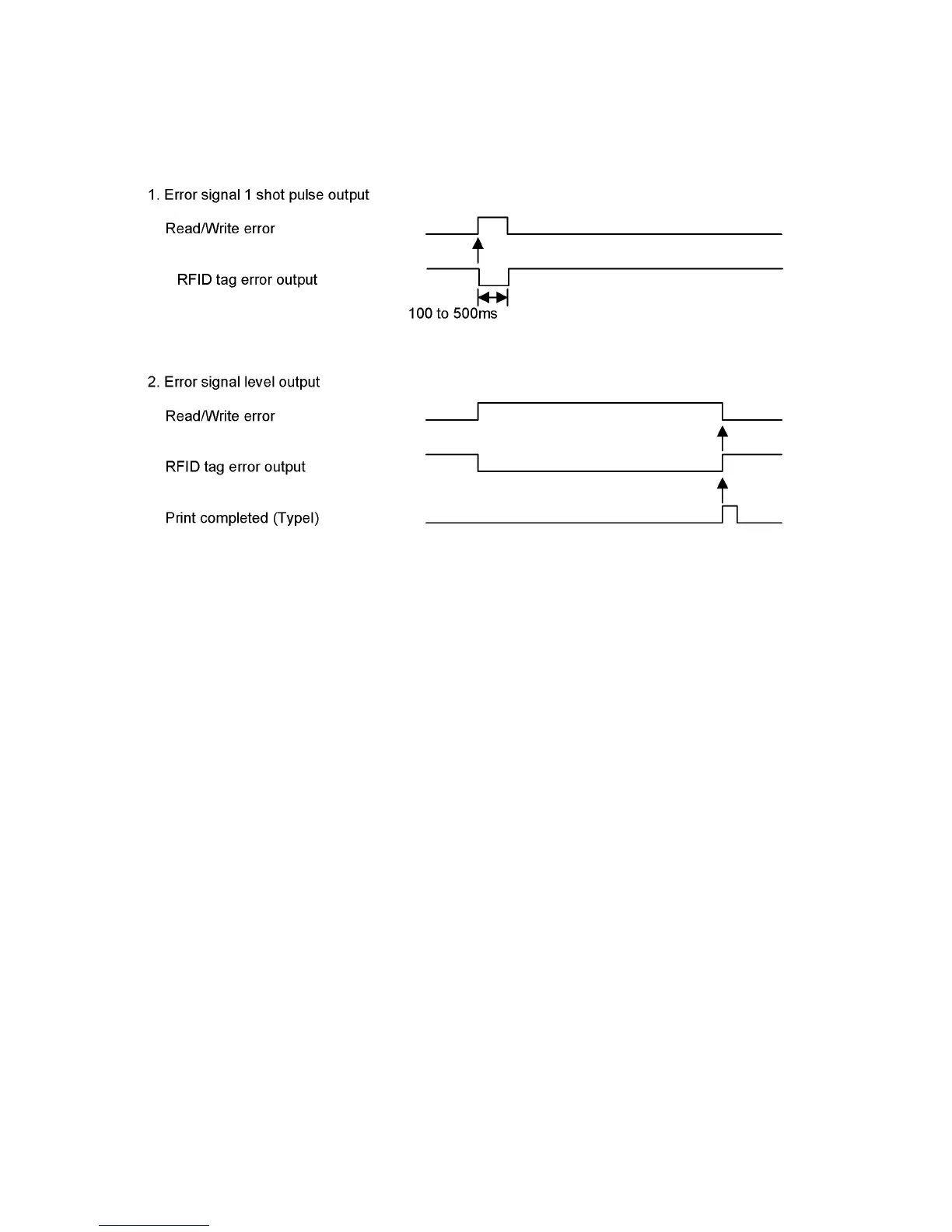

Figure 9, Error Signal Output
