Sauder 416407 - Page 9

Step 5
416407www.sauder.com/service
Page 9
Arrow
Minimum
190 degrees
Maximum
210 degrees
B2
E
C2
F
A2
1R
å

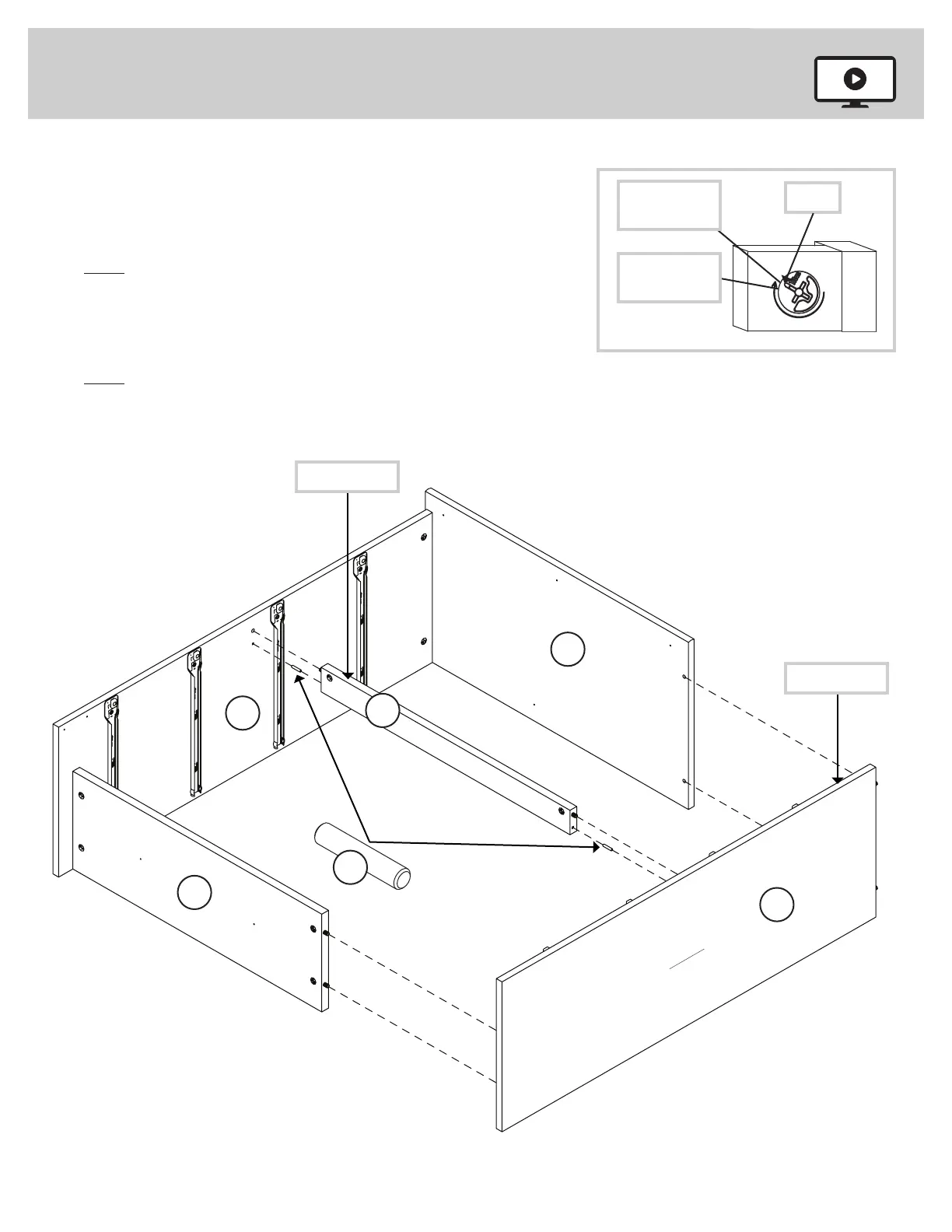

Insert two METAL PINS (1R) into the FRONT BRACE (F).
å
Fasten the FRONT BRACE (F) to the LEFT END (B2).
Tighten the HIDDEN CAM.
å
NOTE: Be sure the METAL PIN in the FRONT BRACE
inserts into the hole in the LEFT END.
å
Fasten the RIGHT END (A2) to the TOP (C2) and
BRACES (E and F). Tighten fi ve HIDDEN CAMS.
å
NOTE: Be sure the METAL PIN in the FRONT BRACE
inserts into the hole in the RIGHT END.
Surface without
HIDDEN CAMS
Finished edge
Surface with HIDDEN CAMS
Finished edge
