Sauder Carson Forge 416969 - Step 34: Final Adjustments and Assembly Completion; Adjust file drawer and complete assembly

Step
416969www.sauder.com/services
Pae 39
Step 34
å
To make adjustments to the FILE DRAWER, loosen SCREW #3 (SCREW #4 for the SMALL DRAWERS) in the SLIDES a
1/4 turn, then turn the cam clockwise or counter-clockwise. Notice how the drawer raises or lowers as you turn the cam. By
adjustin the drawers this way, it will help the DRAWER FRONTS line up better when closed. Tihten the SCREWS when
fi n i s h e d w i t h a d j u s t m e n t s .
å
NOTE: Please read the back paes of the instruction booklet for important safety information.
å
This completes assembly. Clean with your favorite furniture polish or a damp cloth. Wipe dry.
And to celebrate, why not share your success story?

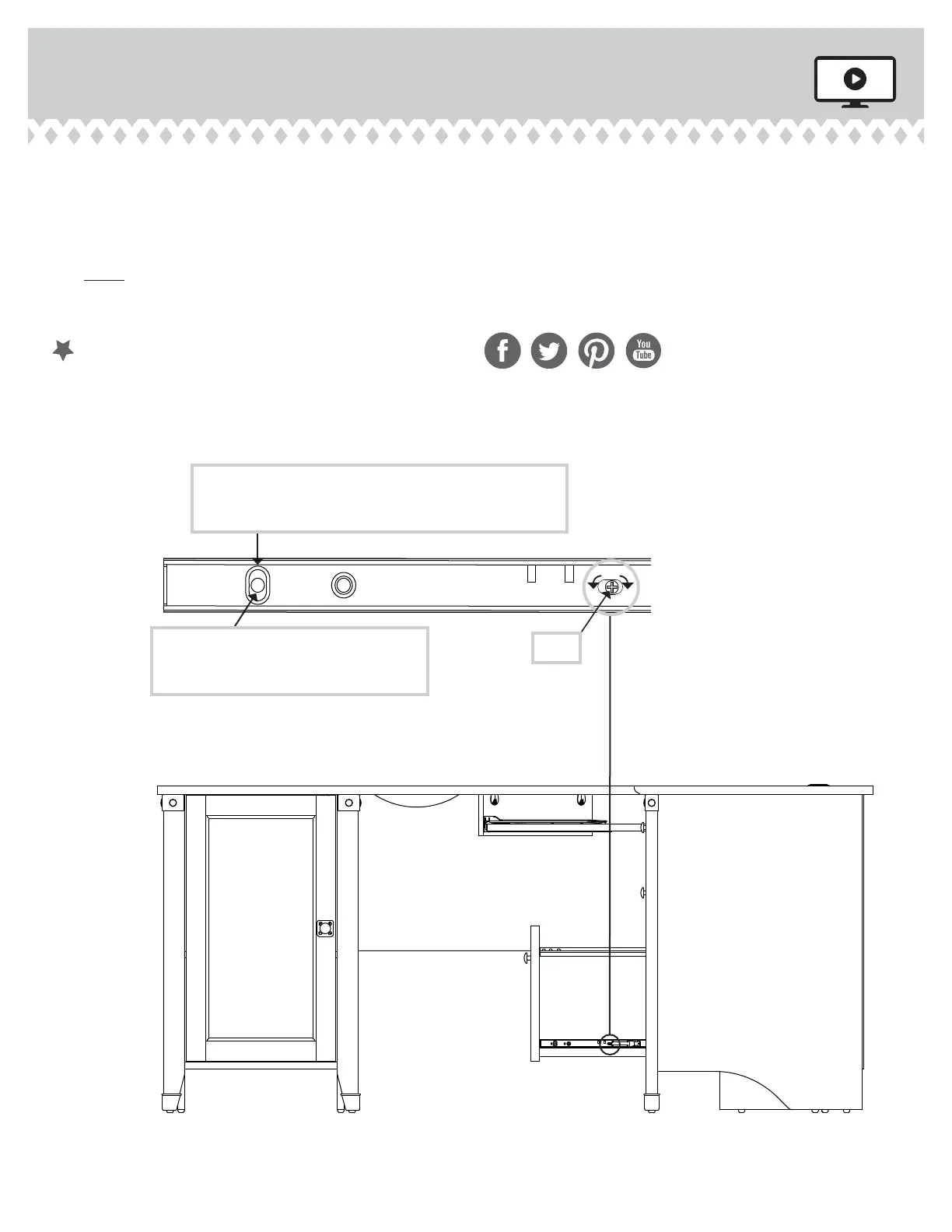

Loosen screw #3 a 1/4 turn, turn the cam a 1/4 turn
maximum in both the clockwise and counter-clockwise
directions to make adjustments, and then tihten screw #3.
The hiher the screw in the oblon hole,
the hiher your drawer front will be. The
lower the screw, the lower the drawer front.
Cam
3
