4. Installation
The SSC-0012 should be located in a place that is dry, well ventilated, and out of direct sunlight.

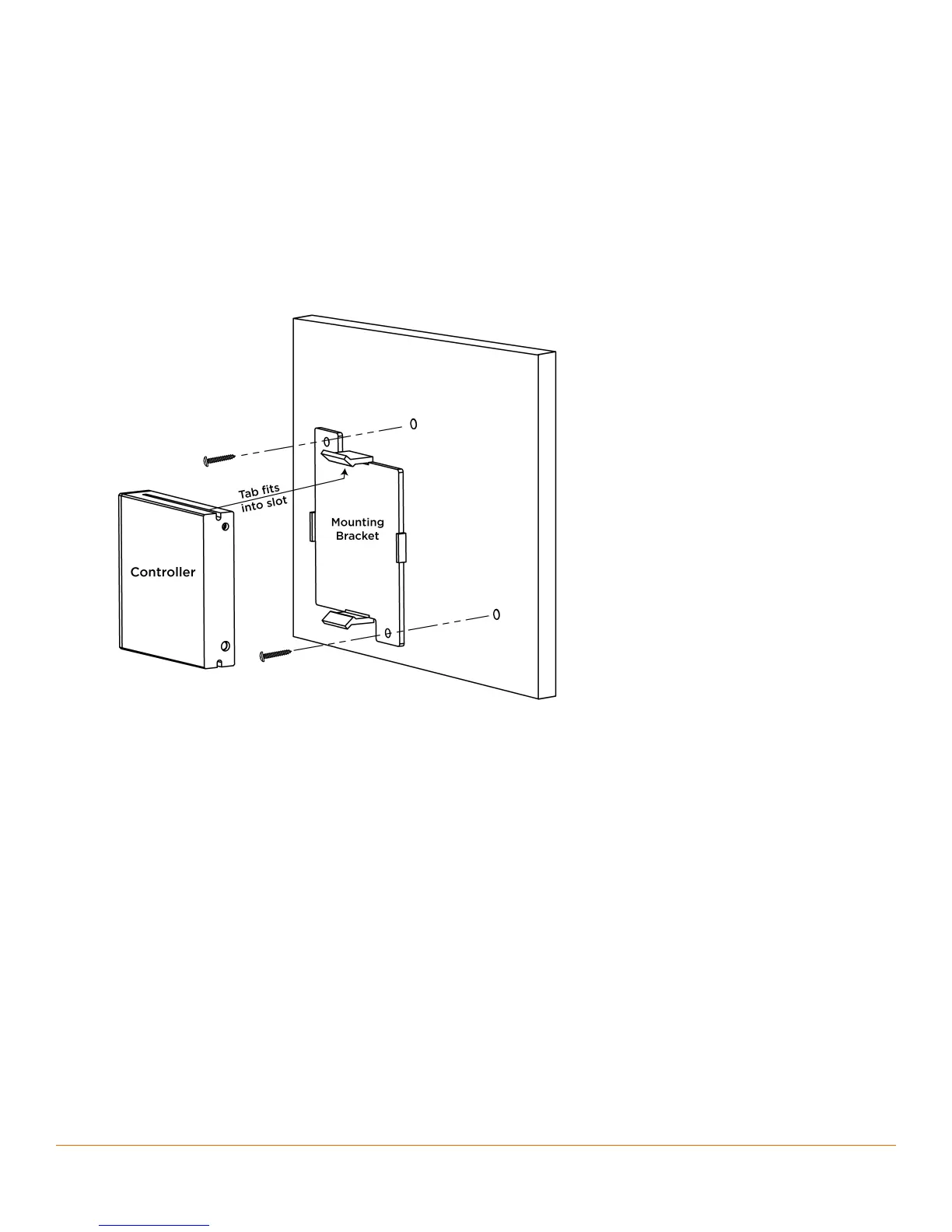

Mounting Plate Installation
A mounting plate (074-0577-xx) is supplied with the SSC-0012 controller. This mounting plate is used to mount
the controller to a wall or existing structure. To mount the controller, follow the instructions below.
1. Position the mounting plate onto the wall where the controller will be located. Position the bracket so the tabs
that hold the controller are positioned horizontally.
2. Mark the two mounting holes on the wall.
3. Install wall anchors and screw mounting plate to the wall.
4. Snap the SSC-0012 controller into the bracket so the tabs on the mounting bracket seat into the slots on the
side of the controller.
Rack or Cabinet Installation
When mounting in a rack or cabinet, the controller should be set on a solid, flat, level surface.
The next step is to connect the required ports. Refer to the Wiring and Connections section below.
