SawStop CTS-015 - Page 77

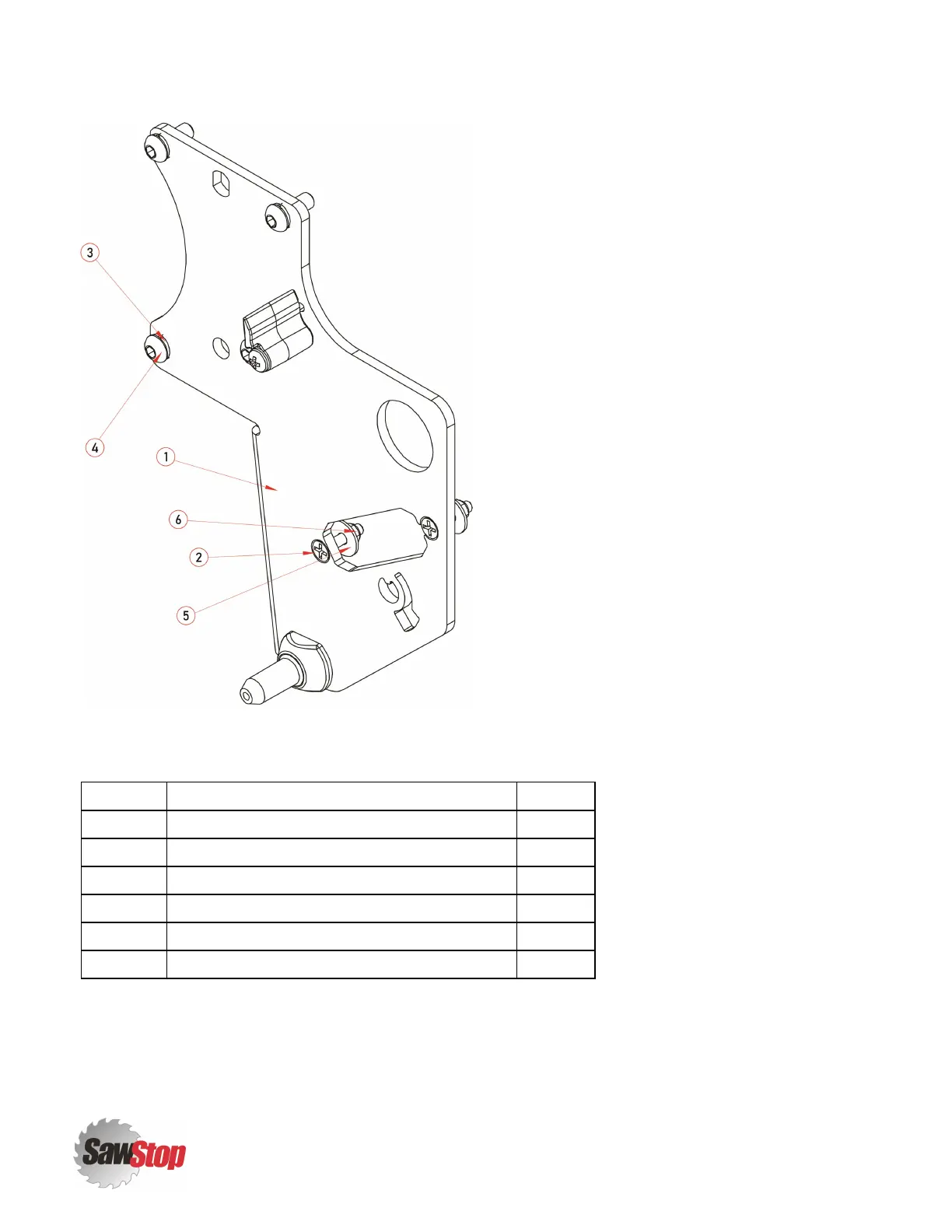

Exploded View
Service Kit Parts List (CTS-027)
ITEM DESCRIPTION QTY
1 Brake Cartridge Bracket Assembly 1
2 Bolt -M4x0.7, 20mm, Flat Head, Phillips 2
3 Lock Washer - M6 4
4 Bolt - M6x1.5, 16mm, Button Head, Socket 4
5 Flat Washer - M4, Flat, 14mm OD x 1mm 2
6 Lock Nut -M4x0.7 2
73
|
CTS Service Manual
Brake Cartridge Bracket (CTS-027)
