Communication interfaces
4-18

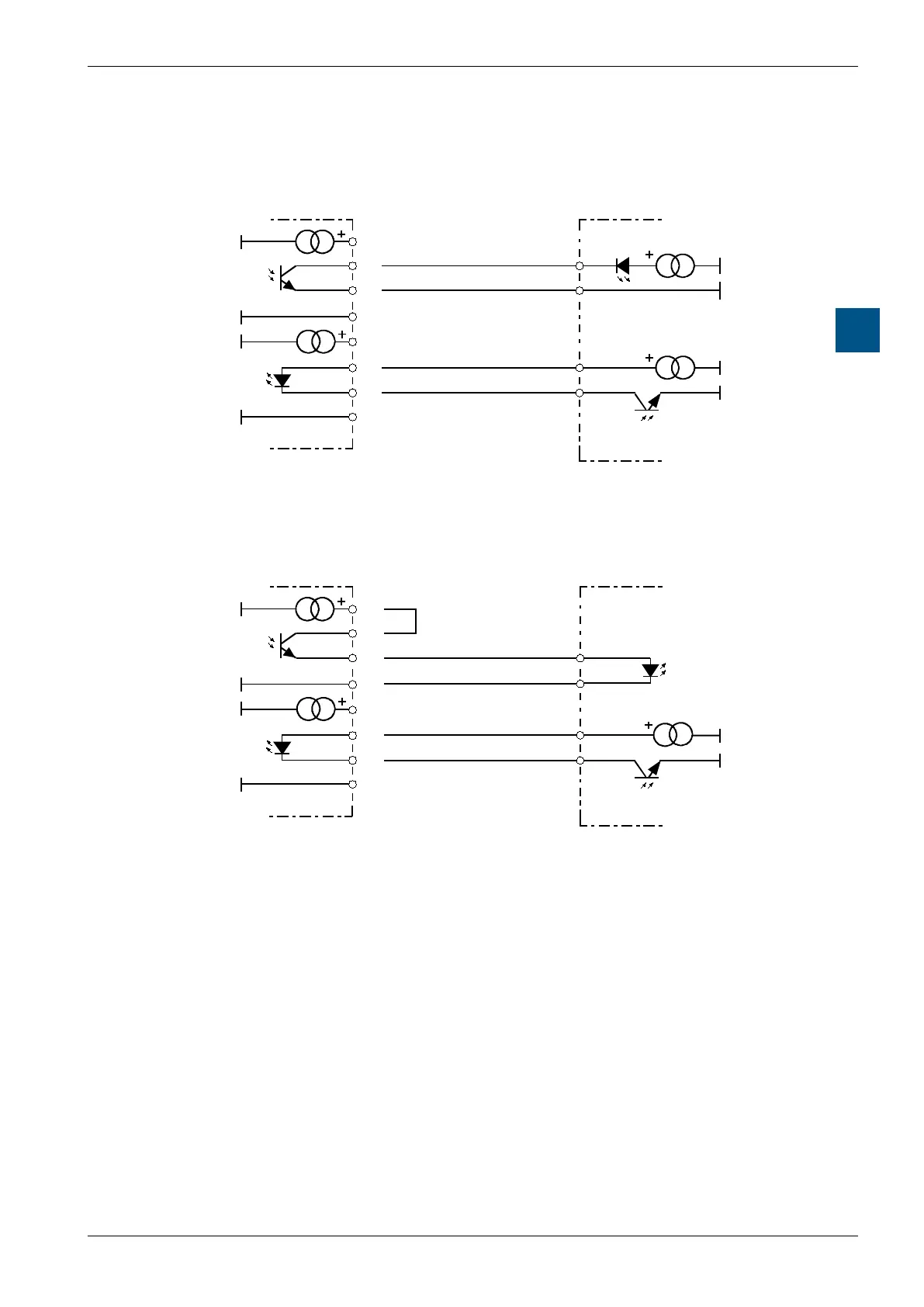

Serial interfaces on socket A
Saia PCD
®
passive
Transmitter
Receiver
Receiver
Transmitter
1
3
6
8
2
4
7
9
Pin-Nr.
PCD7.F130
(passiv)
Cable
Peripherie
(activ)
Saia PCD
®
and peripheral transmitters active
Transmitter
Receiver
Transmitter
1
3
6
8
2
4
7
9
Pin-Nr.
PCD7.F130
(activ)
Cable
Peripherie
(activ)
Receiver
