SBM AMC 12 - Page 10

10
 Recommendations for MULTITHERM installation :
• The connection between the MULTITHERM and the warm air heaters have to be done with
a two-wires shielded and twisted cable 1 x 2 x 0.75 mm, with a maximum length of 200 m.
• Connect the earth shield of the cable only to the earth terminal in the warm air heater.
• The appliances should be disconnected from the electrical network during the connection.
• The installation and start-up of the room thermostat are described into the technical instructions
delivered with the MULTITHERM S or C.
• The thermostat have to be installed in a dry place and moderately dusty.
• Place the thermostat in a place where the air can circulate freely.
• Take care of the risk of sun exposition or the presence of warm sources.
• Avoid installing it near to a cold wall or where there is air flow.
Do never install the thermostat closed to the internal network communication antennas!
These last are emitting a radiation which can conduct to a disturbance of the thermostat.
It is always necessary to keep a distance of some meters.
3.3.4 Fuses
 There are 2 fuses in the appliance, on the main print board: F1 and F2 are placed on the phase
and neutral of the electric supply of the heater. In case of defective fuse, replace it with an
identical fuse size 5x20 - 5A Temporized.
3.4 Air intake / combustion products discharge
Check for compliance with local / national regulations. Only the material mentioned above can be
used. This applies for wall or roof terminals also for exhaust products connections in order to have a
certified and approved installation.
In some cases, and according to the regulation, the terminal must exceed the rooftop by at least 0.5m.
3.4.1 Flue materials
 It is allowed to use only the sealed and corrosion resistant flue pipes CE marked with a
temperature class at least T120.
These flue pipes are not supplied by SBM.
Use only flue pipes with the same diameter.

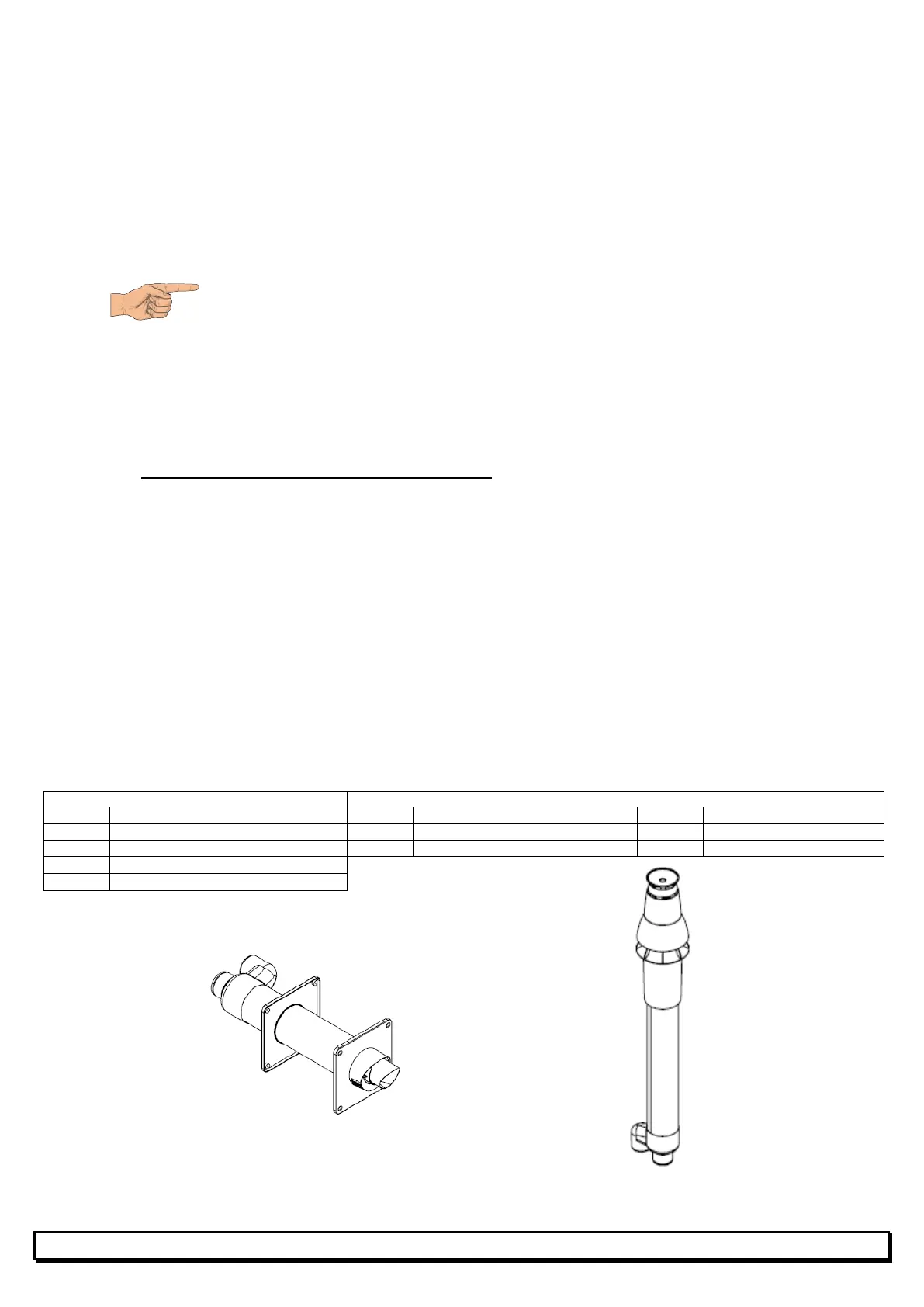

3.4.2 Terminals
 Only the terminals supplied by SBM can be used.
These terminals are certified with the warm air heaters.
Terminals
Roof flashings
Ref. SBM Designation Ref. SBM Designation Ref. SBM Designation
576002
0
ROOF TERMINAL
AM
C
80/125
5760022
FLAT ROOF FLASHING
80/130
5760023
ADJUSTABLE FLASHING
57600
35
ROOF TERMINAL
AM
C
1
3
0/
21
0
57600
36
FLAT ROOF FLASHING
1
3
0/
21
0
57600
37
ADJUSTABLE FLASHING
576003
4
WALL TERMINAL AMC 80/125
576003
8
WALL TERMINAL AMC 130/210
