3. INSTALLATION
3.1 Hanging and fixing
 Check that the support is solid enough.
 The warm air heater must apire and exhaust freely
The presence of any obstacle can conduct to an over-
Heating of the appliance.
 Keep sufficient distance between the heater and any
obstruction, in connection with safety and access for
service and maintenance. Pay particular attention to
any flammable materials. Please take into account the possibility to open the door of the heater for
the necessary service and maintenance work.
 The heater can be installed horizontally or with an angle of maximum 45°.
• The units are provided with pieces of M10 threaded sockets as fixing points.
• AMC 12 and 19 models have 2 pieces of M10 threaded sockets in their centre on the top and
underneath the heater.
• AMC 29 and 39 have 2 pieces of M10 threaded sockets in their centre on the top and underneath
then 4 additional pieces of M10 threaded sockets on the top of the heater.
• AMC 48 and 58 models have 4 threaded sockets on the top and underneath.
• See the schemes above to see the dimensions.
• We recommend using the SBM suspension kits for a safe installation.
• Be sure that there is no mechanical tension on the different connections after installation.
Consult the “APPLICATION RESTRICTION” chapter page 4.

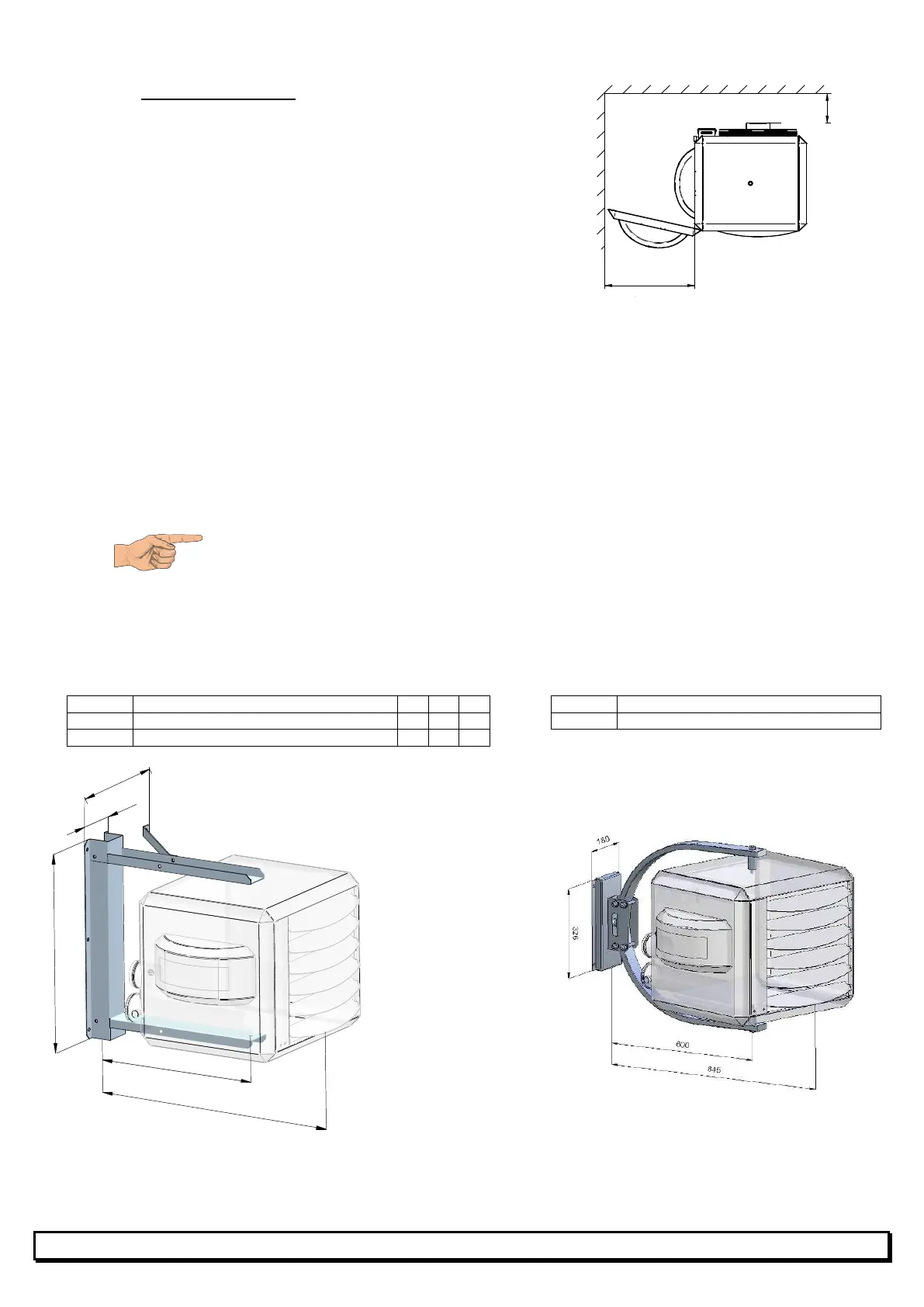

 Positioning possibilities
Standard bracket for AMC 12 to 39 Design bracket for AMC 12 and 19
orientable at 180° horizontally orientable at 180° horizontally
min 250
10 t/m 30 min. 500 mm
40 t/m 60 min 660 mm
12 à 29 : 500 min.
39
à 1
16
: 660 min
.
250
min
.
Ref. SBM Designation A B C
5760007
WALL BRACKET AM12-29/AMC12-19 555 640 800
5760008
WALL BRACKET AM39-58/AMC29-39 665 815 990
Ref. SBM Designation
5760013
DESIGN BRACKETAM12-29/AMC12-19
B
1
5
0
3
9
0
A
C
XR10-30 XR40-60
HR10-20 HR30-40
A 550 665
B 640 815
C 800 990
