SBM MTH 100 DI User Manual

5

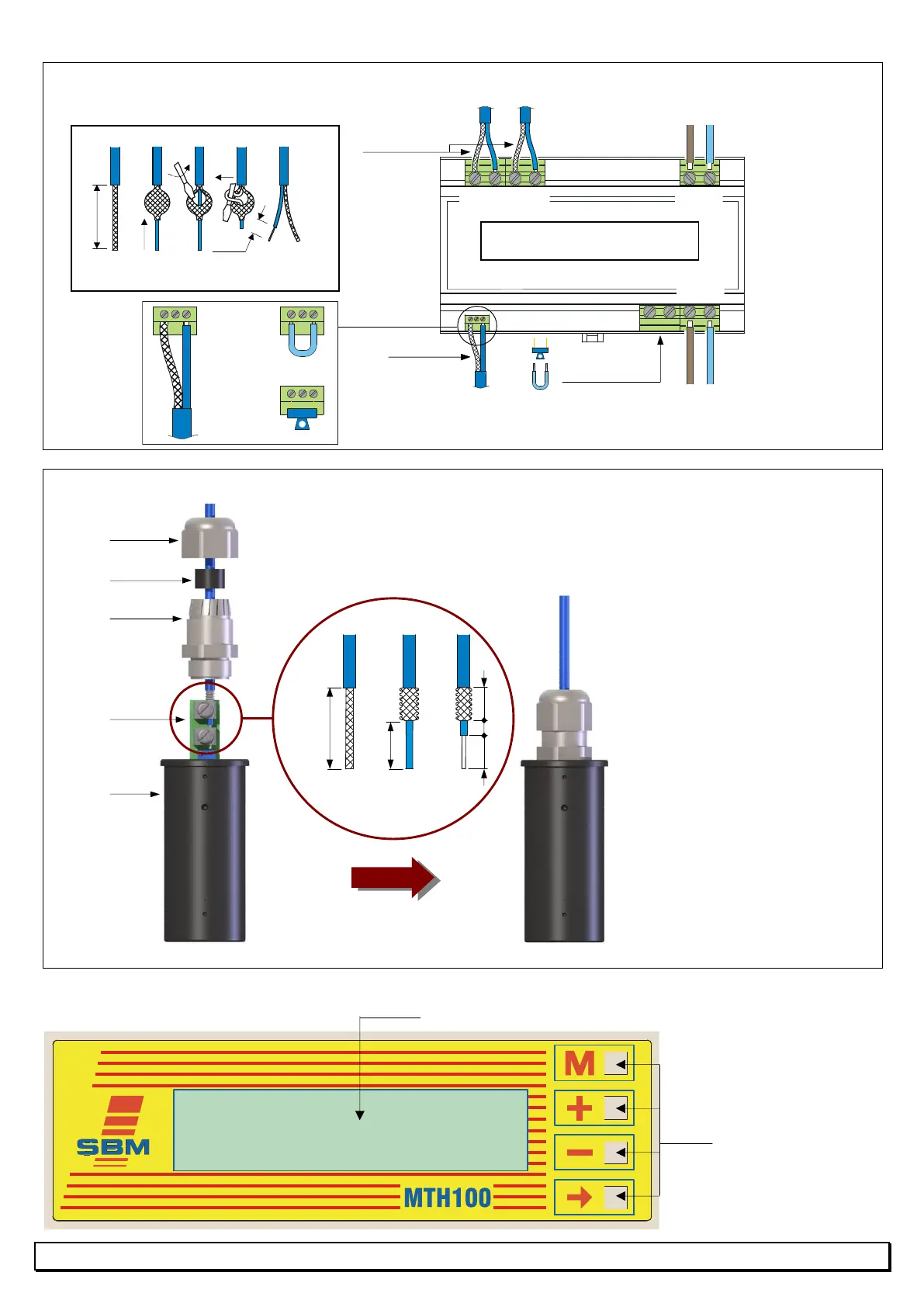

ELECTRICAL CONNECTION
24 23
22 21
11
12
14
13
22 21
SENSOR KIT ASSEMBLY
3. PROGRAMMING
Display
4 control buttons
230 V AC
Temperature
sensor
Cable shield
P/L1 N/L2
Heating
P/L1 N/L2
External
push-button
(optional extra)
or
Cable shield
1 2 3 4 5
7 mm
25 mm
Safety switch
MTH100 DI
Terminals 9 and
10
unused
- Slide A, B and C around the
cable.
- Strip cable.
- Connect the cable to
printed circuit D.
- Slide D in the sensor body E.
- Screw C into E tightly.
- Place B into C.
- Tighty screw A into C for
a perfect seal.
A
B
C
D
E
22 mm
13
9
9
4
or
