SBS SBS-3500 - Filling with the Plastic Syringe

Page 37
9.5.1 Filling Using the Filling Tube
1. Press down the pump lever as far as it will go (see Fig. 9 – 1).
2. Submerge the filling tube in the sample.
3. Slowly release the pump lever.

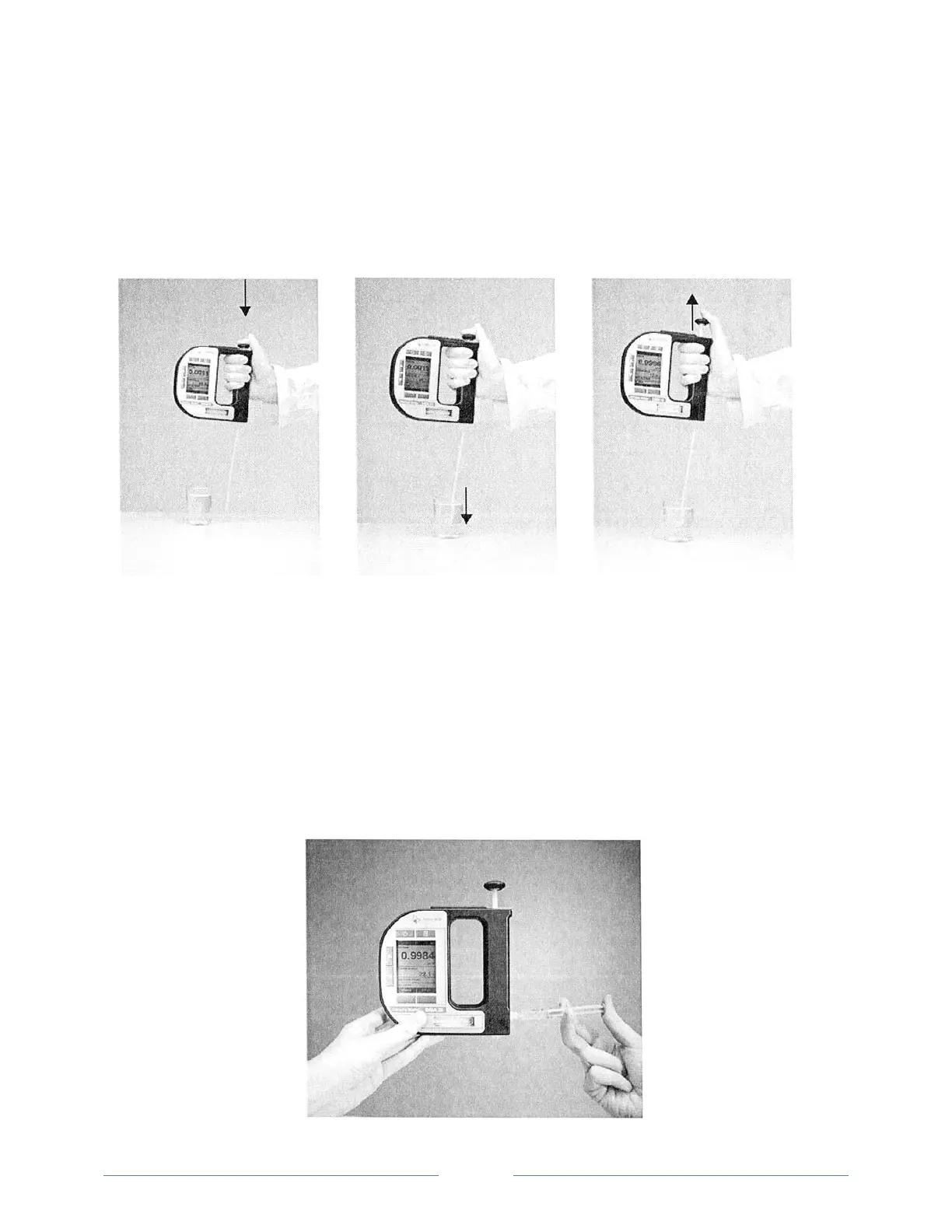

Fig. 9 – 1 Filling sample using the filling tube
9.5.2 Filling with the Plastic Syringe
NOTICE Do not remove the pump when filling with the plastic syringe.
Otherwise, the system is leaky
1. Fill the plastic syringe with the sample.
2. Fill the measuring cell through the Luer adapter using the plastic syringe.
Fig. 9-2 Filling sample using the plastic syringe
