SBS SBS-3500 - Page 45

Page 45

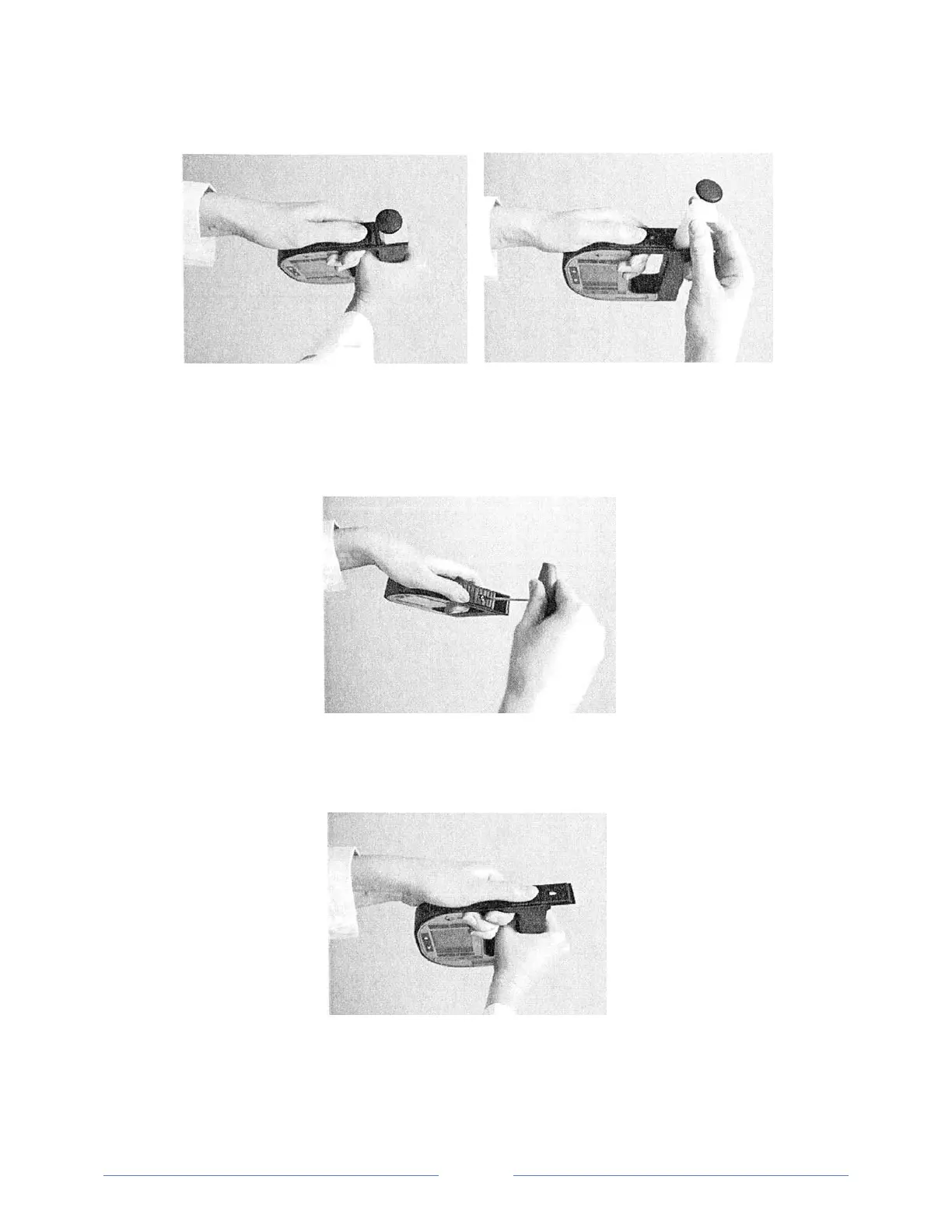

Fig. 11-1 Removing the pump
4. Screw out the screw of the pump lock using an Allen key size 2.5 and remove the screw.
Fig. 11-2 Removing the pump lock screw
5. Remove the pump lock by sliding it outwards.
Fig. 11-3 Removing the pump lock
