SCAN 60 - Floor Pad at Corner Installation; Ceiling Height

7
Corner installation

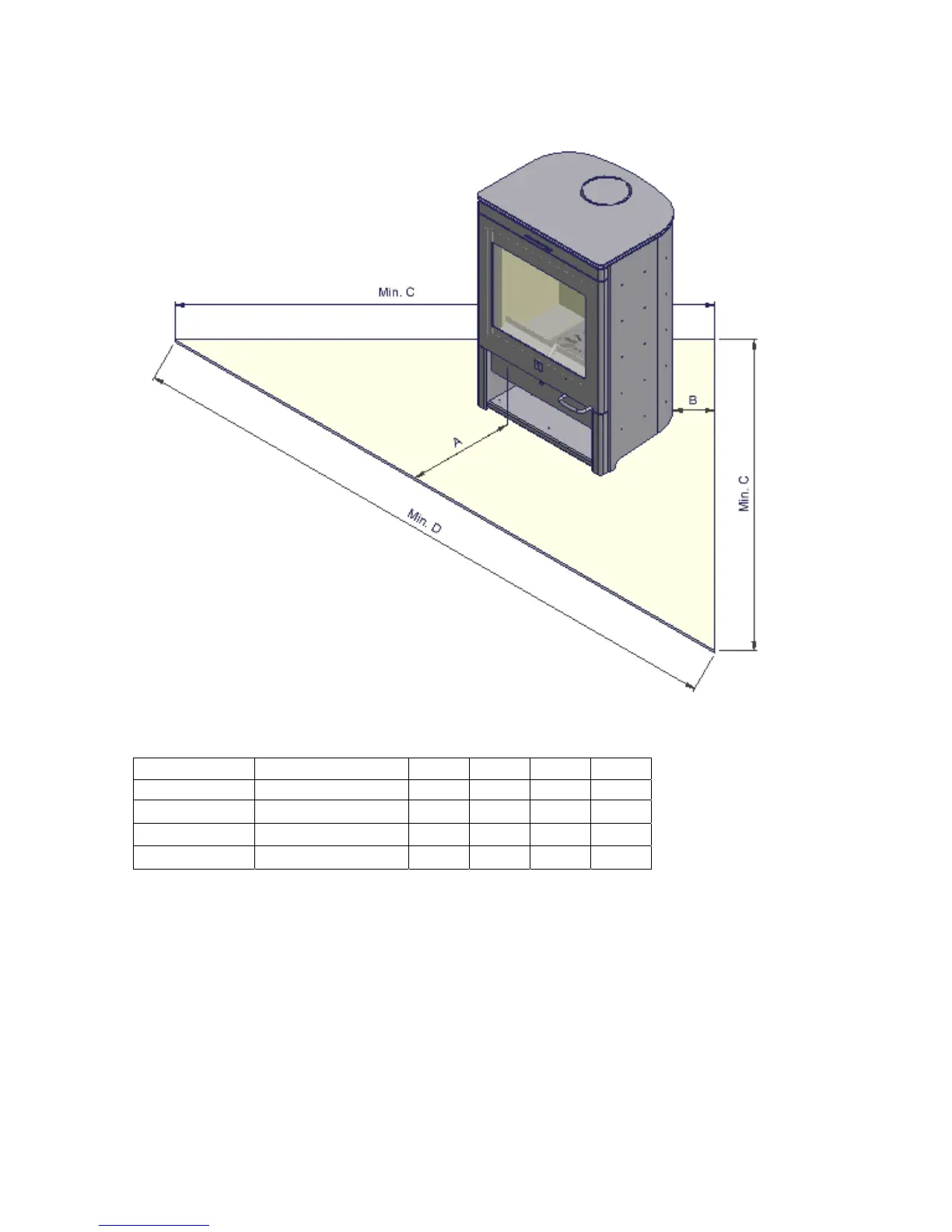

Floor pad at Corner Installation
Model Floor protection A B C D
Scan 60 USA 16” 7,5” 73,8” 104,5”
Scan 60 Canada 457 203 1975 2794
Scan 61 USA 16” 7,5” 68” 96”
Scan 61 Canada 457 203 1983 2804
In a rear vent installation the floor protection must also extend under the stovepipe a minimum of 2”
(50mm) beyond either side of the pipe.
Ceiling Height
Do not install in an alcove or confined space and do not install in a room with a ceiling high below 7’
(210 cm)
