Combustible Wall Clearance for Top Vent Installation
If the stove is to be placed at side and back walls of combustible materials the following clearances
must be kept
Parallel and corner installation

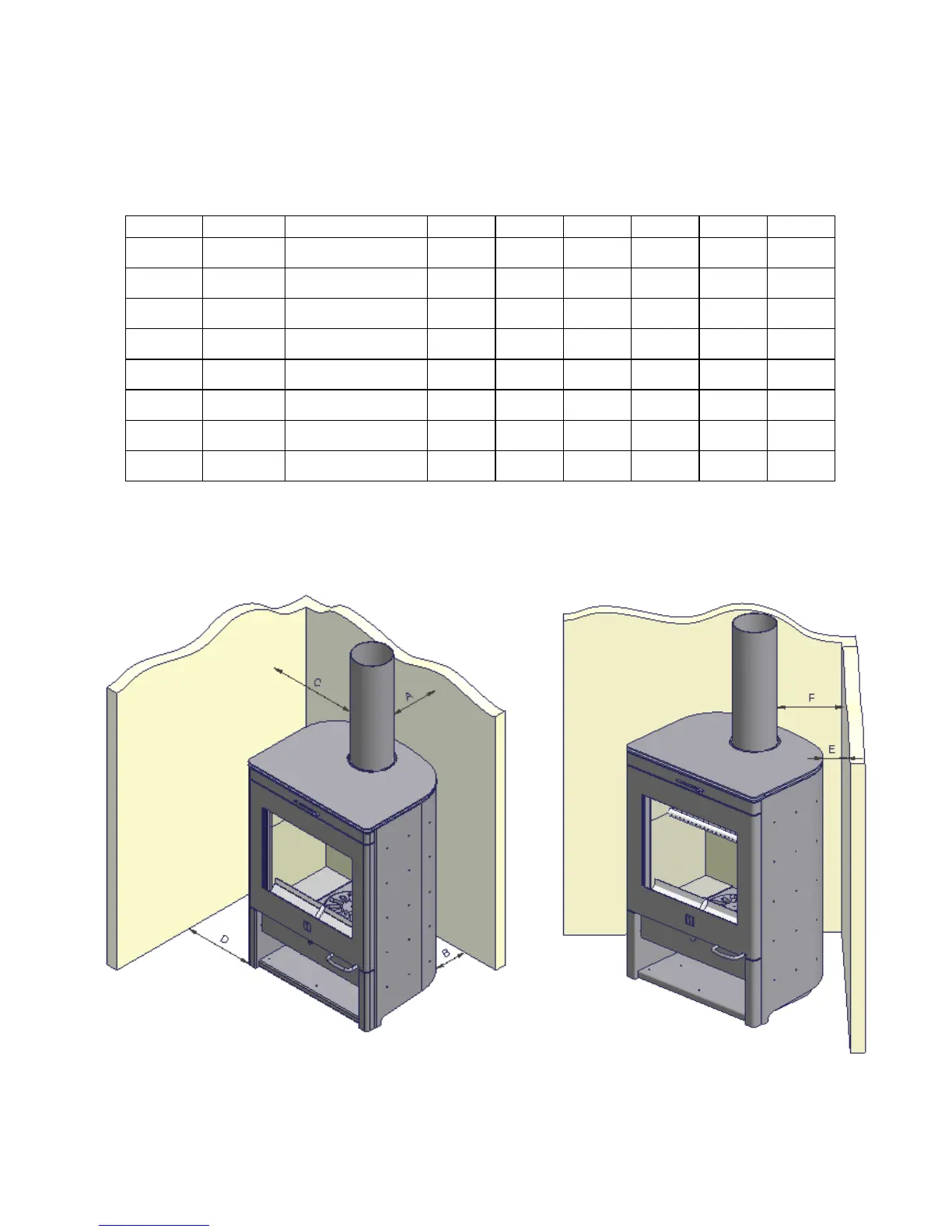

Parallel installation Corner installation
Model
Connector pipe A B C D E F
Scan 60 USA Single wall
13 10.5 21 12 7.5 13.5
Scan 60 Canada Single wall
330 265 535 305 190 343
Scan 60 USA Double wall
8 6 21 12 5.5 13.5
Scan 60 Canada Double wall
205 152 535 305 140 340
Scan 61 USA Single wall
11 10.5 21 12 7.5 13.5
Scan 61 Canada Single wall
279 265 535 305 190 340
Scan 61 USA Double wall
6 6 21 12 5.5 11.5
Scan 61 Canada Double wall
152 152 535 305 138 290
