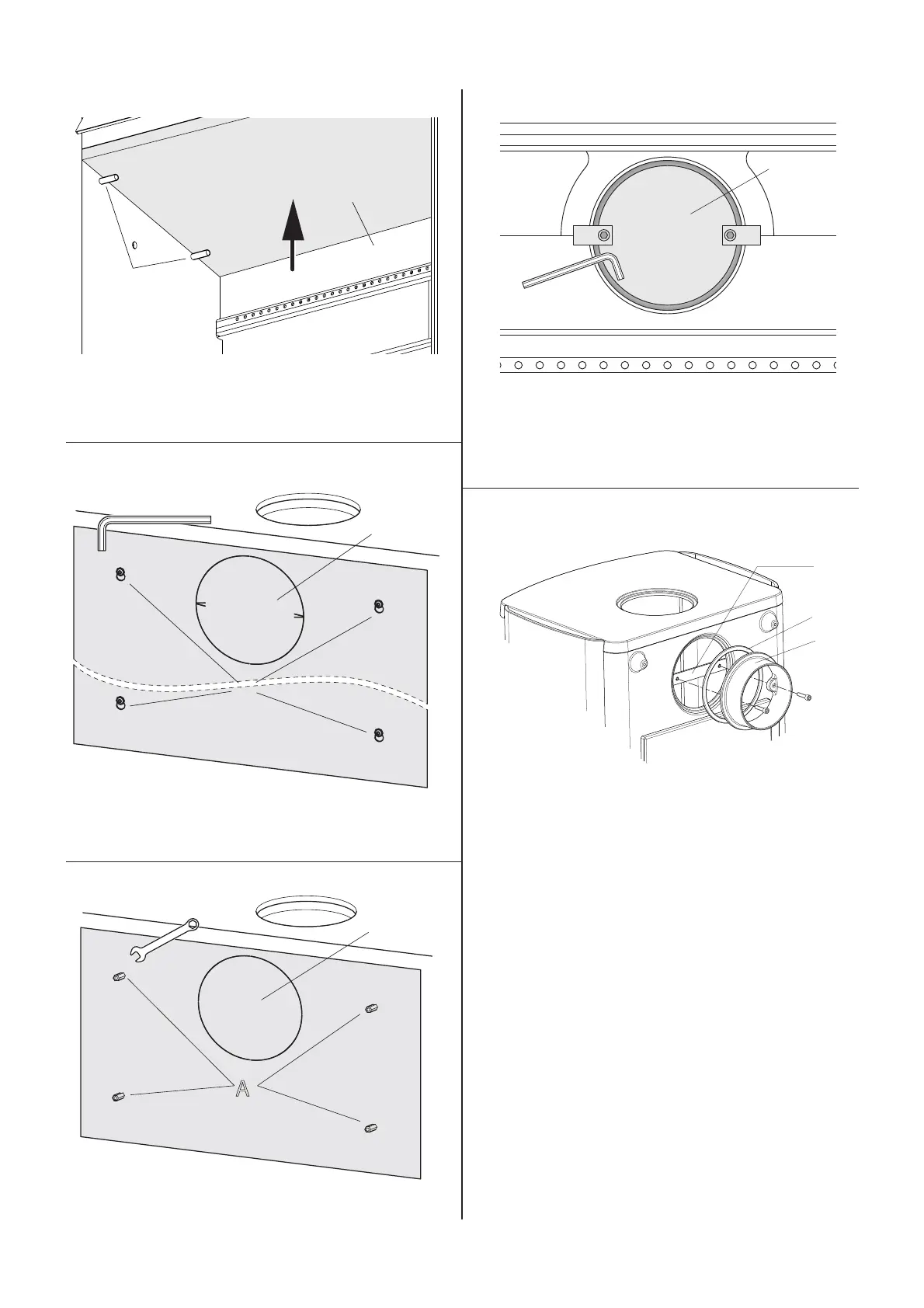

Fig. 7
B
A
1. Lift the exhaust defl ector (fi g. 7A) up carefully.
2. Remove the pins (fi g. 7B).
3. Ease the exhaust defl ector out.
Fig. 8
A
B
1. Unscrew the outer heat shield (fi g. 8A).
2. Remove the knockout (fi g. 8B).
Fig. 9
B
A
1. Unscrew the inner heat shield (fi g. 9A).
2. Remove the knockout (fi g. 9B).
Fig. 10
A
1. Remove the cast iron cover (fi g. 10A) from inside the burn
chamber.
2. Fit the cast iron cover in the top outlet hole using the same
parts.
Fig. 11
C
A
B
1. Place the provided gasket (fi g 11A) to the smoke outlet.
There are two loose smoke outlets with the stove Ø125mm
and Ø130mm.
2. Attach the loose smoke outlet (fi g. 11B) to the outlet using
the bracket (fi g. 11C) and the screws provided.
For re-installation follow the same procedure in the opposite
sequence.
