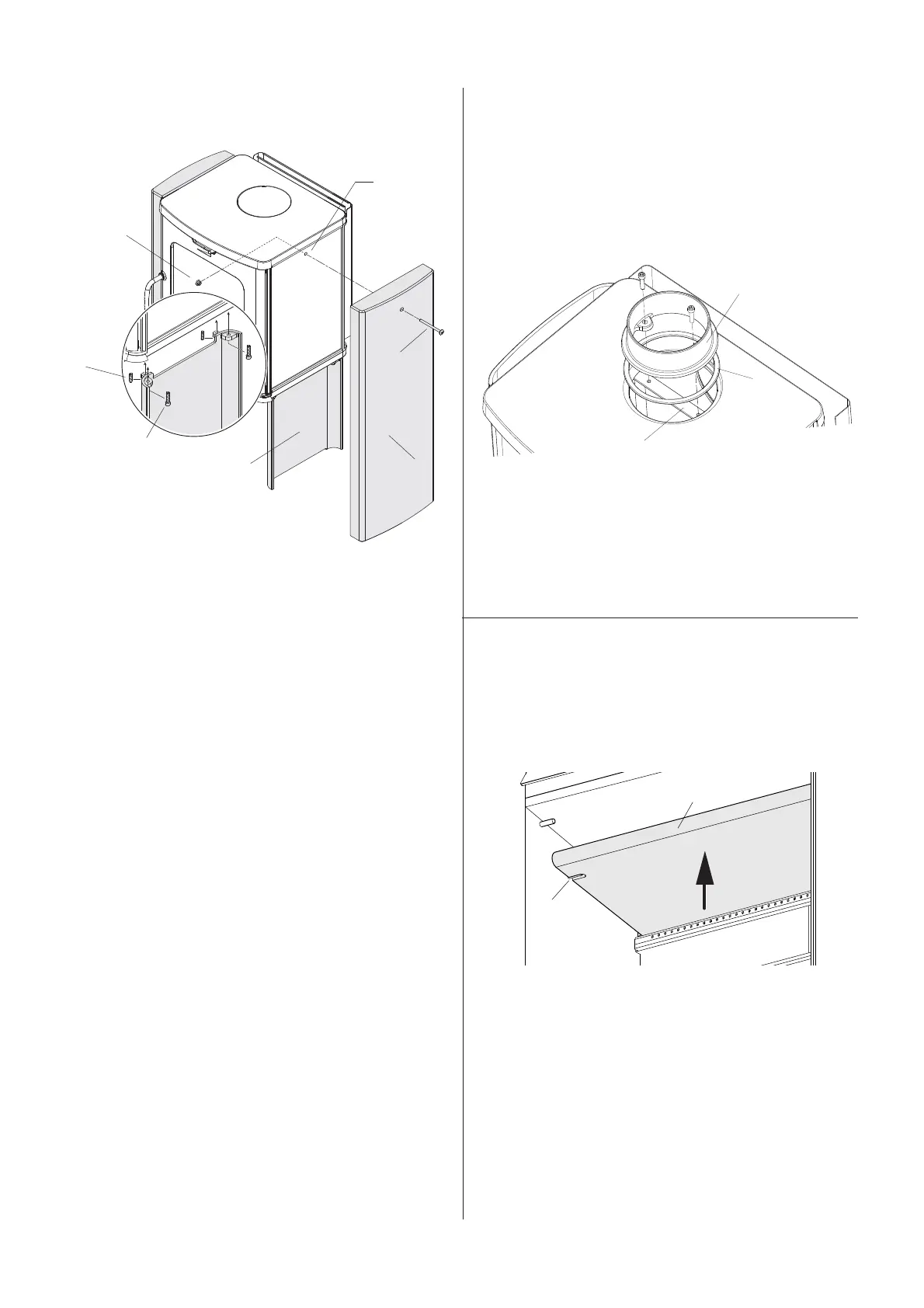

4.6 Fitting the soapstone panels
Fig. 4
A
B
C
D
E
F
G
1. Lay the stove carefully on its back
2. Remove the baffl e and exhaust defl ector according to
fi g. 6 and fi g. 7.
3. Remove the screw and nut placed in the hole on the side
(fi g. 4A).
4. Assemble the legs (fi g. 4B) using the screws provided
(fi g. 4C and fi g. 4D).
5. Place the stove upright. If the rear smoke outlet is used,
connect the stove to the chimney before soapstone sides
are mounted (fi g. 6 - 11).
6. Fit the soap stone panels (fi g. 4G) using the nuts and
screws provided (fi g. 4E and fi g. 4F).
1. Attach the loose smoke outlet (fi g. 5), and place the soap
stone top.
4.7 Smoke outlet
The product has been prepared for a top outlet by the
manufacturer.
Fitting a smoke outlet with a top outlet
Fig. 5
B
A
C
1. Place the provided gasket (fi g 5A) to the smoke outlet.
There are two loose smoke outlets with the stove Ø125mm
and Ø130mm.
2. Attach the loose smoke outlet (fi g. 5B) to the stove top
using the bracket (fi g. 5C) and the screws provided.
Fitting a smoke outlet onto rear outlet
on stove
Fig. 6
B
A
1. Lift the baffl e (fi g. 6A) up carefully.
2. Remove the pins (fi g. 6B).
3. Ease the baffl e out.
