Scania DC09 Installation Manual

INSTALLATION
MANUAL
© Scania CV AB 2018, Sweden
Components – Stage V
01:07 Issue 17 en-GB 12

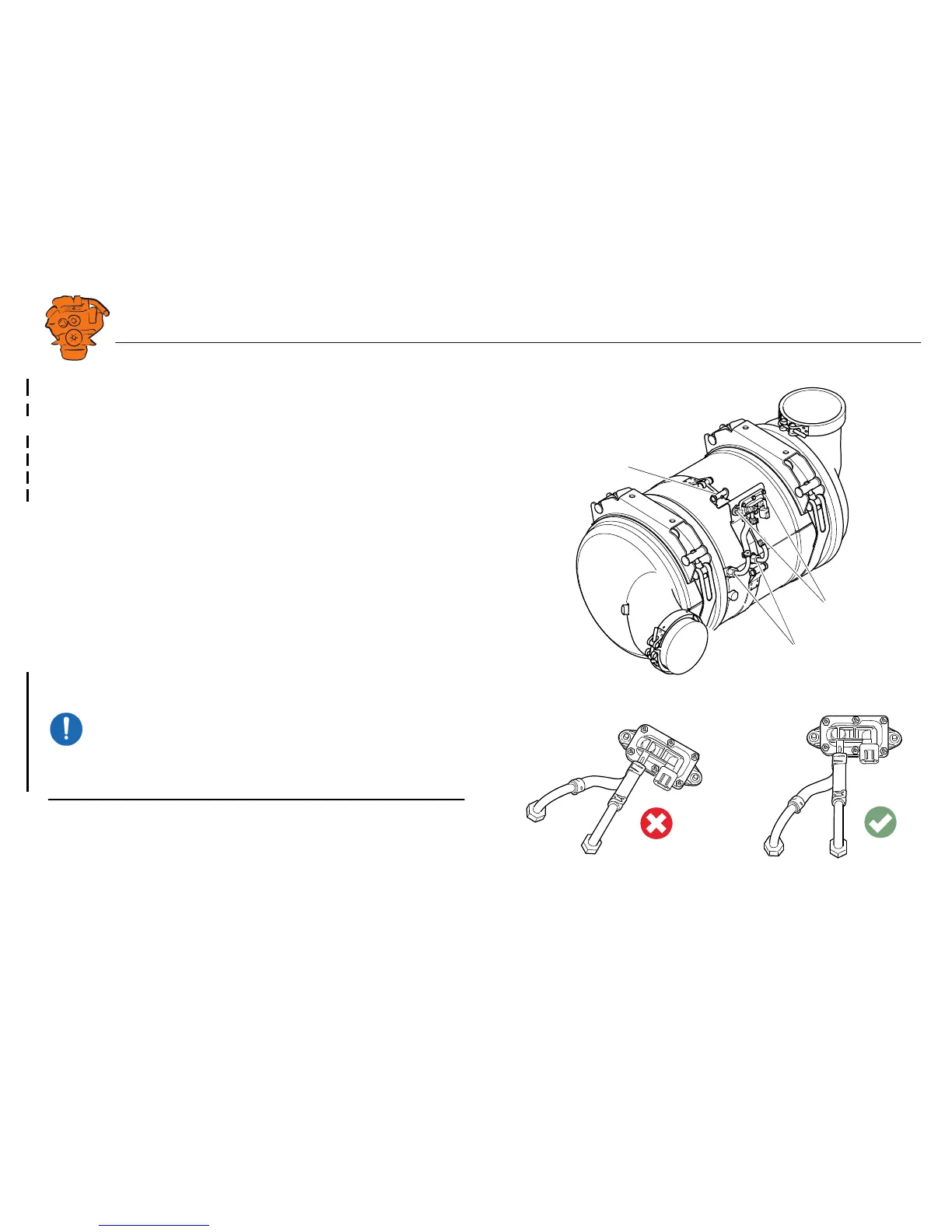

Differential pressure sensor
A differential pressure sensor must be fitted on the particulate filter.
The differential pressure sensor must be fitted so that there is no risk of it coming into
contact with water, as it is damaged by moisture.
IMPORTANT!
The differential pressure sensor must not be inclined when compared to the horizon-
tal plane. There must be a continuous inclination in pipes and hoses in order to pre-
vent water from collecting in them and freezing.
Tightening torques
1. Union nut 40 Nm
2. Nut M6 8 Nm
3. Hexagon socket screw M6 8 Nm
1
3
2
399 644
400 364

Scania DC09 Specifications

General

Engine Model	DC09
Displacement	9.3 liters
Fuel Type	Diesel
Fuel System	Common rail
Bore x Stroke	130 mm x 140 mm
Engine Type	Inline 5-cylinder
Power Output	280-360 hp
Torque Output	1350-1700 Nm
Emission Control	SCR, EGR, DPF
Turbocharger	Variable geometry turbocharger
Cooling System	Liquid-cooled
Compression Ratio	18:1
