Scania DC09 Installation Manual

INSTALLATION
MANUAL
© Scania CV AB 2018, Sweden
System overview – Stage V
01:07 Issue 17 en-GB 6

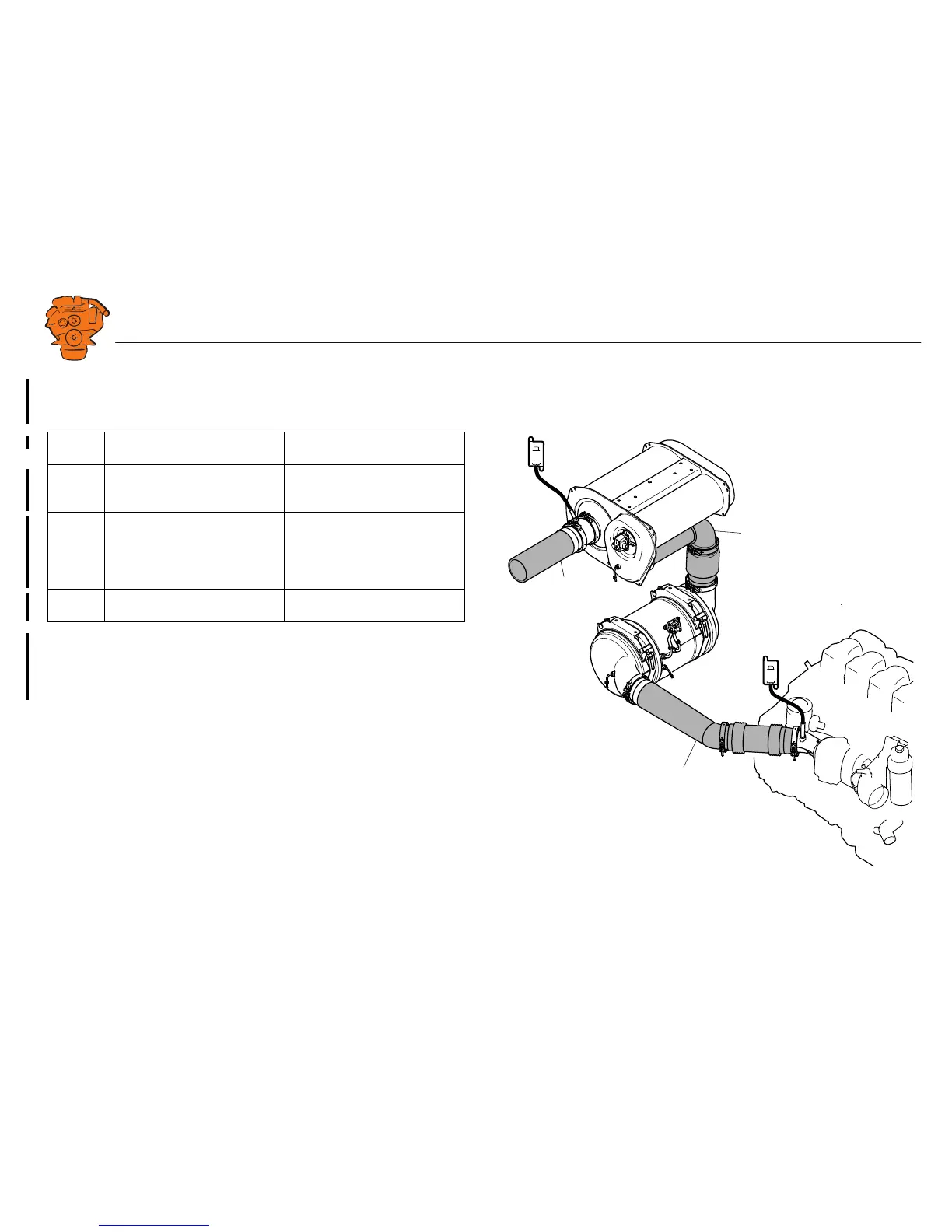

Exhaust pipe
Pipe lengths
The exhaust gas temperature may drop excessively in the system if the total length
between the NO
x
sensor adapter outlet and the evaporator inlet exceeds 2,700 mm.
There is then a great risk that the engine will go into heating mode, which can in-
crease fuel consumption. The maximum permitted exhaust gas temperature reduc-
tion is indicated in 01:04 Exhaust system.
Pipe sec-
tion
Description Pipe length (mm)
A From the adapter for NO
x
sensor
T131 to the oxidation catalytic
converter inlet.
Max. 1,700.
A+B Total length from the adapter for
NO
x
sensor T131 to the evaporator
intake, excluding the particulate
filter unit (oxidation catalytic con-
verter and particulate filter).
Max. 2,700.
C From the adapter for NO
x
sensor
T115 to the exhaust outlet.
At least 500 mm.
A
B
C
397 339

Scania DC09 Specifications

General

Engine Model	DC09
Displacement	9.3 liters
Fuel Type	Diesel
Fuel System	Common rail
Bore x Stroke	130 mm x 140 mm
Engine Type	Inline 5-cylinder
Power Output	280-360 hp
Torque Output	1350-1700 Nm
Emission Control	SCR, EGR, DPF
Turbocharger	Variable geometry turbocharger
Cooling System	Liquid-cooled
Compression Ratio	18:1
