INSTALLATION
MANUAL
© Scania CV AB 2018, Sweden
Components – Stage V
01:07 Issue 17 en-GB 14

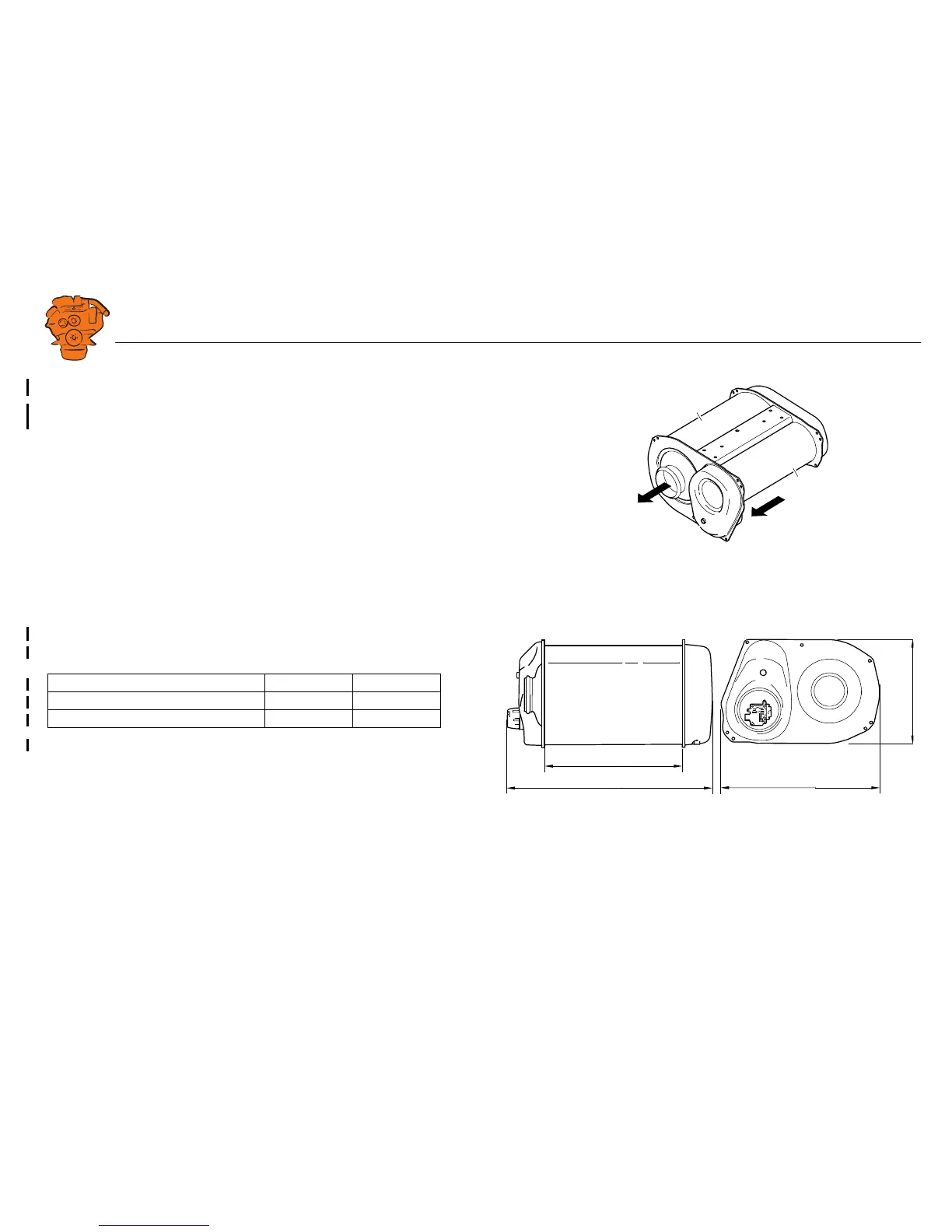

SCR unit
The SCR unit consists of an evaporator and an SCR catalytic converter. The arrows
show the direction of exhaust gases into and out from the SCR unit.
Dimensions
The SCR unit is available in 2 versions.
The tolerance for dimension L1 is ±3 mm.
Engine L1 (mm) L2 (mm)
DC09 and DC13 up to 331 kW 518 763.5
DC13 over 331 kW 595 840.5
2
1
399 084
SCR unit.
1. Evaporator.
2. SCR catalytic converter.
L1
L2
610
400
399 085
