Scania DC09 Installation Manual

INSTALLATION
MANUAL
© Scania CV AB 2018, Sweden
System overview – Stage V
01:07 Issue 17 en-GB 4
System overview – Stage V

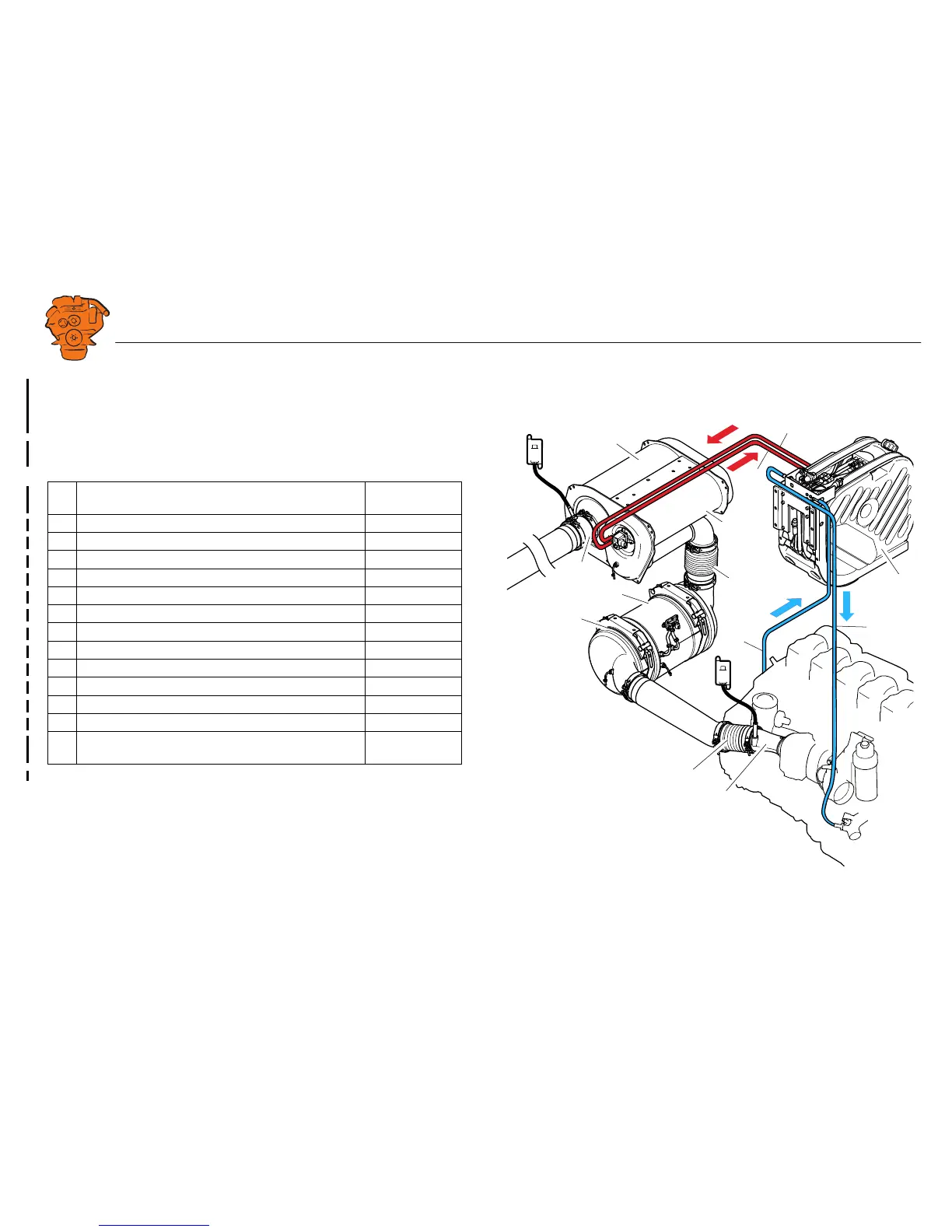

System overview of mechanics
X = the component is always supplied from the factory. O = the component may be
supplied from the factory as an option.
Component Supplied from
the factory
1. Exhaust pipe bend with connection for NO
x
sensor T131. X
1
1. 90° exhaust pipe bend and exhaust brake is available as an option.
2. Exhaust bellows. O
3. Oxidation catalytic converter. X
4. Particulate filter. X
5. Exhaust bellows. O
6. Evaporator. X
7. SCR catalytic converter. X
8. Adapter with connection for NO
x
sensor T115 X
9. Pressure hose for reductant. X
10. Reductant return hose. X
11. Reductant tank. X
12. Coolant hose for heating the reductant tank and pump. -
13. Coolant hose, return from heating the reductant tank and
reductant pump.
-
2
3
4
5
6
7
9
10
13
11
12
1
8
397 337

Scania DC09 Specifications

General

Engine Model	DC09
Displacement	9.3 liters
Fuel Type	Diesel
Fuel System	Common rail
Bore x Stroke	130 mm x 140 mm
Engine Type	Inline 5-cylinder
Power Output	280-360 hp
Torque Output	1350-1700 Nm
Emission Control	SCR, EGR, DPF
Turbocharger	Variable geometry turbocharger
Cooling System	Liquid-cooled
Compression Ratio	18:1
