Components – Stage V
01:07 Issue 17 en-GB 16
Mounting

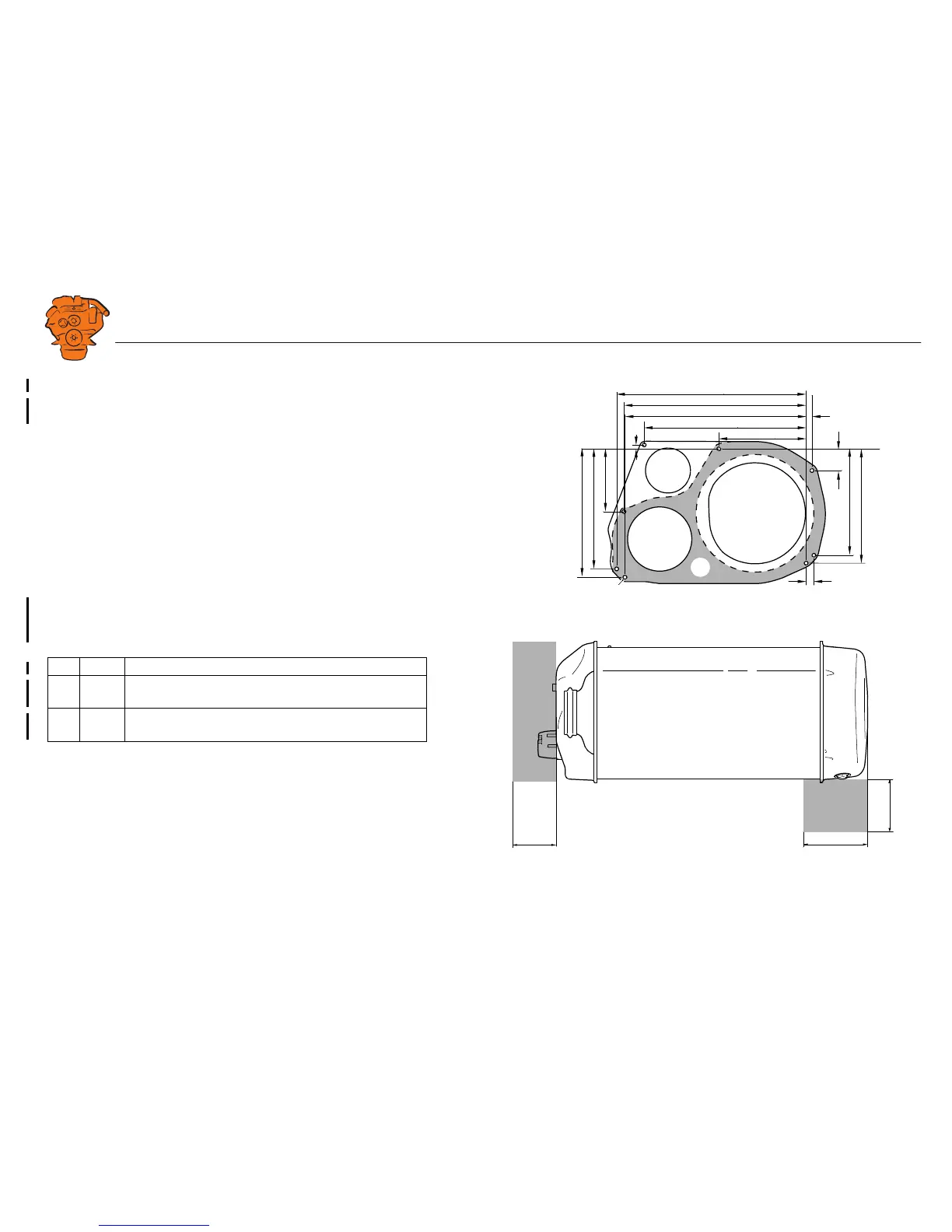

The SCR unit is fitted using the 7 holes on the front (1) and rear (2) bracket. Use at
least 3 of the holes on each end plate when mounting. The bracket thickness is 6 mm.
Clearances
When the SCR unit is installed, the clearances below should be observed so that the
SCR unit can be maintained and repaired in a simple way.
mm Purpose
A 140 Gaining access to the reductant doser and exhaust gas tem-
perature sensor, flushing clean the evaporator.
B 200 Checking the SCR catalytic converter using an endoscope,
draining flush water.
22
(7x) Ø10.5
9.8
16.4
509.9
511.9
532.9
337.5
360.5
175.8
321.2
299.2
61.2
455.4
245.3
1
2
399 086
1. Front bracket on SCR unit.
2. Rear bracket on SCR unit.
B
A
B
398 031
