Scania DC13 User Manual

INSTALLATION
MANUAL
© Scania CV AB 2018, Sweden
Components – Stage V
01:07 Issue 17 en-GB 11
Clearances

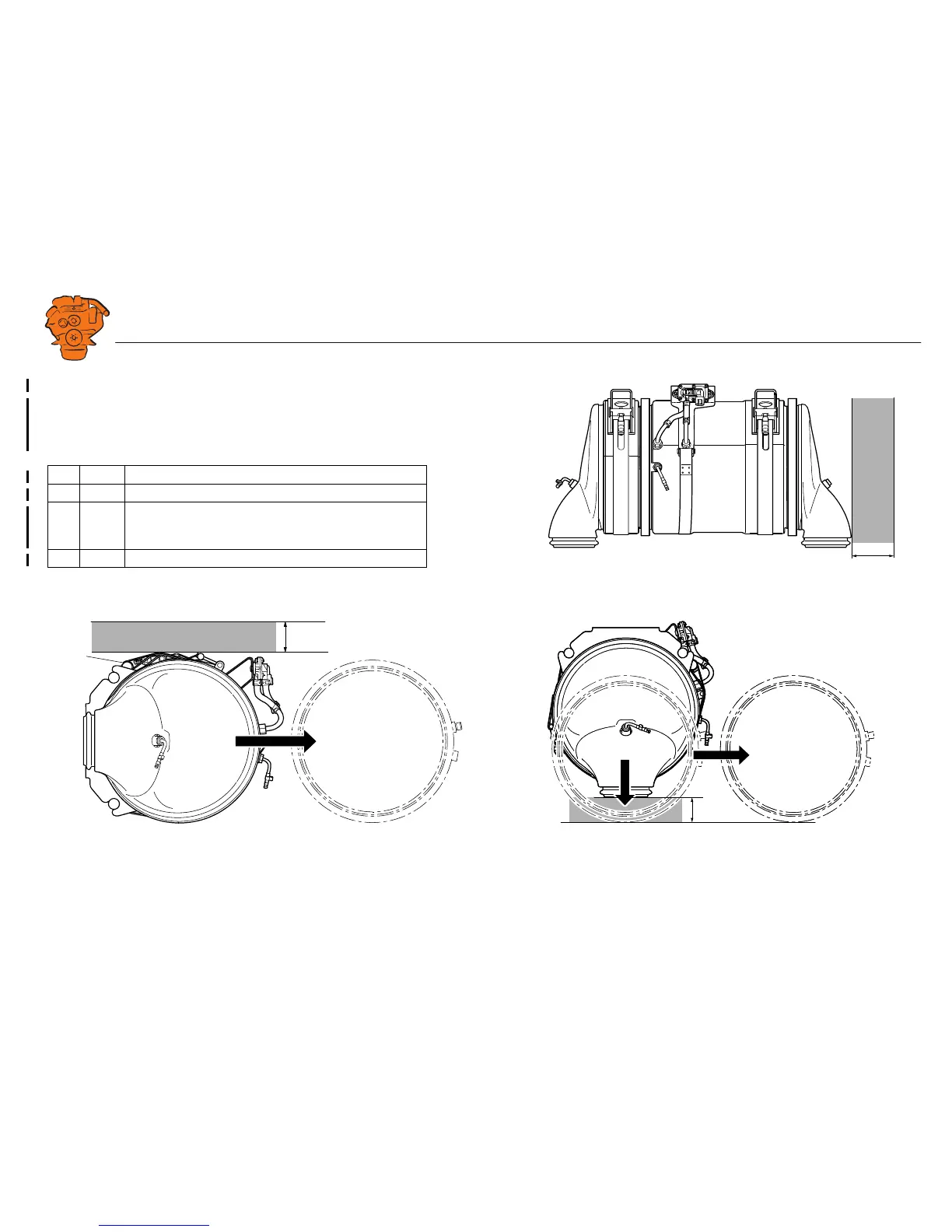

When the particulate filter unit is installed, the clearances below should be observed
so that the particulate filter unit can be maintained and repaired in a simple way. The
clearances depend on how the particulate filter unit is installed. Dimension A, how-
ever, always applies.
mm Purpose
A 100 Renewing particulate filter.
B 140 Renew particulate filter with vertically installed bracket. In
order to renew the particulate filter, screw 1 must be
undone.
C 100 Renew particulate filter with horizontally installed bracket.
A
398 030
1
B
398 032
C
398 033

Scania DC13 Specifications

General

Cooling System	Liquid-cooled
Engine Type	Diesel
Displacement	12.7 liters
Fuel System	Common Rail
Aftertreatment	SCR (Selective Catalytic Reduction)
Turbocharging	Variable Geometry Turbocharger (VGT)
