INSTALLATION
MANUAL
© Scania CV AB 2018, Sweden
System overview – Stage V
01:07 Issue 17 en-GB 6
Exhaust pipe
Pipe lengths
The exhaust gas temperature may drop excessively in the system if the total length
between the NO
x
sensor adapter outlet and the evaporator inlet exceeds 2,700 mm.
There is then a great risk that the engine will go into heating mode, which can in-
crease fuel consumption. The maximum permitted exhaust gas temperature reduc-
tion is indicated in 01:04 Exhaust system.

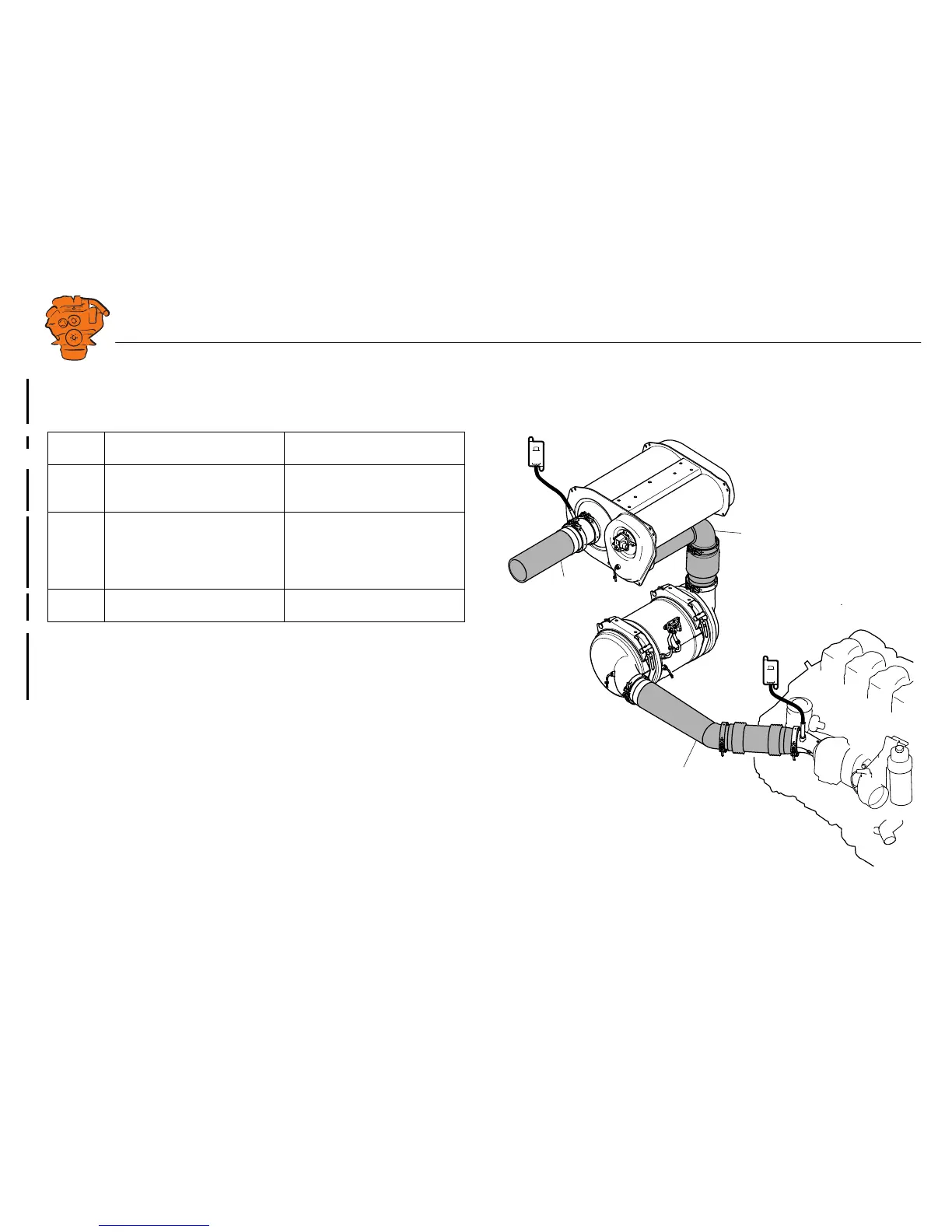

Pipe sec-
tion
Description Pipe length (mm)
A From the adapter for NO
x
sensor
T131 to the oxidation catalytic
converter inlet.
Max. 1,700.
A+B Total length from the adapter for
NO
x
sensor T131 to the evaporator
intake, excluding the particulate
filter unit (oxidation catalytic con-
verter and particulate filter).
Max. 2,700.
C From the adapter for NO
x
sensor
T115 to the exhaust outlet.
At least 500 mm.
