Scania DC13 User Manual

INSTALLATION
MANUAL
© Scania CV AB 2018, Sweden
System overview – Stage V
01:07 Issue 17 en-GB 7
Note:

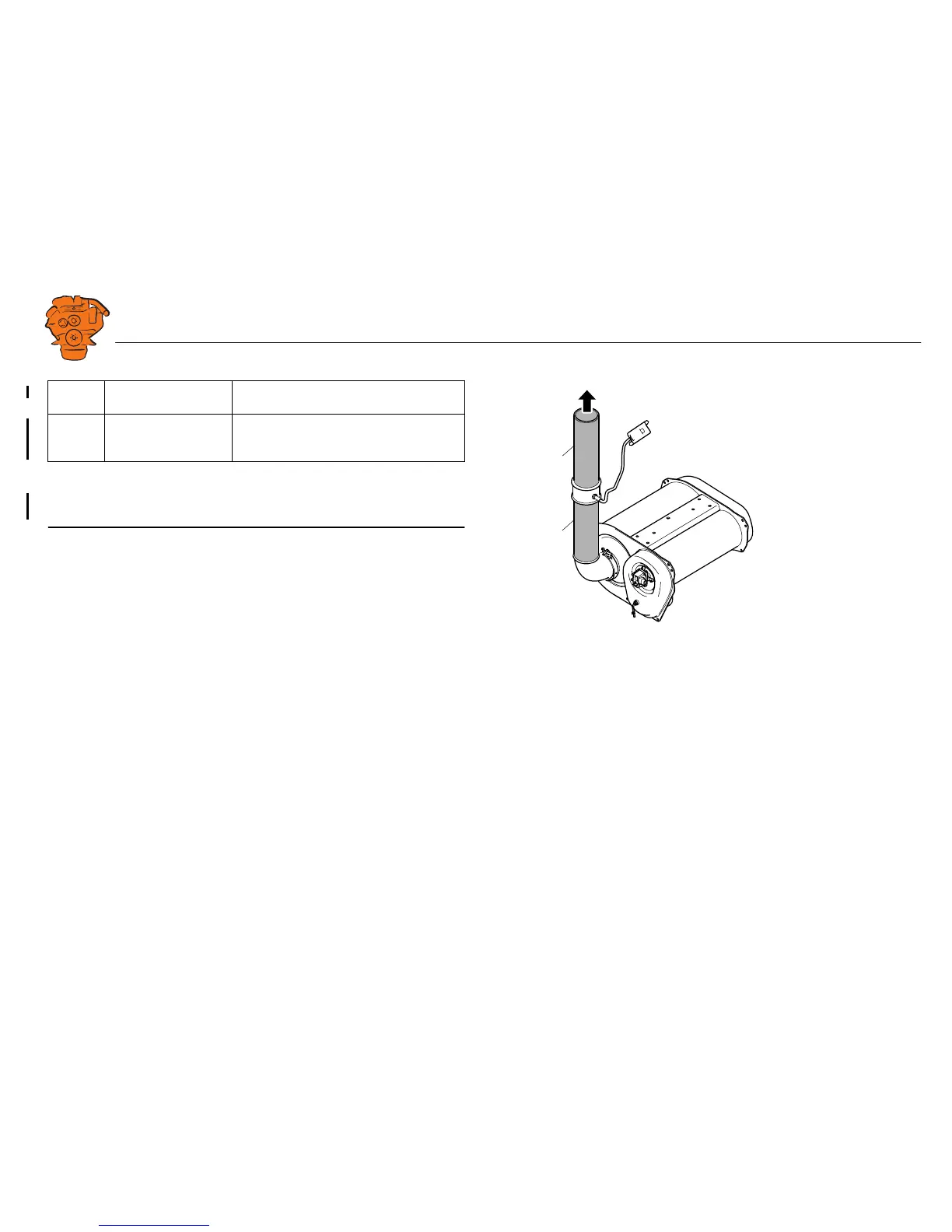

The requirement for pipe length D applies only if a 90° pipe bend is connected di-
rectly downstream of the SCR unit.
Pipe sec-
tion
Description Pipe length (mm)
D Straight pipe section up-
stream of the adapter for
NO
x
sensor T115.
At least 200 mm.
D
C
399 087

Scania DC13 Specifications

General

Cooling System	Liquid-cooled
Engine Type	Diesel
Displacement	12.7 liters
Fuel System	Common Rail
Aftertreatment	SCR (Selective Catalytic Reduction)
Turbocharging	Variable Geometry Turbocharger (VGT)
