Differential pressure sensor

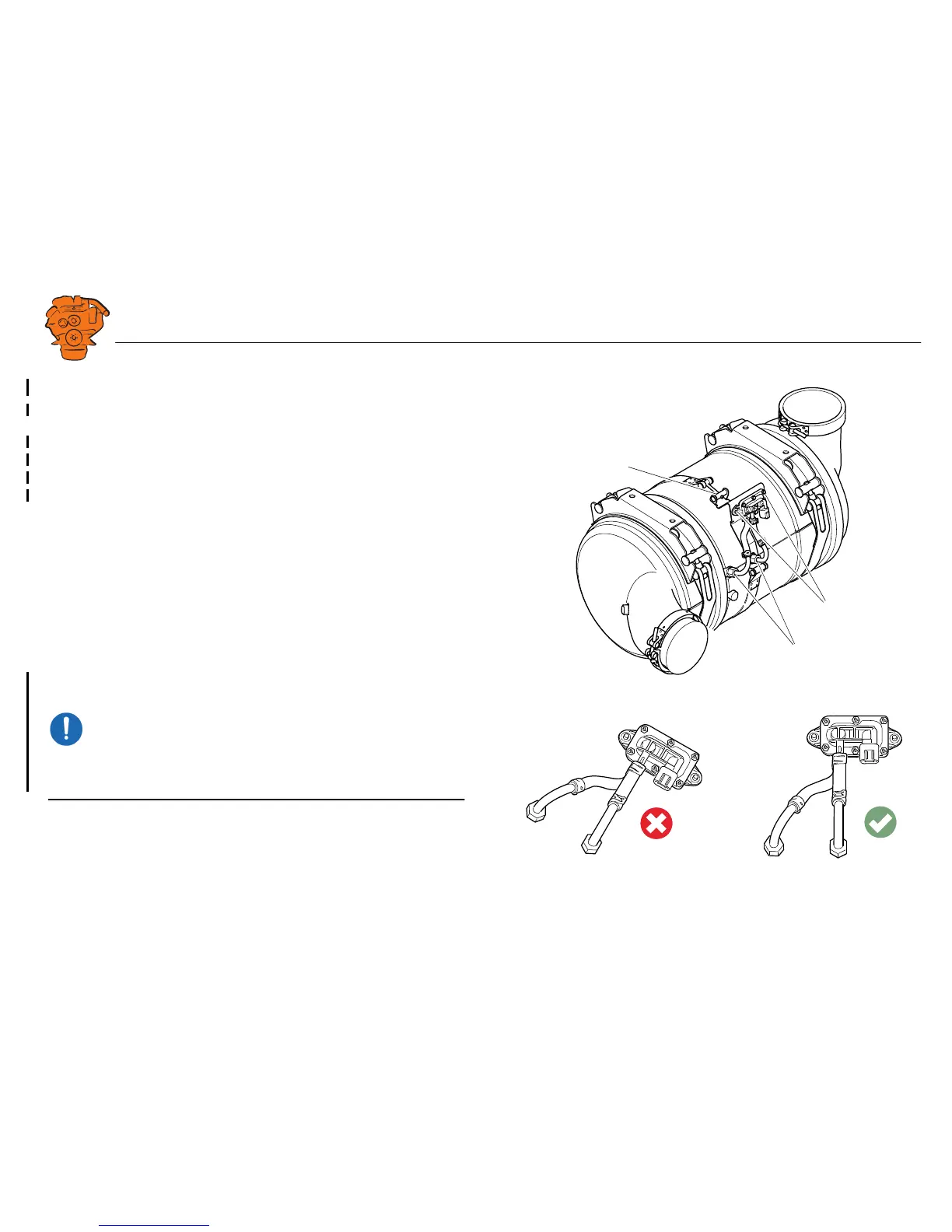

A differential pressure sensor must be fitted on the particulate filter.
The differential pressure sensor must be fitted so that there is no risk of it coming into
contact with water, as it is damaged by moisture.
The differential pressure sensor must not be inclined when compared to the horizon-
tal plane. There must be a continuous inclination in pipes and hoses in order to pre-
vent water from collecting in them and freezing.
Tightening torques
1. Union nut 40 Nm
2. Nut M6 8 Nm
3. Hexagon socket screw M6 8 Nm
