Scania DC13 User Manual

INSTALLATION
MANUAL
© Scania CV AB 2018, Sweden
Components – Stage IV/Tier 4f and Stage III B/Tier 4i
01:07 Issue 17 en-GB 25
Components – Stage IV/Tier 4f and
Stage III B/Tier 4i
Oxidation catalytic converter
The oxidation catalytic converter is found on all Stage IV/Tier 4f engines, apart from
DC13 085A and DC16.
Dimensions

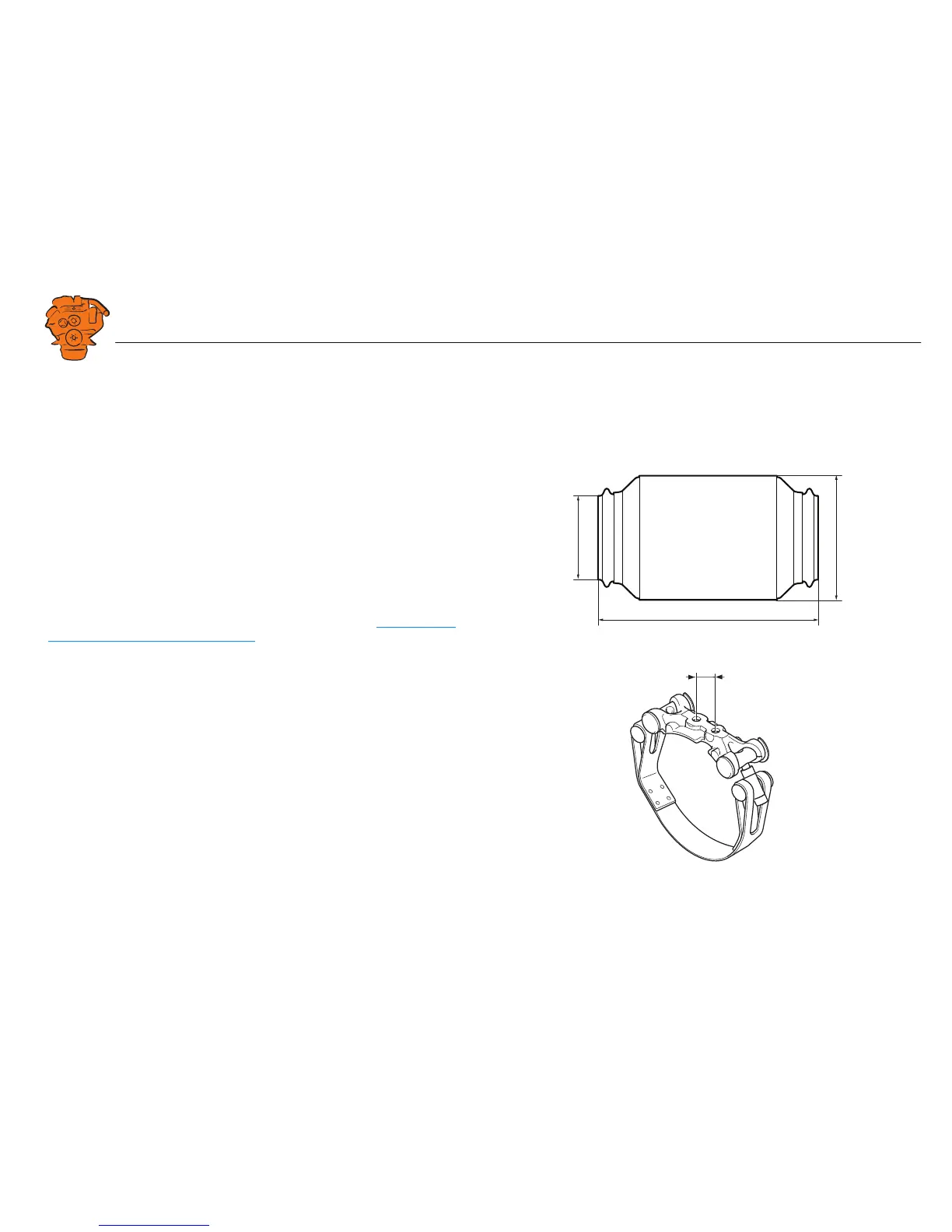

The illustration shows the dimensions of the oxidation catalytic converter.
Position
An oxidation catalytic converter that is not engine-mounted should be positioned be-
tween the exhaust brake and evaporator. Maximum distance between the exhaust
brake and oxidation catalytic converter intake is shown in section Maximum pipe
length to the oxidation catalytic converter.
Mounting
The oxidation catalytic converter is supplied with 2 retaining straps with brackets.
The attachment holes have a diameter of 11 mm. Attach the brackets with M10 hex-
agon socket screws.
Tightening torques
M10 39 Nm
Retaining strap 20 Nm
336 527
320
Ø 122
Ø 180
340 431
35

Scania DC13 Specifications

General

Cooling System	Liquid-cooled
Engine Type	Diesel
Displacement	12.7 liters
Fuel System	Common Rail
Aftertreatment	SCR (Selective Catalytic Reduction)
Turbocharging	Variable Geometry Turbocharger (VGT)
