Scania DC13 User Manual

INSTALLATION
MANUAL
© Scania CV AB 2018, Sweden
System overview – Stage V
01:07 Issue 17 en-GB 4
System overview – Stage V

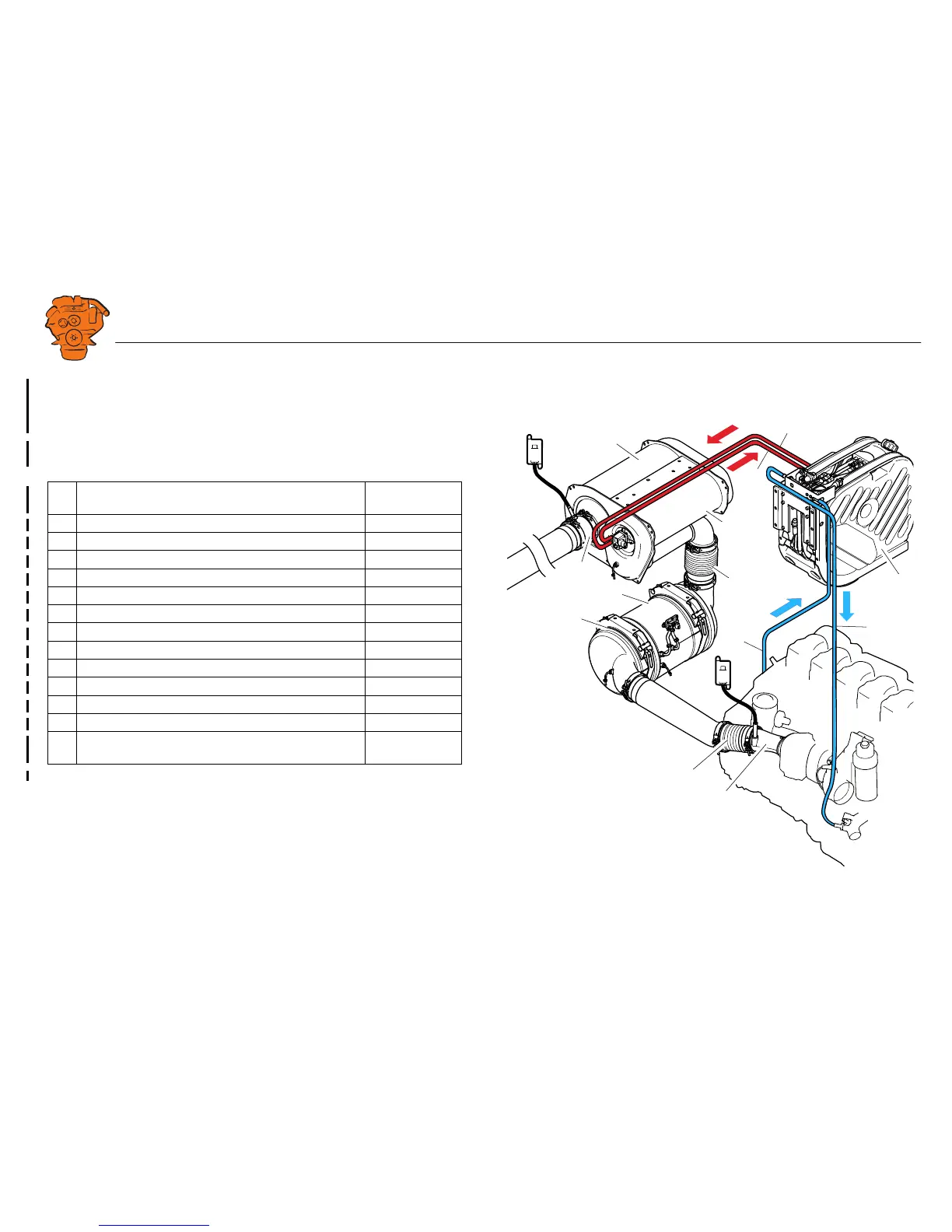

System overview of mechanics
X = the component is always supplied from the factory. O = the component may be
supplied from the factory as an option.
Component Supplied from
the factory
1. Exhaust pipe bend with connection for NO
x
sensor T131. X
1
1. 90° exhaust pipe bend and exhaust brake is available as an option.
2. Exhaust bellows. O
3. Oxidation catalytic converter. X
4. Particulate filter. X
5. Exhaust bellows. O
6. Evaporator. X
7. SCR catalytic converter. X
8. Adapter with connection for NO
x
sensor T115 X
9. Pressure hose for reductant. X
10. Reductant return hose. X
11. Reductant tank. X
12. Coolant hose for heating the reductant tank and pump. -
13. Coolant hose, return from heating the reductant tank and
reductant pump.
-
2
3
4
5
6
7
9
10
13
11
12
1
8
397 337

Scania DC13 Specifications

General

Cooling System	Liquid-cooled
Engine Type	Diesel
Displacement	12.7 liters
Fuel System	Common Rail
Aftertreatment	SCR (Selective Catalytic Reduction)
Turbocharging	Variable Geometry Turbocharger (VGT)
