Reductant tank
01:07 Issue 17 en-GB 42

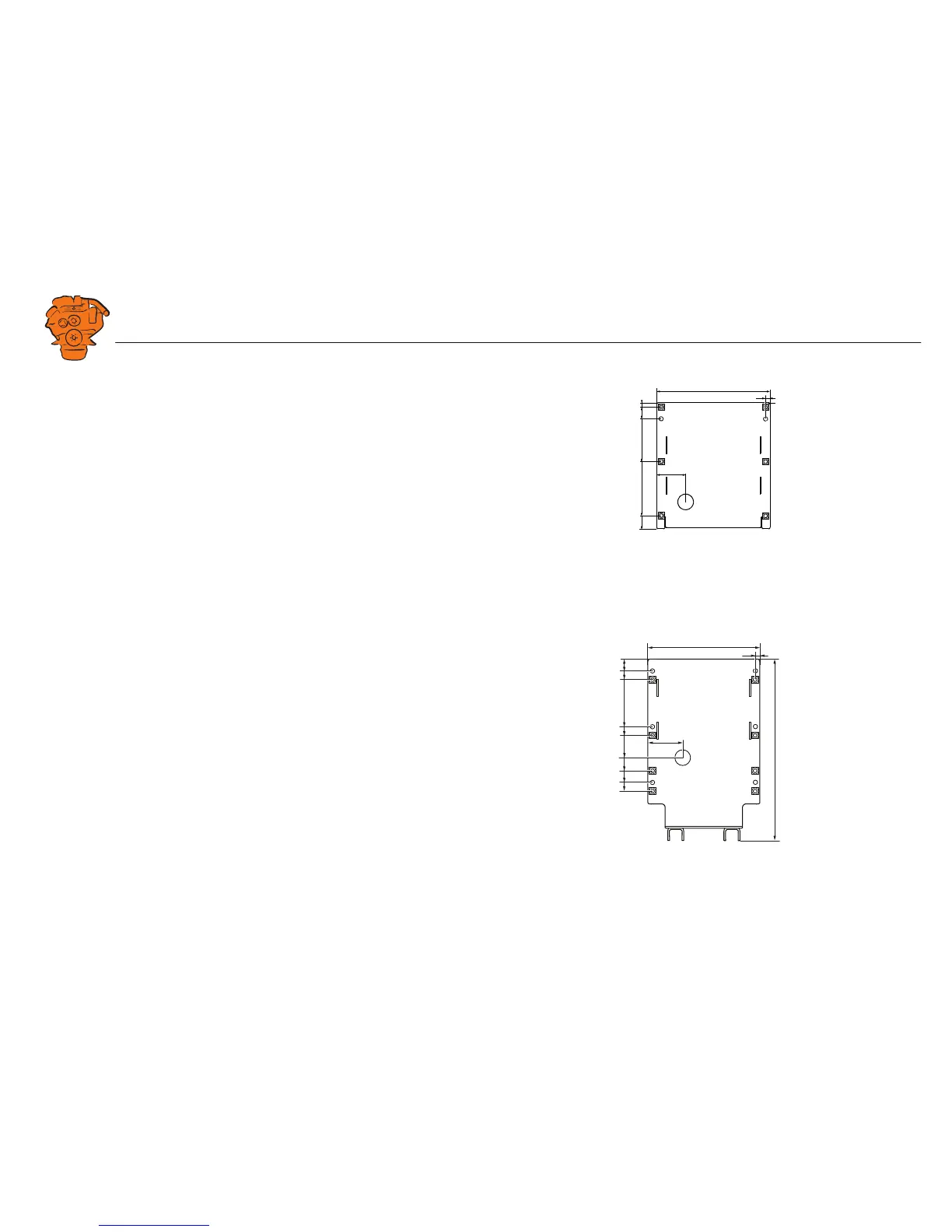

Attaching the 45 litre tank
The 45 litre tank is fitted by means of a bracket at the bottom of the tank. There are
2 methods of fitting the bracket. Either screw on the bracket by screwing M14 screws
into the threaded nuts, or fit the bracket using the 2 holes with a diameter of 14 mm.
Attaching the 63 litre tank
The 63 litre tank is fitted by means of a bracket at the bottom of the tank. There are
2 methods of fitting the bracket. Either screw on the bracket by screwing M14 screws
into the threaded nuts. In this case use at least six of the eight nuts. It also is possible
to fit the bracket using 6 holes with a diameter of 14 mm.
353 440
390
15
55
202
389
434
99,2
2x16
340 430
390
2x631
2x16
459,2
429,2
389,2
343,5
121,4
264,7
234,7
70,2
40,2
