41
Technical Specifications
Operating voltage +12 V
Max. power consumption approx. 7.5 A
Standby power consumption approx. 1 MA
Output power 4 x 20 Watt at 14.4 V, THAD=10 %
R
LP
≥ 4 Ω
Input sensitivity
AUX 2 V / 600 Ω
Wavebands
FM 87.5 - 108 MHz
MW 531 - 1602 kHz
LW 153 - 279 kHz
FM frequency response 30 - 15,000 Hz
CD frequency response 20 - 20,000 Hz
Temperature range -20 to +70 °C
Weight approx. 1.3 kg
Dimensions (installation)
W x H x D (mm) approx. 180 x 50 x 160
Subject to changes!

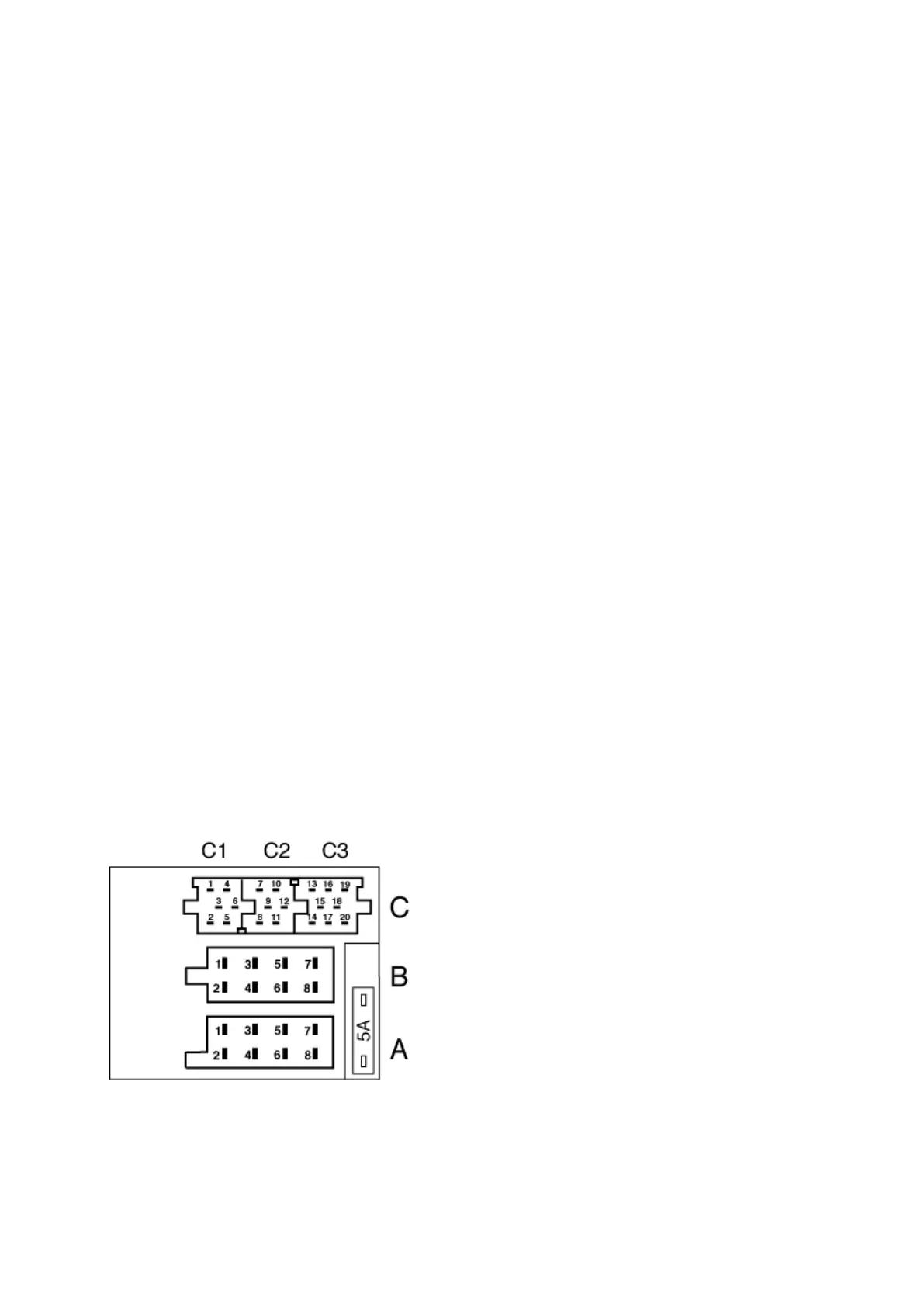

Terminal diagram
