SCANMASKIN 18 - Specifications; Electrical specifications; Mechanical specifications

Scanmaskin 18 – Manual
Chapter 1
- 38 -

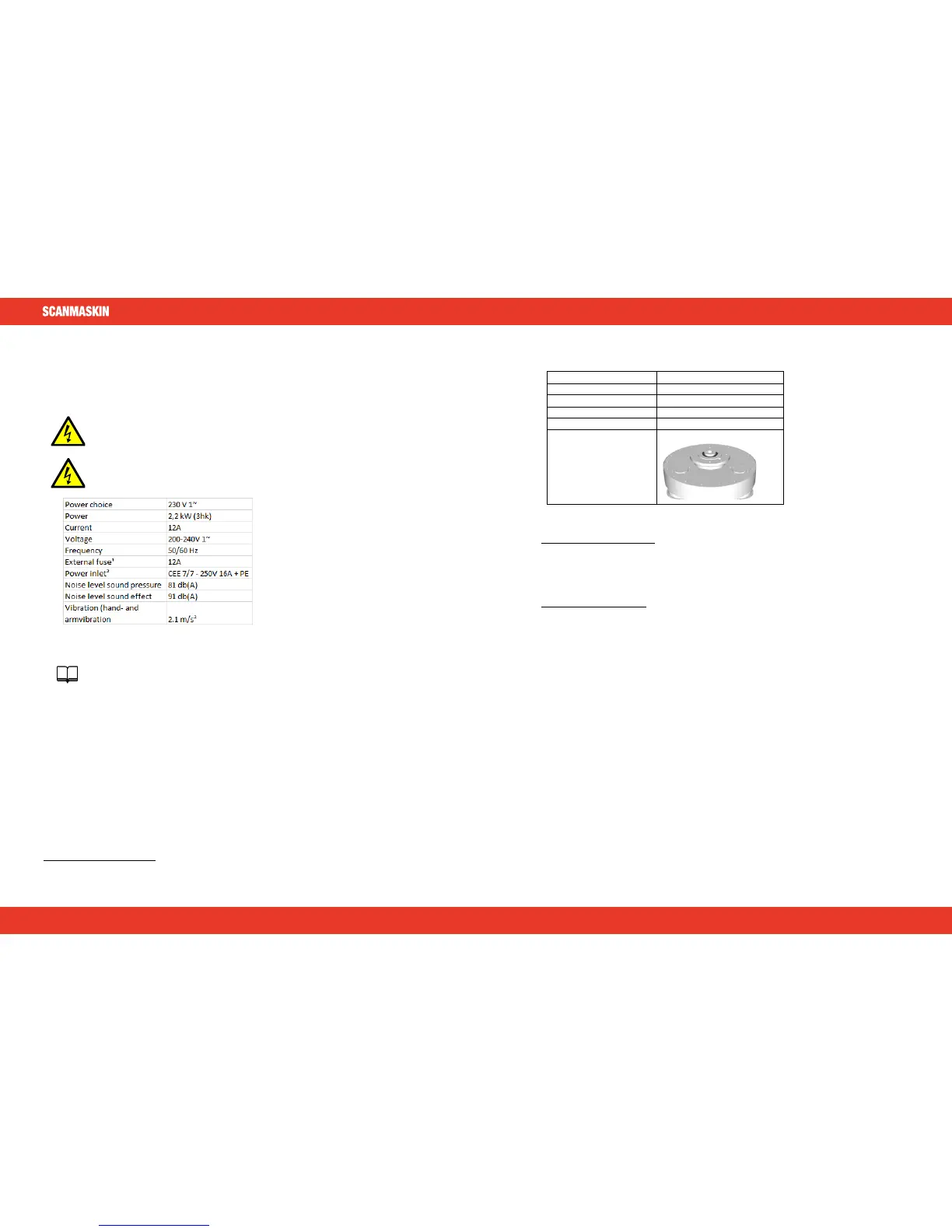

1 Specifications
1.1 Electrical specifications
To find the specifications that apply to your machine, check the information plate on the machine.
Never connect the Scanmaskin 18 to any other voltage or number of phases than described in
this specification.
The power source must be fused according to “External fuse” in this specification; also the
cables used must be marked and rated in accordance with the fuse used. Failure to comply
with the correct fuses may cause fire or injuries.
Table 1-1 Electrical specifications
All models are CE-marked.
If using a generator see “2.6.2 Using a generator”
1
Maximum current for the fuses used in the power source (i.e. the distribution box).
2
This is the standard inlet used. Machines sold outside of EU will be shipped either with a local standard inlet or an adapter.
Scanmaskin 18 – Manual
Chapter 1
- 39 -
1.2 Mechanical specifications
Model
Scanmaskin 18
Grinding diameter
450 mm 18”
Grinding plate diameter
150 mm 6”
Grinding plate speed
300-1100 rpm
Mass
95 kg 210 lbs
Gear barrel
Free running
Table 1-2 Mechanical specifications
Dimensions of Scanmaskin 18
Width 460 mm 18.1”
Height
1030 mm 40.6”
Depth 810 mm 31.9”
Dimensions of shipping box
Width 610 mm 24.0”
Height
1430 mm 56.3”
Depth 810 mm 31.9”
Ambient temperature during operation -20°C to +40°C -4°F to 104°F
Ambient temperature during storage -20°C to +70°C -4°F to 158°F
