5.6.2 Error codes Scanmaskin 18
Table 0-1 Error codes
The following table describes the access for the task.
Abbreviation
Person
O
Machine Operator
E
Electrician
S
Scanmaskin certified service technician
Table 0-2 Access rights for different persons
5
See access table ”Table 0-2”
Code
Description
Cause
Correction
A
5
F1
Over current
§
One of the three phases is missing from the
power supply
§ There is a voltage drop at the power supply
§
Inspect the fuses in the worksites fuse box
§ Inspect cables
§ Measure that it´s full voltage near the machine
§ Make sure that the cable is not to long. If the
cable should be to long, use a cable with higher
rating to a distribution box nearer the machine
O
O
E
E
§
The environmental temperature is too high. When
the temperature is above 40°C (104°F) the
inverter will decrease its maximum output current
§
Inspect the ventilation fans
§ Inspect the filters to the fans
O
O
F2
Over voltage
§ The power supply has got voltage transients
§ Inspect the power source
E
F9
Under voltage
§ One of the three phases is missing from the
power supply
§ There is a voltage drop at the power supply
See F1
F14
Over
temperature
§
The internal temperature in the inverter is above
120°C (248°F). This could be caused by faulty
ventilation in the electrical cabinet.
§
Inspect the ventilation fans
§ Inspect the filters to the fans
§ Contact Scanmaskin Sweden AB
O
O
F35
Internal error
Contact Scanmaskin Sweden AB
F3
Protective earth
failure
§ The cable to the motor has been damaged
§ The motor has been damaged
§ Water have entered the motor
§ Inspect the motor cable
§ Inspect the motor connection
§ Contact Scanmaskin Sweden AB
E
E
F8
System fault
§
Component failure
§ Faulty operation
§
Reset the fault and restart.
§ Contact Scanmaskin Sweden AB
Scanmaskin 18 – Manual
Chapter 5
- 59 -
6 Spare parts

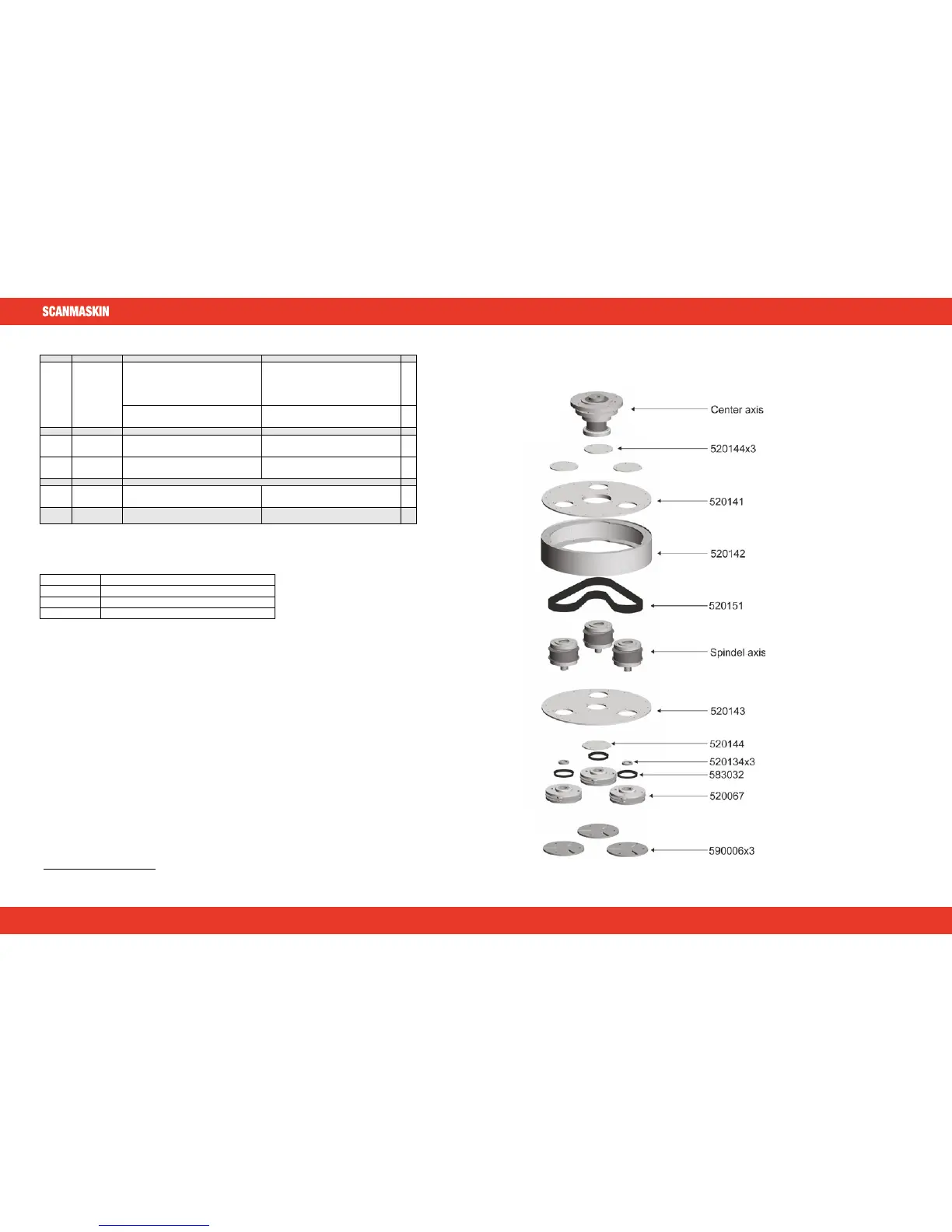

6.1 Gear barrel
