SCANMASKIN 18 - Spindel axis

Scanmaskin 18 – Manual
Chapter 5
- 62 -
CenteraxisSC-18

520040
CENTERAXEL
530018
BEARING6210-RS1,SC-330/450/500/SM-18
910304
CIRCLIPSGA30
520122
UPPERROTATINGBEARINGBOX
570087
V-RINGV-100ASM-18/SC-450/500
520120
CENTRALBEARINGBOX
530060
BEARING32102RS1SC-450/500/SM-18
910308
CIRCLIPSGH90
910304
CIRCLIPSGA30
520152
GEARWHEELCENTRE(BL30-8M-30)SC-450
520154
TAPERLOCKFORCENTREGEARWHEEL(1615-30)SC-450
910304
CIRCLIPSGA30
910202
PARALLELKEY8x7x20
570104
BEARING6206SM-18/SC-450/500/650/700/800/1000
520126
BEARINGBOXSM-18/450/500/650/700/800
Scanmaskin 18 – Manual
Chapter 5
- 63 -

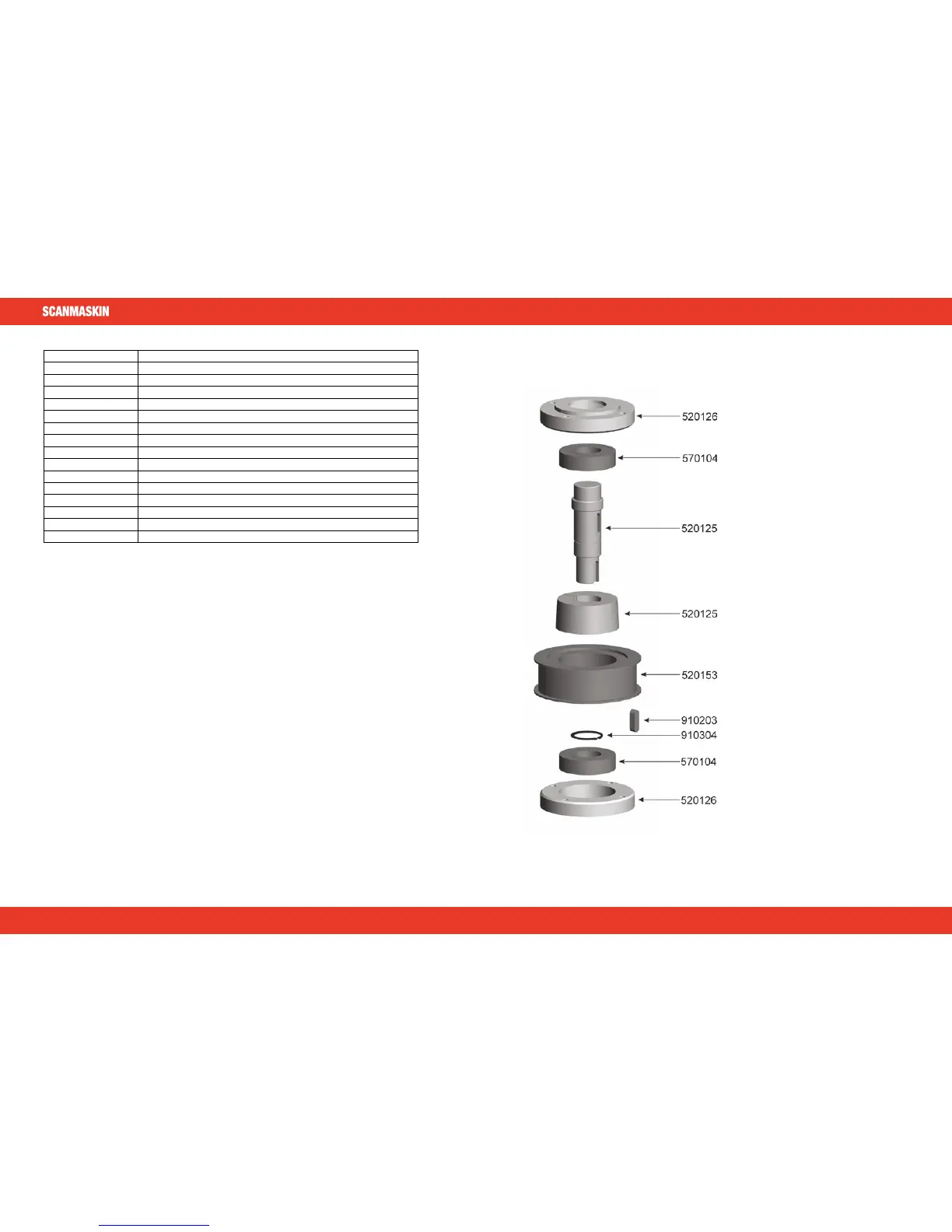

6.3 Spindel axis
62 63
