2.2.d Mounting two bolts on the right side.
Then mount the two bolts M10x16 on the right side (see the figure below at the arrows),
they are tightened loosely with possibility of further adjustment.

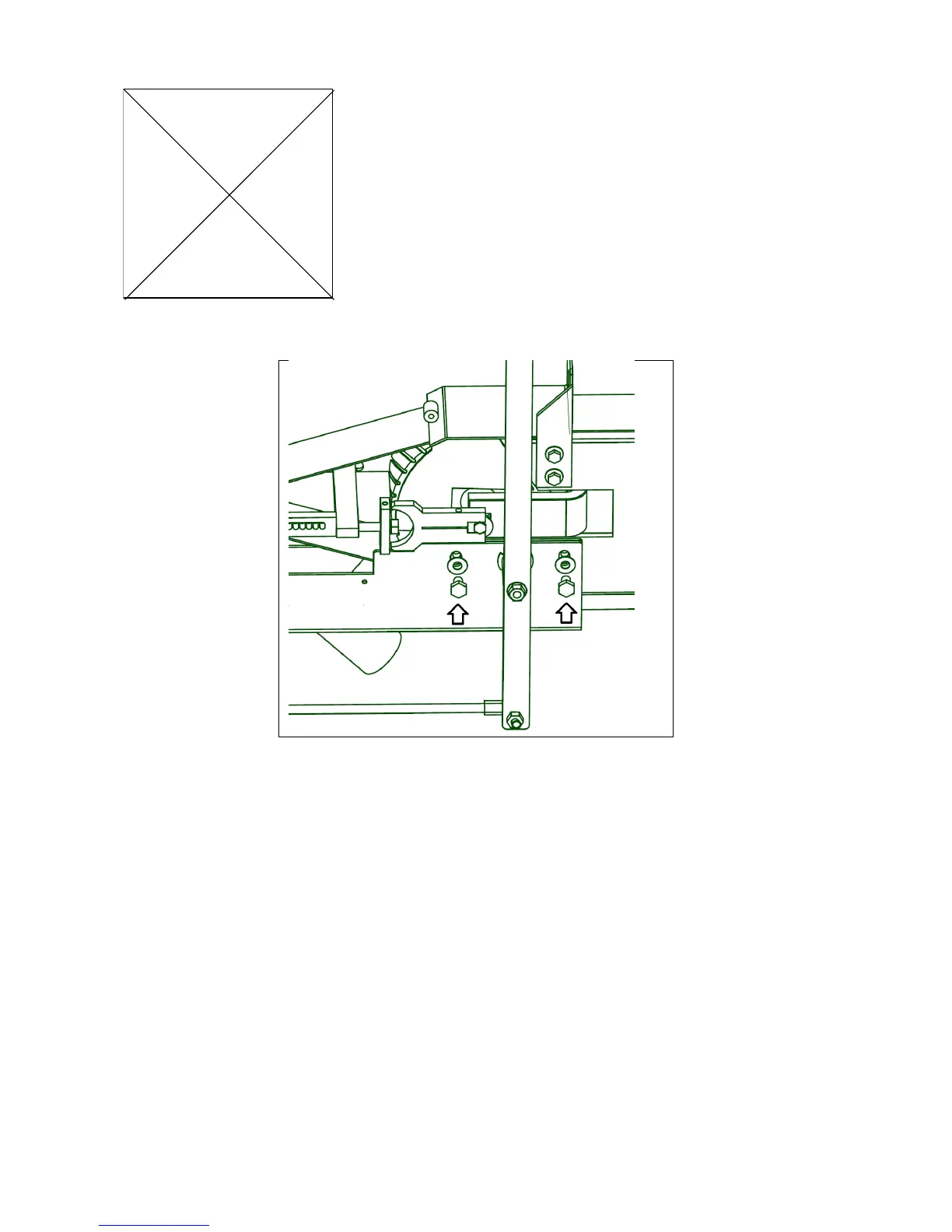

Fig.: 2.2.2 Two screws M10x16 on the right
Belt grinder and aggregate are now positioned horizontally at the top by help of the Spirit
level. The belt grinder can be tilted and the aggregates foot has 4 screws under making it
possible to stabilize and adjust the height. Tighten the nut(s) on the assembling part at the
bottom of the aggregate. Tighten them well! The two bolts on the right side are also
tightened.
