E165 SS Series
Page |
3

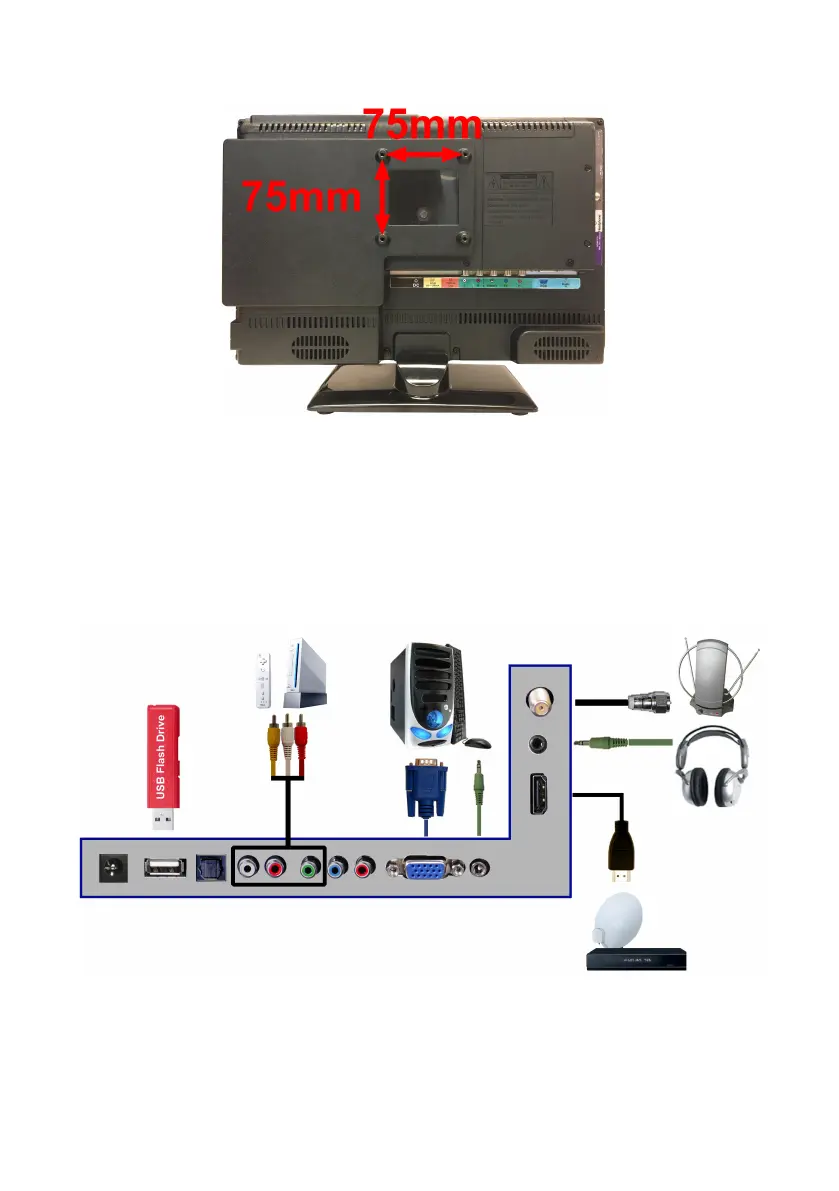

Rear View Mounting Pattern
Mounting Specification: 75mm x 75mm using screw size M4. Length of screw should not exceed
8mm. Please Note: The 8mm length of screw refers to how deep the screw can go inside the
mounting holes. When you’re buying screws, you should add the original 8mm to the thickness of
your mounting plate in order to get the total screw length.
Connecting Your Cables
The following picture offers a suggestion for connecting most of your audio video equipment.
TV Tuner is optional. It may or may not be equipped in your product. Please check with the authorized seller, authorized
distributor or Sceptre Customer Service for further information.
