E246BD-FC / E246BV-FC
Page | 3

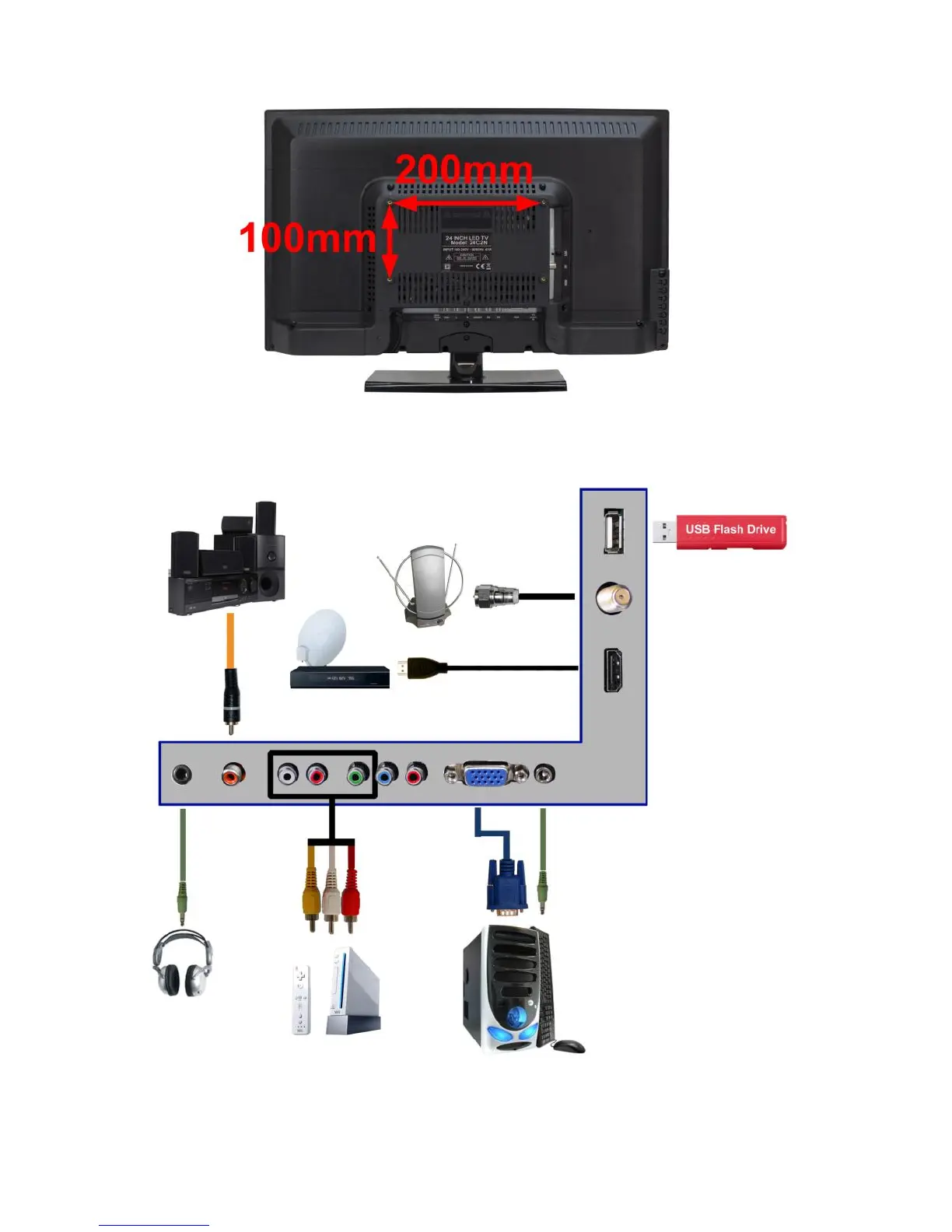

Rear View Mounting Pattern
Specification: 200mm x 100mm using 4 screws (not included) at size M4. The mounting holes are 5mm deep.
Connecting Your Cables
The following picture offers a suggestion for connecting most of your audio video equipment.
TV Tuner is optional. It may or may not be equipped in your product. Please check with the authorized seller, authorized
distributor or Sceptre Customer Service for further information.
