1 General description
DMD 30/35 range of dot-matrix display that can be
used as Position Indicators-, direction- or re-starting
Arrows, or a combination of both. The floor Position
as well as the direction arrows can be displayed as
follows: standing, flashing or scrolling.
The displays are available with one digit (DMD 30/35-
H1/V1), with two digits (DMD 30/35-H2/V2) or with
three digits (DMD 30/35-H3). The H1, H2 and H3 dis-
plays have there connections at the side of the display
(as Illustrated below) and the V1 and V2 displays are
connected from above.
All Displays are configured and adjusted by DIP swit-
ches located on the back of the Display. The indicating
characters/figures, including there functions can also
be configured by a PC using SCHAEFER DMD Config-
Kit and can be changed at any time. Two free-defined
special horizontally rolling texts messages (up to 14
characters) can be included. As from software version
2.6 on the DMD up to four special texts can be con-
figured.
General description | Illustration

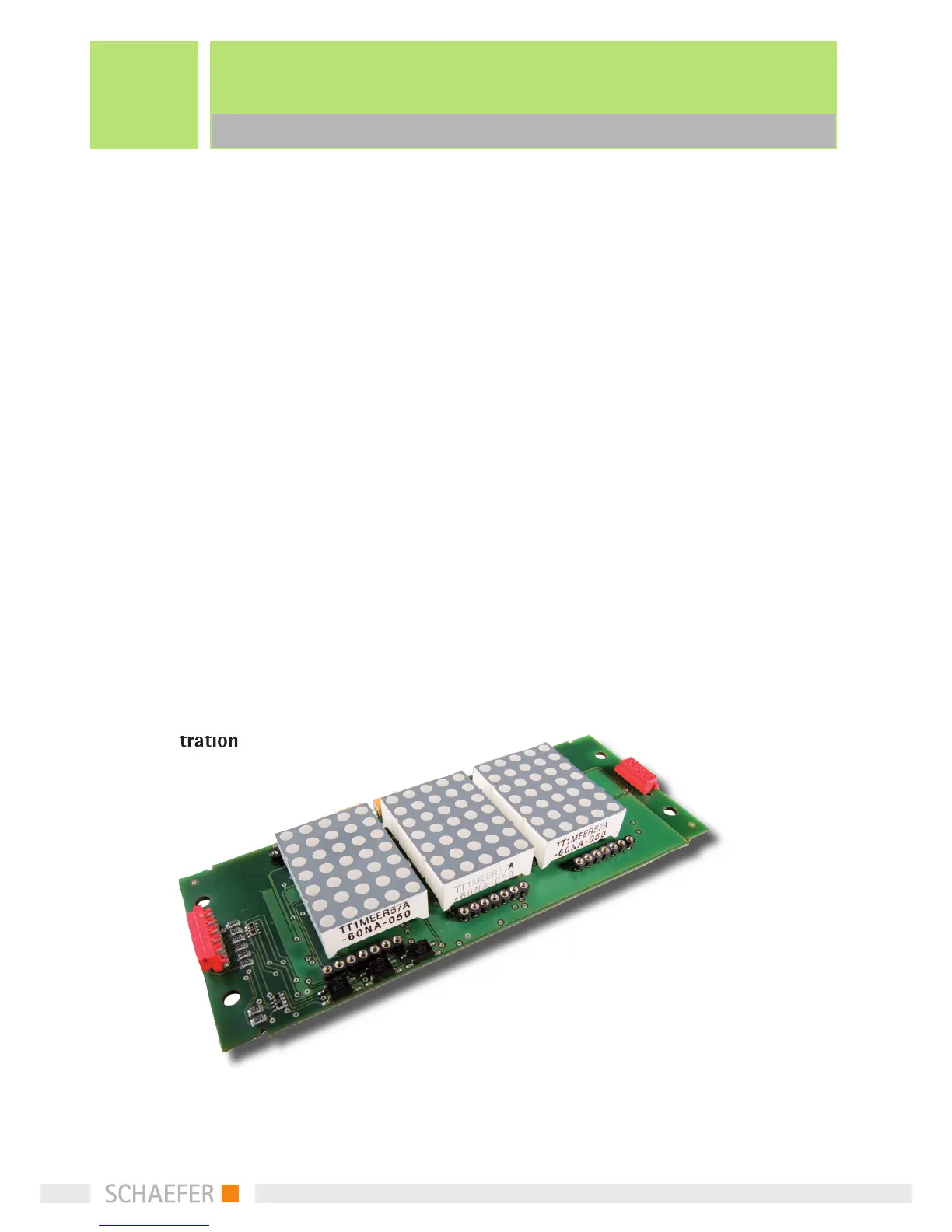

2 Illustration
