Settings
6 Settings
Different settings can be changed on the display by
means of the buttons and respective DIP switches.
The values are changed by the DIP switches and adju-
sted by the buttons e. g. the brightness of the display
can be adjusted as follows:- Switch the Dot Matrix Dip
switch No3 to the on position. Press the Dot Matrix
button until the required brightness is selected. The
setting is saved after the corresponding DIP switch
has been turned off.

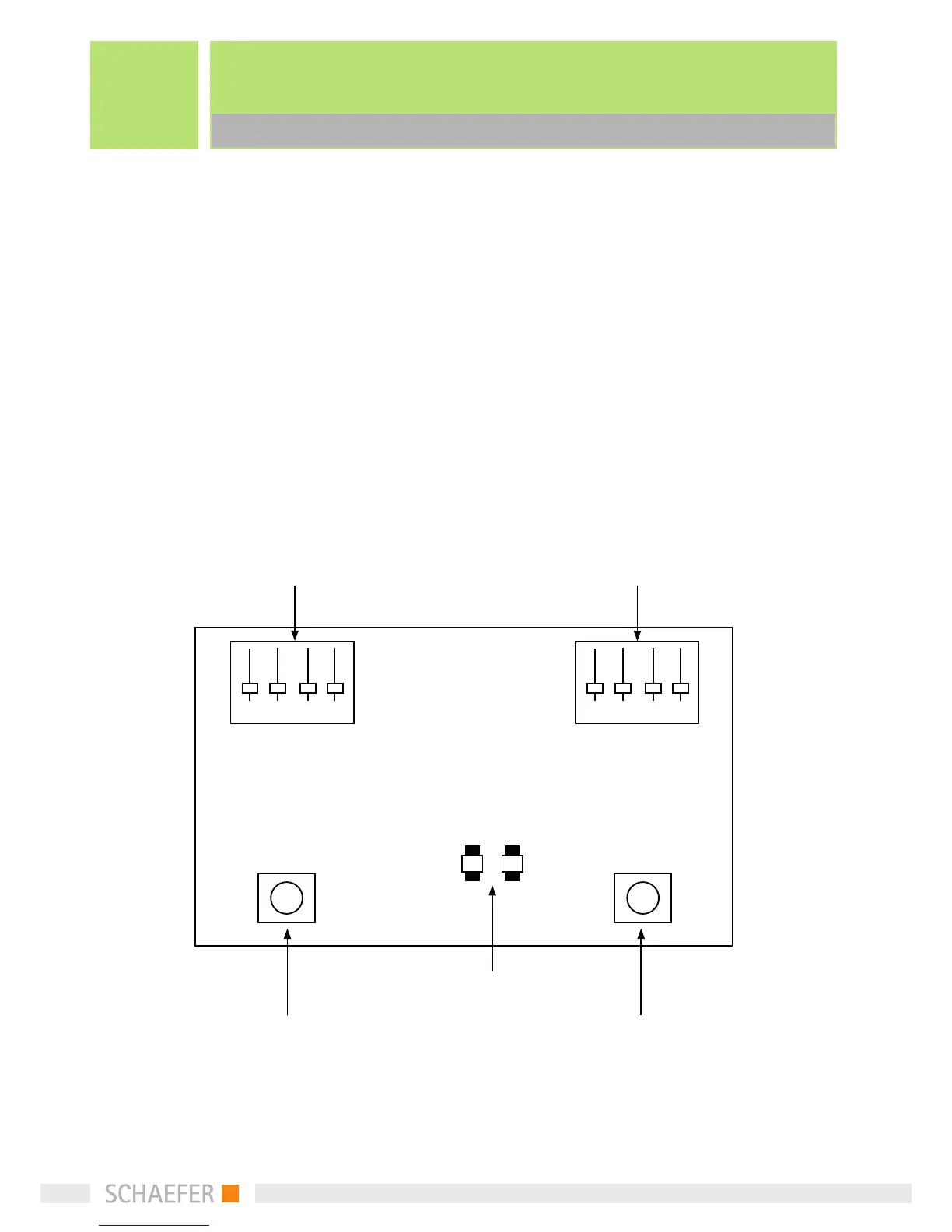

DIP switches
Dot-matrix
DIP switches
Input
Indicator
Dot-Matrix
Button
Input Status
LED
1 2 3 4 1 2 3 4
Input
Button
