Schaeffler Technologies
High precision bearings for combined loads
Relubrication of bearings
If possible, the grease used should be the same as the grease with
which the bearing was supplied.
Relubrication should be carried out with the bearing warm from
operation and rotating slowly.
Before relubrication is carried out, it must be ensured that the lubri-
cant ducts in the adjacent construction do not contain any cleaning
agents, solvents, washing emulsions or other contaminants.
Clean the lubrication nipples, clean or replace the lubricant filters.
Inject grease into all the lubrication nipples until the relubrication
quantity is reached. Rotate one bearing ring during this process
and ensure that old grease can exit the bearing without hindrance.
Before initial operation, it must be ensured that all the lubricant
ducts to the bearing are filled with lubricant.
Old grease

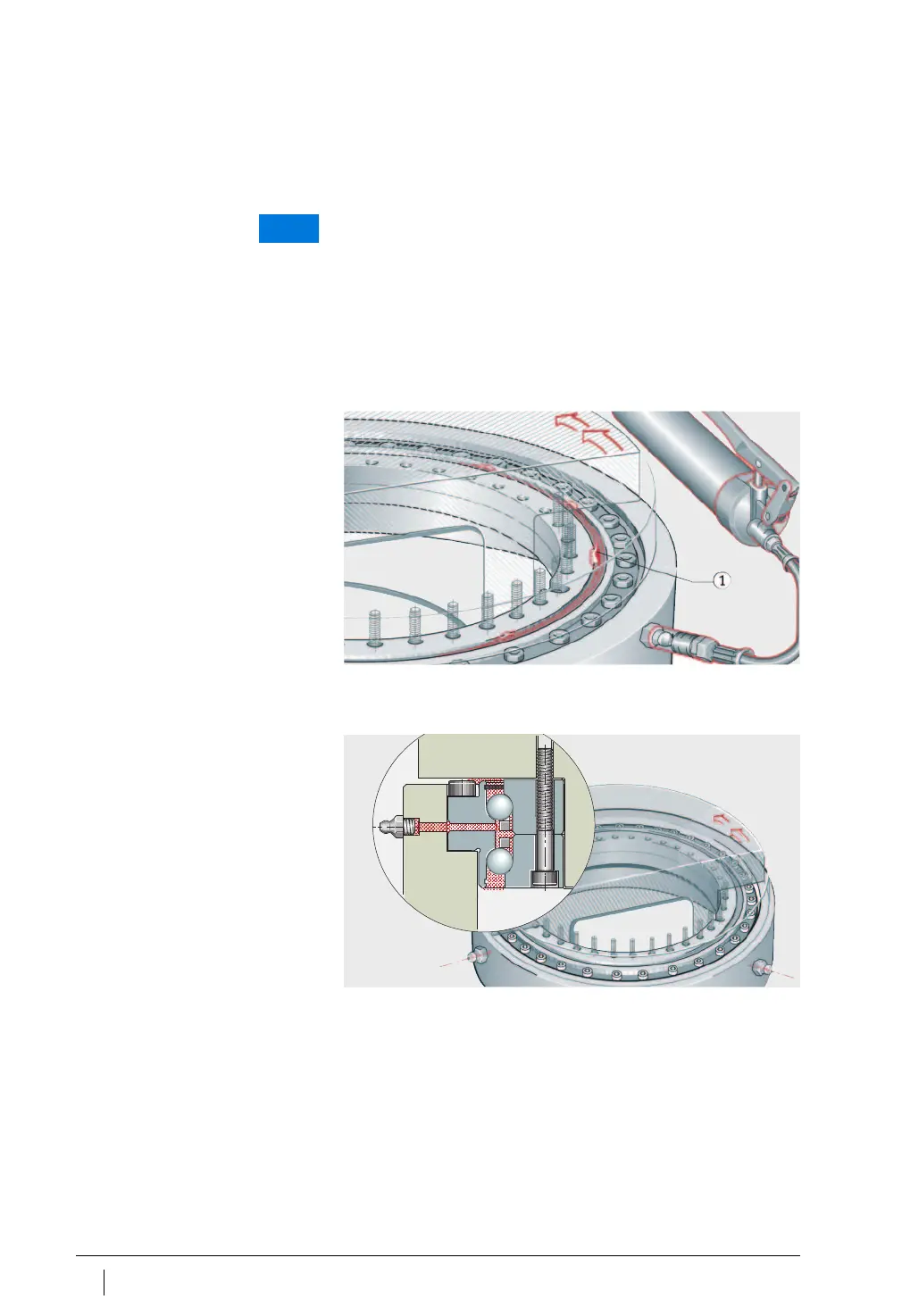

Figure 14
Rotating the bearing ring during
relubrication
Figure 15
Filled lubricant ducts
