External magnetic fields damage the magnetic measurement ring.
Keep the measurement ring away from magnetic sources, to avoid
partial mismeasurements by the system. A field strength of approxi-
mately 70 mT or higher immediately on the coding carries the risk
of damage to the magnetic poles of the measurement ring.
Magnetic dial gauge stands must not be placed directly on the coded
washer (guide value: at least 100 mm distance in air or 10 mm
unalloyed steel).

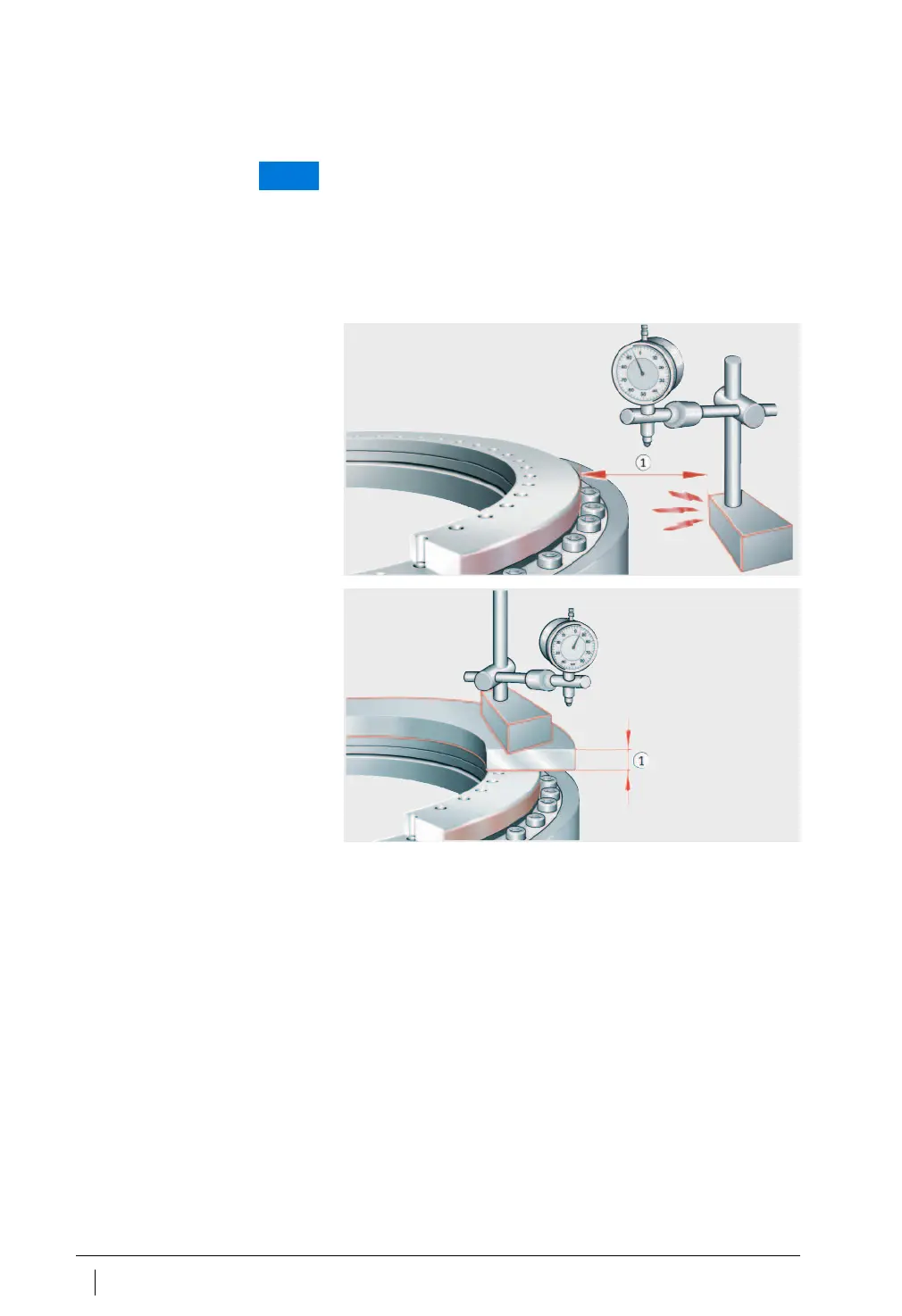

Minimum distance
⬎
100 mm
Figure 1
Minimum distance between
magnetic measurement stand and
magnetic measurement ring
Shielding
⬎
10 mm
Figure 2
Shielding by unalloyed steel
